AXS-2520-04-09
| 制造商 | |
| 描述 | CRYSTAL AND OSCILLATOR TEST & BURN-IN SOCKETS Test Sockets 2.5 x 2.0 x .5 Xtal 4 pad test socket SOCKET 4PAD 2.5X2.0 CRYSTAL |
| 分类 |
商业参数
| 交货时间 | 70 Days | 子类别 | Not Specified |
| 产品类别 | Test Sockets | 标准包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 颜色 | Black | 长度 | 2.5 mm |
| 包装方式 | Bulk | 本体尺寸 | 2.50mm x 2.00mm x 0.55mm |
| 接触镀层 | Gold | 位数 | 4 Pad |
产品信息
| 类型 | Socket, Test and Burn In | 功能 | Precision test socket for 2.5 x2 mm, 4 pad crystal oscillator packages |
| 设备类型 | Oscillator Packages | 适用产品/相关产品 | Crystals, Oscillators |
环境参数
| 工作温度 | - 30 to + 150 C | ||
文档与媒体
相关型号
ABM10-27.000MHZ-E20-T
abracon
Crystal 27MHz 10pF 4-Pin Miniature CSMD T/R Crystal 27MHz ±20ppm (Tol) ±20ppm (Stability) 10pF FUND 100Ohm 4-Pin Miniature CSMD T/R CRYSTAL 27MHZ 10PF SMD Crystals +/-20ppm 27MHZ Crystal 27MHz ?20ppm (Tol) ?20ppm (Stability) 10pF FUND 100Ohm 4-Pin Miniature CSMD T/R Frequency Tole

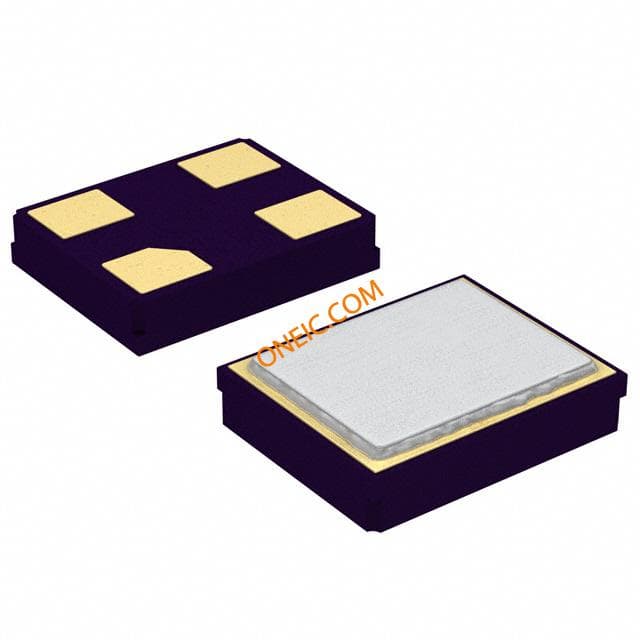

ABM10-16.384MHZ-E20-T
