N2526-7003-UG
| 制造商 | 3M Company |
| 描述 | CONN HEADER 26POS STR GOLD T/H |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 26 | 接触长度 - 配合 | 0.243" (6.17mm) |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 加载位置数 | All | ||
相关型号
89126-0103
3m interconnect solutions
Conn IDC Connector SKT 26 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 26 POS IDC W/STR REL Headers & Wire Housings 26P IDC SOCKET SOCKET, IDC, STRAIN, 26WAY WIRE TO BOARD, RECEPTACLE, 26POS, 2ROW StrainRelief;for26PosIDCRibbonCableSocket;0.100Inch;0.5InchPitch;CenterBump
5126-B7A2PL
3m interconnect solutions
Conn Socket Strip SKT 26 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Centerbump Polarization with Right Angle Solder Tails CONN SOCKET 26POS R/A .100" 3M 2.54mm 26 Way 2 Row Right Angle PCB Socket Through Hole Socket Strip Headers & Wire Housings 26P R/A PLRZD SKT SOCKET, PCB, RIGHT ANGLE, 26WAY 26WR/ABOARDMOUNTSOCKET 3M 5100 系列 2行 26路 直角 2.54mm节距 通孔 印刷电路板插座, 插座板

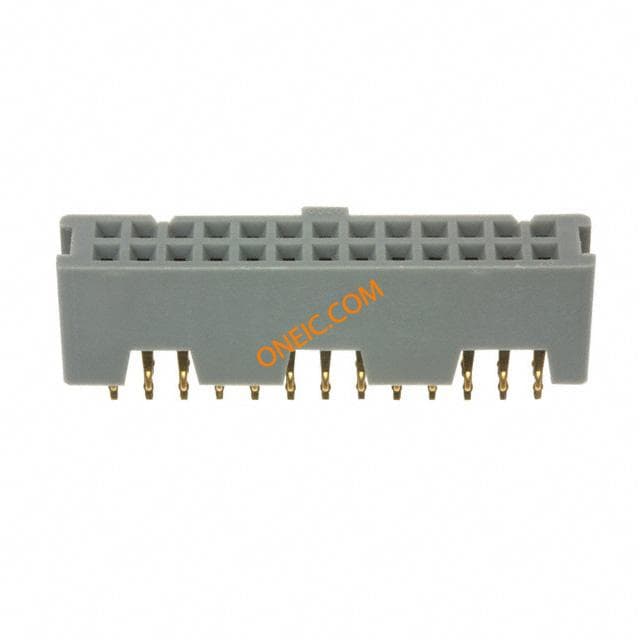

8526-4500PL
