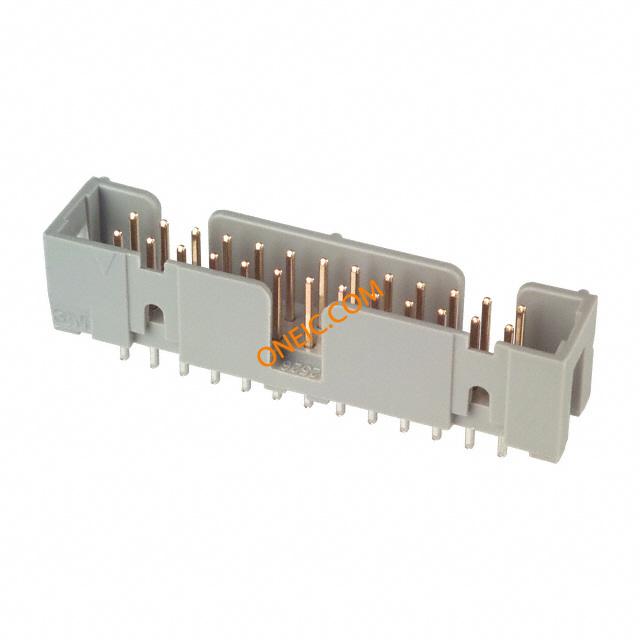

N2526-6002-RB

制造商	3M Company
描述	CONN HEADER 26 POS STRGHT GOLD Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;2;Black;0.38in.;26
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

392

电气参数

最大额定电流

2 A

机械参数

颜色	Black	深度	8.59 mm
间距	0.100" (2.54mm)	高度	9.91 mm
包装方式	Bulk	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Male Pin
外壳颜色	Black	安装类型	Through Hole
连接器类型	Header, Shrouded	接触镀层	Gold
安装样式	Through Hole	排数	2
触头材料	Copper Alloy	总长度	40.34 mm
触点数	2	位数	26
接触长度 - 配合	0.243" (6.17mm)	接触镀层厚度	30µin (0.76µm)

产品信息

类型	Shrouded Header	连接器性别	HDR
加载位置数	All

环境参数

工作温度

-55C to 105C
