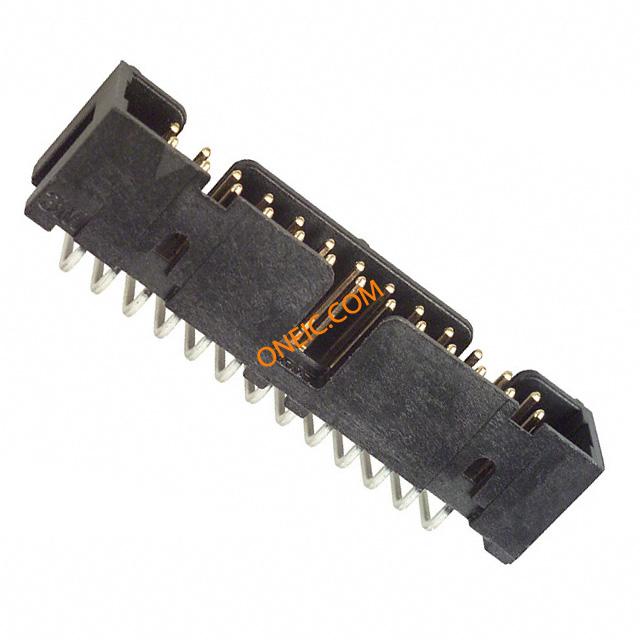

N2526-5002-RB
| 制造商 | 3M Company |
| 描述 | CONN HEADER 26 POS RT ANGLE GOLD N2526-5002-RB Header,4-Wall;CopperAlloy;200uin.60/40Tin/Lead;2;Black;0.38in.;26 |
| 分类 |
商业参数
| 标准包装数量 | 392 | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 26 | 接触长度 - 配合 | 0.243" (6.17mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 加载位置数 | All | ||
