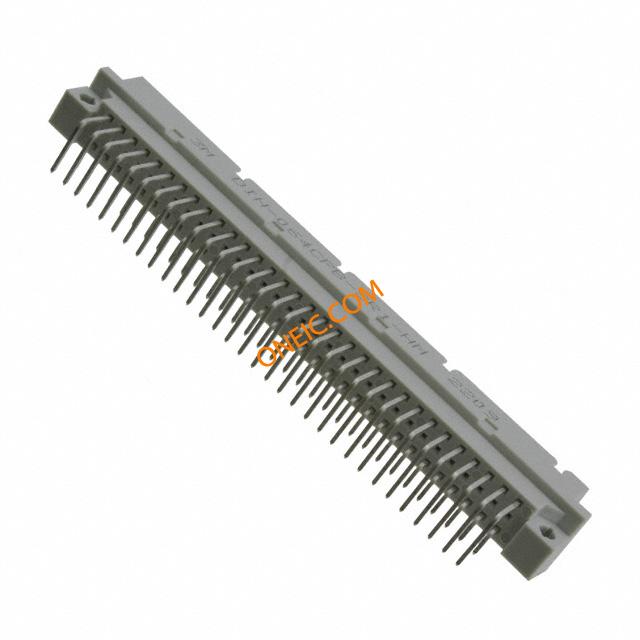

DIN-064CPB-SR1-HM
| 制造商 | 3M Company |
| 描述 | Conn DIN 41612 HDR 64 POS 2.54mm Solder RA Thru-Hole CONN DIN PLUG 64POS R/A GOLD DIN 41612 Connectors 64 R/A PLUG DIN 41612 |
| 分类 |
商业参数
| 零件号别名 | 05111994233 80001222415 | 产品类别 | DIN 41612 Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 100 V | 最大额定电流 | 3A |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 间距 | 2.54 mm | 包装方式 | Bulk |
| 端接方式 | Solder | 尾部长度 | 2.75 mm |
| 安装类型 | Through Hole | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 端接样式 | Solder Tail | 第一触头极性 | Male |
| 触点数 | 64 | 位数 | 96 |
| 绝缘材料 - 材质 | Polybutylene Terephthalate (PBT), Glass Filled | 接触镀层厚度 | 3µin (0.08µm) |
产品信息
| 类型 | DIN 41612 | 样式 | C |
| 系列 | DIN | 产品子类型 | Plugs |
| 加载位置数 | 64 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
