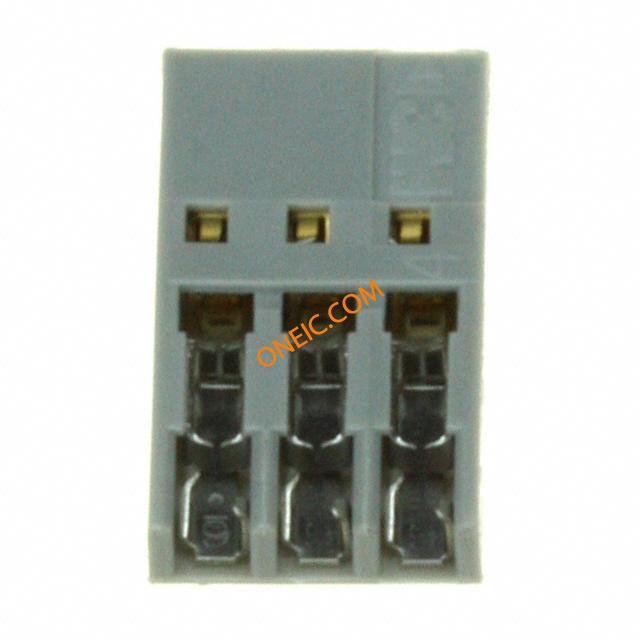

CHG-1003-001010-KCP

点击放大查看

CHG-1003-001010-KCP

制造商
3M Company
描述Conn IDC Connector SKT 3 POS 2.54mm Crimp ST Cable Mount .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 3POS 28-26 AWG Headers & Wire Housings 3P 1 ROW IDC SOCKET 26 AND 28 AWG
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名05400762705 80610417208产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS CompliantRoHS合规（认证）Yes

机械参数

颜色Gray间距2.54 mm
重量1 lb包装方式Bulk
导线类型Discrete or Ribbon Cable导线线规26-28 AWG
端接方式Crimp触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold Over Nickel安装样式Cable
排数1电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数3位数3
接触镀层厚度30µin (0.76µm)

产品信息

类型IDC Connector连接器性别SKT
系列CHG产品特性Closed End
产品子类型Receptacles / Sockets - Housings
