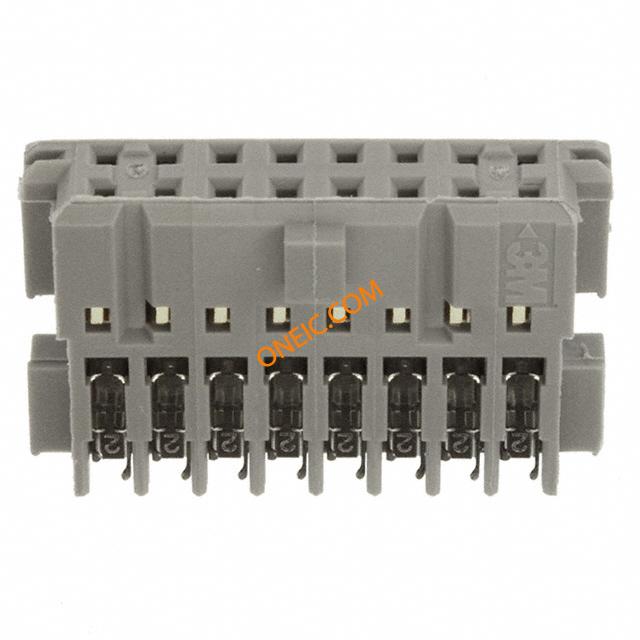

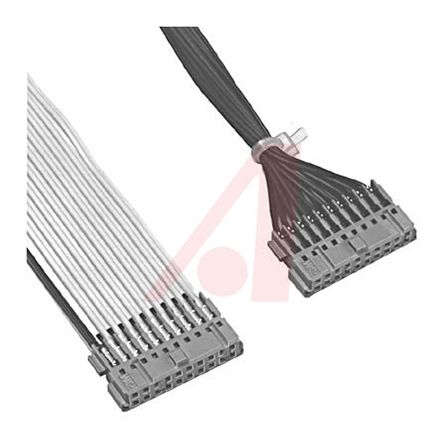

CHG-2016-J01010-KEP
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 16P PLRZD IDC SOCKET .100" Ã .100" Polarized Wiremount, 2 row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 16POS 24-22 AWG POLARIZED WIREMOUNT SOCKET;GOLD WIPE AREA;22/24AWG;16 CONTACT Conn;Rect;Socket;Wiremnt;0.1inPitch;16Pos;2Row;24-22AWG;IDC;CHGSer;Polar 3M CHG 系列 2行 16路 2.54mm节距 母 IDC 连接器 , 电缆安装 |
| 分类 |
商业参数
| 零件号别名 | 05400762725 80610417406 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN41612 |
| 认证机构 | cUL,UL | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 额定电压 | 500 V 交流 | 最大额定电流 | 2A |
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 重量 | 1 lb | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 22-24 AWG |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDC | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | CopperAlloy | 壳体材料 | 玻璃纤维填充 PET |
| 总长度 | 0.98" | 主要材料 | Rectangular |
| 端接排数 | IDC | 电缆端接方式 | IDC |
| 插针孔直径 | 0.1" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 16 |
| 介电材料 | PBT | 绝缘直径 | 0.054" |
| 位数 | 16 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ribbon Cable | 系列 | CHG |
| 产品特性 | Closed End, Polarizing Key | 制造商全称 | CHGSeries |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | -55to+105°C | ||
