点击放大查看

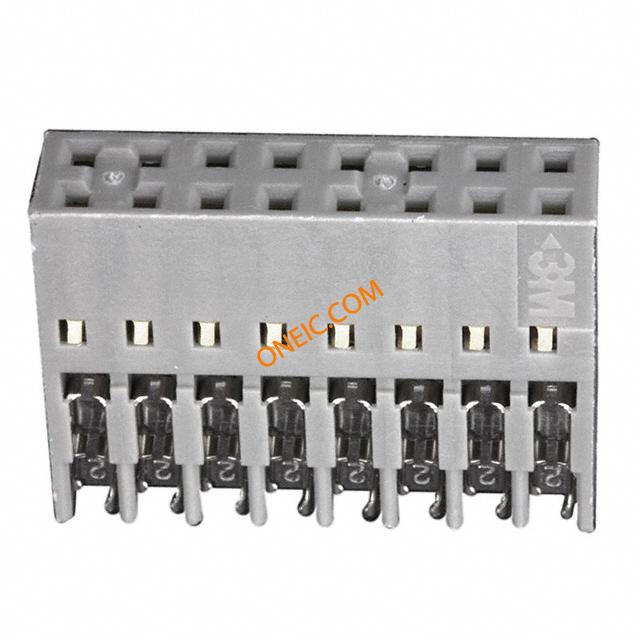

CHG-2016-001010-KEP
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 16 POS 2.54MM HOUSING SKT .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 16POS 24-22 AWG |
| 分类 |
商业参数
| 零件号别名 | 05400737520 80610192710 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 24-22 | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 安装类型 | Vertical |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 安装样式 | Free Hanging | 排数 | 2 |
| 触头材料 | Copper Alloy | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 16 | 位数 | 16 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 系列 | CHG |
| 产品特性 | Closed End | 产品子类型 | Receptacles / Sockets - Housings |
