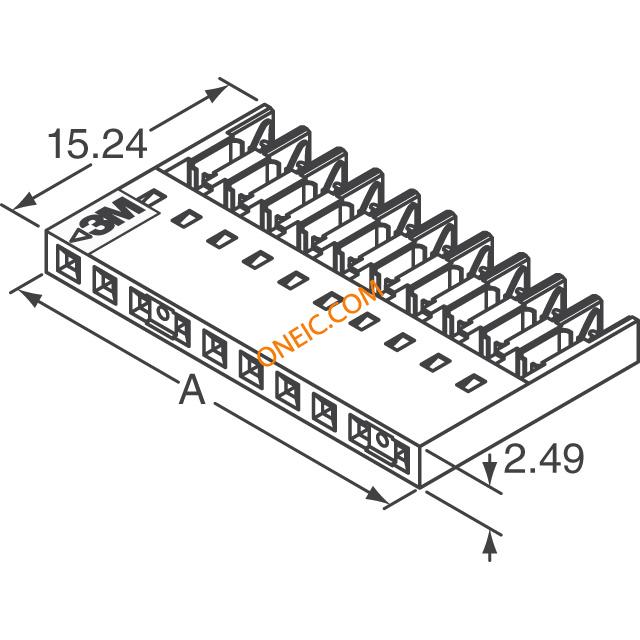

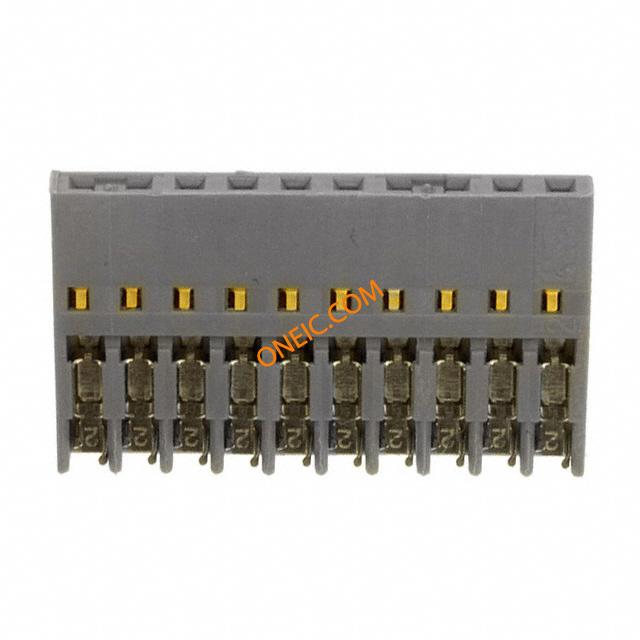

CHG-1010-001010-KEP

点击放大查看

CHG-1010-001010-KEP

制造商
3M Company
描述Headers & Wire Housings 10P 1 ROW IDC SOCKET 22 AND 24 AWG .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 10POS 24-22 AWG socket,wiremount,.1"pitch,GoldWipearea,22AND24AWG,10CONTACT
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装数量100

合规参数

RoHSLead free / RoHS Compliant标准MIL-G-45204,QQ-N-290
认证机构cUL,ULRoHS合规（认证）Yes
材料阻燃等级UL94V-0

电气参数

最大额定电流2A

机械参数

颜色Gray间距0.100" (2.54mm)
包装方式Bulk导线类型Discrete or Ribbon Cable
导线线规22-24 AWG端接方式IDC
触头类型Female Socket安装类型Free Hanging (In-Line)
行程角度Straight连接器类型Receptacle
接触镀层Gold排数1
触头材料CopperAlloy总长度1.025"
主要材料Wiremount电缆端接方式IDC
插针孔直径0.1"触点数10
介电材料PBT绝缘直径0.054"
位数10接触镀层厚度30µin (0.76µm)

产品信息

类型CableSocket产品特性Closed End
制造商全称CHGSeries

环境参数

工作温度-55to+105°C

相关型号

929400-01-10-RK

929400-01-10-RK

3M Electronic Solutions Division

Headers & Wire Housings .100/.295 10 PIN HDR STR .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 10POS

¥2.4024
详情
3624-41

3624-41

3M Electronic Solutions Division

Bench Top Tools CHG ASSEMBLY HEAD Assembly Heads, Applicators and Termination devices TOOL HEAD ASSY 28-22AWG 1&2ROW AssemblyHead

¥5370.0280
详情
929647-03-10-I

929647-03-10-I

3m interconnect solutions

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 10POS

¥6.4600
详情
暂无图片

2310-5111-TG

3M Electronic Solutions Division

Headers & Wire Housings PINSTRIP HDR 10CNT LEN .230 TAIL .120 CONN HEADER 10POS R/A .230" GOLD

¥2.6044
详情

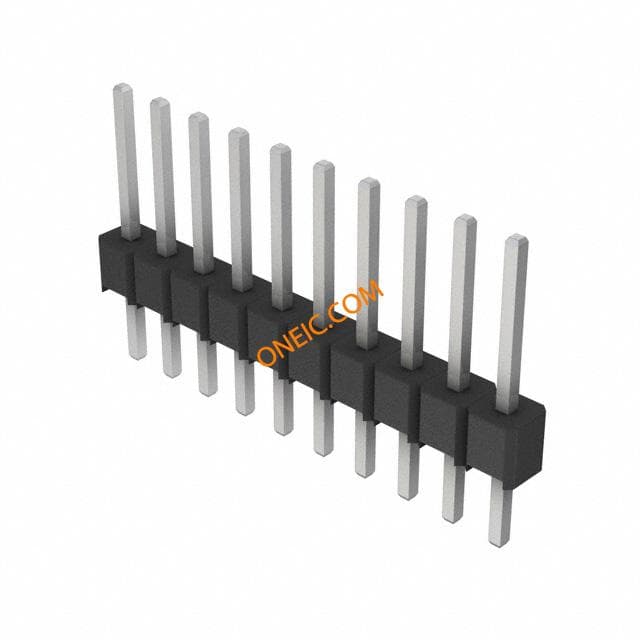

929400-01-10

929400-01-10

3m interconnect solutions

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 10POS Headers & Wire Housings 10P STRT 1 ROW TIN

¥2.9172
详情
929550-01-10-EU

929550-01-10-EU

3m interconnect solutions

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100", .295" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL R/A 10POS

¥8.0437
详情
929647-02-10-I

929647-02-10-I

3m interconnect solutions

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 SNGL STR 10POS

¥6.6572
详情
3435-0

3435-0

3M Electronic Solutions Division

ヘッダ & ワイヤハウジング KEYING PLUG .100" × .100" Wiremount for .050" Pitch Cable CONN SOCKET KEYING PLUG Accessory; Plug; Wiremount; 5 in.; 4.5 in.; 5.2 in. Headers & Wire Housings KEYING PLUG KEYING PLUG, CONNECTOR ACCESSORY Accessory,Plug;Wiremount;5in.;4.5in.;5.2in.

¥0.7616
详情

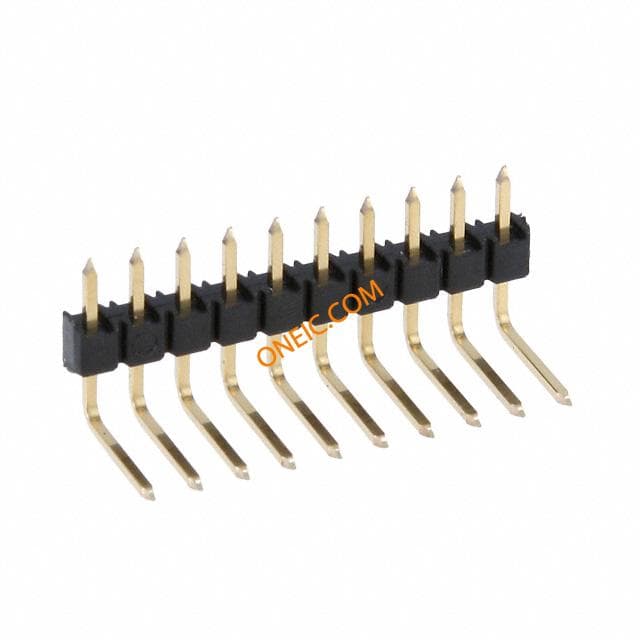

929550-01-10-I
