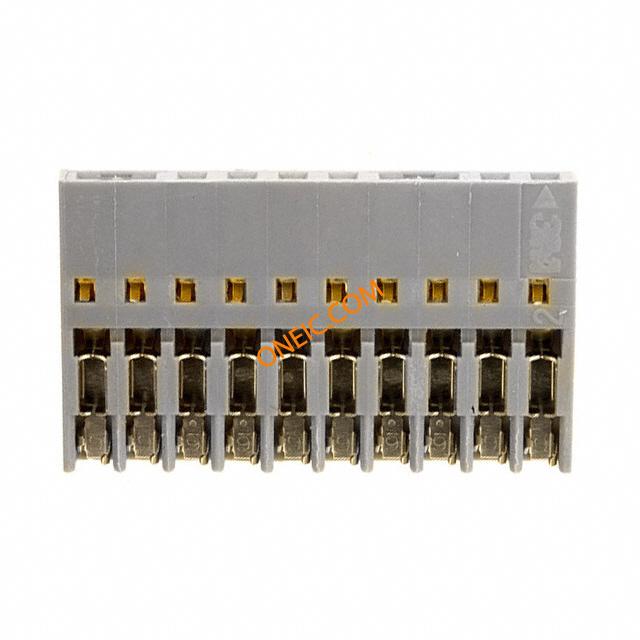

CHG-1010-001010-KCP
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings 10P 1 ROW IDC SOCKET 26 AND 28 AWG .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 10POS 28-26 AWG |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 26-28 AWG | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 排数 | 1 |
| 电缆端接方式 | IDC | 位数 | 10 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 产品特性 | Closed End | ||
