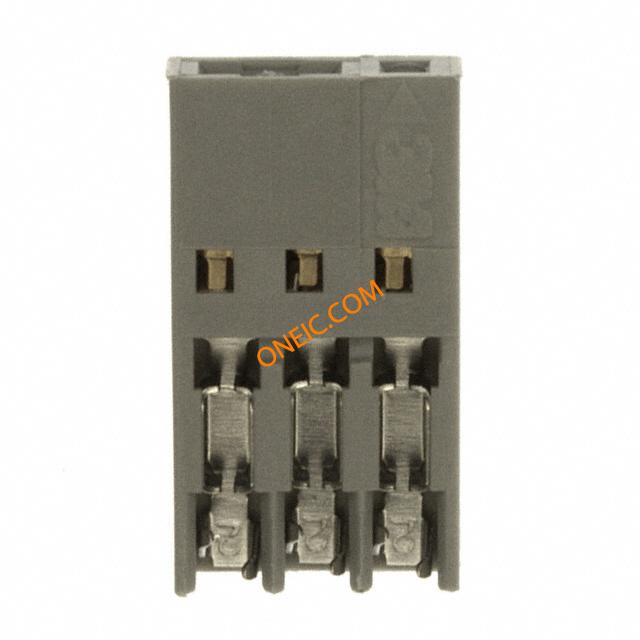

CHG-1003-001010-KEP
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 3P 1 ROW IDC SOCKET 22 AND 24 AWG .100" for .100" Pak 100 Wiremount, Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 3POS 24-22 AWG Headers & Wire Housings 3P 1 ROW IDC SOCKET 22 AND 24 AWG socket,wiremount,.1"pitch,GoldWipearea,22AND24AWG,3CONTACT |
| 分类 |
商业参数
| 零件号别名 | 05400767002 80610427058 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | MIL-G-45204,QQ-N-290 |
| 认证机构 | cUL,UL | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 2A | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 22-24 AWG | 端接方式 | IDC |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 1 | 触头材料 | CopperAlloy |
| 总长度 | 0.325" | 主要材料 | Wiremount |
| 电缆端接方式 | IDC | 插针孔直径 | 0.1" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 介电材料 | PBT |
| 绝缘直径 | 0.054" | 位数 | 3 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Ribbon Cable | 系列 | CHG |
| 产品特性 | Closed End | 制造商全称 | CHGSeries |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 工作温度 | -55to+105°C | ||
