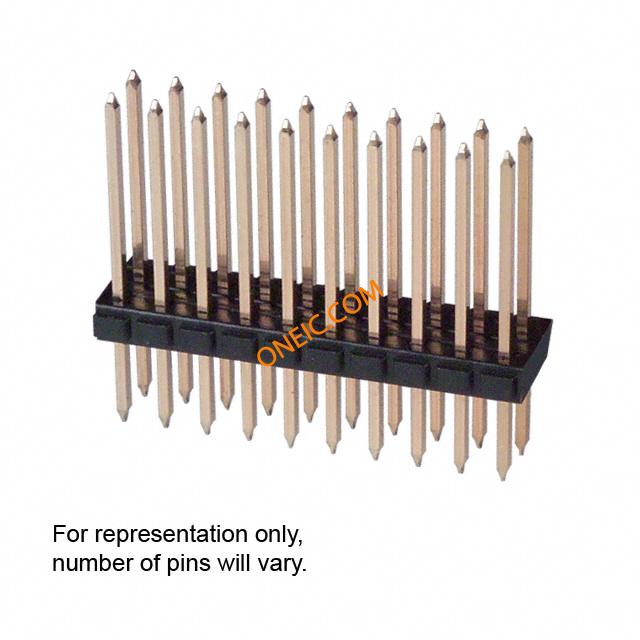

点击放大查看
929665-03-10-I
| 制造商 | 3M Company |
| 描述 | Headers & Wire Housings .100 STR 10 PIN .235-.410 .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER .100 DUAL STR 20POS |
| 分类 |
商业参数
| 其他名称 | 929665-03-10 | 标准包装数量 | 1 |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 20 | 接触长度 - 配合 | 0.235" (5.97mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 加载位置数 | All | ||
