点击放大查看

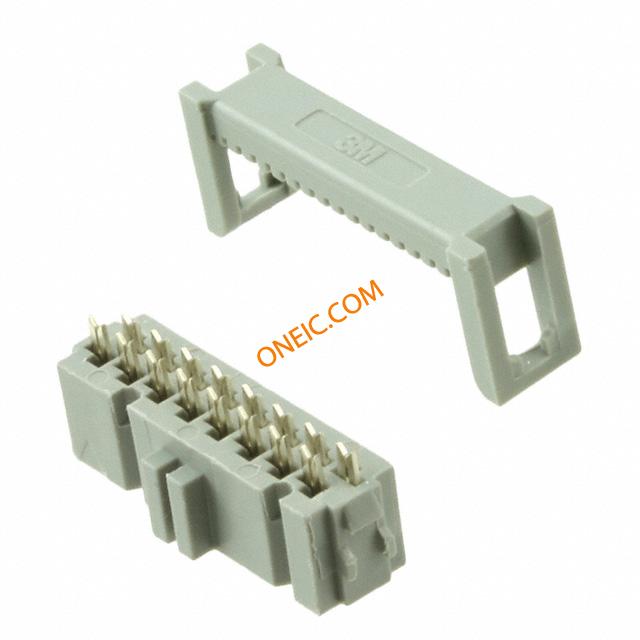

89116-0103

制造商	3M Company
描述	ヘッダ & ワイヤハウジング 8916 KUT 24 MMX55 M .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 16 POS IDC W/STR REL Headers & Wire Housings 8916 KUT 24 MMX55 M WIRE TO BOARD, RECEPTACLE, 16POS, 2ROW StrainRelief;for16PosIDCRibbonCableSocket;0.100Inch;0.5InchPitch;CenterBump
分类	硬件与散热解决方案机架配件机架配件

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400754467 80610706527	产品类别	Headers & Wire Housings
标准包装数量	500	工厂包装数量	500

合规参数

RoHS

RoHS Compliant

海关税号

85369010

电气参数

量程（°/s）

:3M - 891 Series

最大额定电流

1 A

机械参数

颜色	Gray	间距	0.100" (2.54mm)
重量	5 lbs	包装方式	Bulk
导线类型	Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold	安装样式	Cable
排数	2	触头材料	Phosphor Bronze
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	16
接触件端接	:IDC / IDT	位数	16
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Ribbon Cable	连接器性别	:Receptacle
系列	891	产品特性	Feed Through; Polarizing Key, Strain Relief
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

746299.pdf
