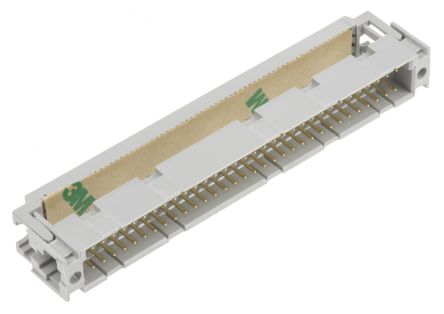

3695-0000

点击放大查看

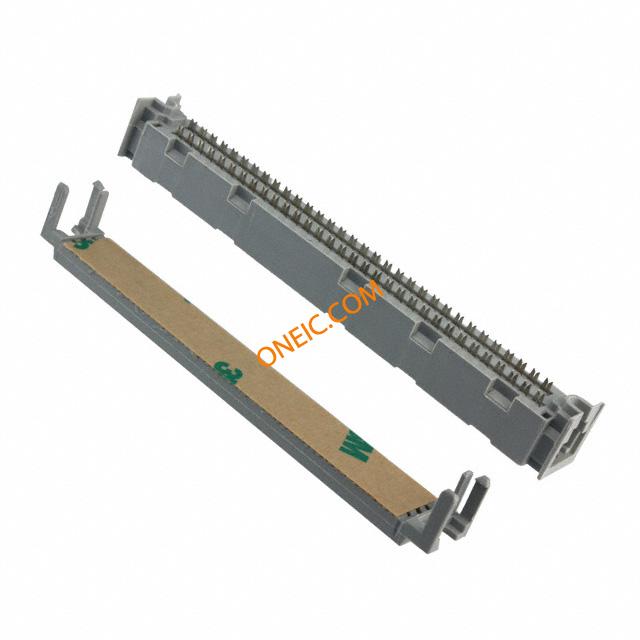

3695-0000

制造商
3M Company
描述DIN 41612 Connectors 64P IDC EUROPLUG FLG HIGH DENSITY EUROPLUG IDC VERSION TYPE C .100" × .200" IDC Version, Type C (Rows A & C Filled) CONN PLUG 64POS IDC .100X.200 64 way DIN41612 style cable plug,Size 96 Conn DIN 41612 PL 64 POS 2.54mm IDT RA Cable Mount PLUG, IDC, DIN41612, 64WAY Conn;TermBlk;Europlug;1A;500VDC;26&28AWGStrandedorSolid 3M Europlug 系列 64 路 2.54mm 节距, 2 行 a/c, 直角 DIN 41612 插头, IDT端接
分类
连接器解决方案背板连接器DIN 41612
对参数有疑问？问 AI 助手

商业参数

最小起订量50单位包装50
零件号别名00189584120 DE610004629产品类别DIN 41612 Connectors
标准包装数量50工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
汽车级NO无铅定义RoHS-conform
认证机构UL E68080RoHS合规（认证）Yes
材料阻燃等级UL94 V-0

电气参数

量程（°/s）:3M - 3695 Series额定电压1000V
击穿电压:1kV最大额定电流1A
绝缘电阻:1000Gohm触点额定电流:1A

机械参数

间距0.100" (2.54mm)重量9.492801 oz
材料（通用）:Glass Reinforced Polyester包装方式Bulk
出线方向NO方向STRAIGHT
屏蔽类型NO端接方式IDC
触头类型IDC引脚间距:2.54mm
柱间距2.54mm安装类型Free Hanging (In-Line)
连接器类型Plug, Male Pins接触镀层Gold
排数2封装形式:DIN41612
触头材料Copper Alloy壳体材料PBT
尺寸/外形0.3in.Lx0.2in.Wx0.1in.H端接样式Cable
触点数64接触件端接:IDC / IDT
位数96绝缘材料 - 材质Polybutylene Terephthalate (PBT), Polyester, Glass Filled
接触镀层厚度30µin (0.76µm)触点材料 - 镀层GOLD
第一连接器安装类型:Flange

产品信息

样式C连接器性别Male
系列3695产品特性Feed Through
匹配码36950000标准交期6 weeks
加载位置数64

环境参数

级别、等级1工作温度-55 TO 125°C
