219 系列
CTS Corporation219 系列 100mA 20VDC -55°C ~ 85°C 鱼尾型金表面贴装开关
CTS Corporation的219系列产品提供了一系列适用于紧凑PCB应用的表面贴装微型断路器，具备简单的开/关功能。这些开关有多种配置，包括单极单投（SPST），具有不同数量的位置和操作杆样式。如果您正在处理需要可靠方式在两种状态之间切换的项目，这些开关是一个不错的选择。它们适用于各种系统，如电源管理电路、测试设备和工业控制面板。值得一提的是，其坚固的设计使其能够在-55°C至85°C的宽温度范围内工作，适用于室内外应用。当工程师需要一个能够承受高达0.1A而不超预算的开关时，往往会选择这个系列。10位版本特别适用于需要多个设置或配置的应用。鸥翼形和J弯形配置提供了在电路板布局上的灵活性，便于布线和安装。镀金表面提供了出色的可焊性和防腐蚀性，确保长期可靠性。实际观察表明，嵌入式滑动式设计非常适合空间受限的设计，而抬高式滑动式则更便于手动操作。10位微型断路器适用于需要大量配置选项的复杂系统。
总体而言，219 系列为任何希望为其项目添加简单可靠的切换功能的工程师提供了多样化的工具。
常见问答
219 - 型号列表
共 200 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 位数 | 额定电压 | 最大额定电流 | 安装类型 | 端子类型 | 按钮样式/尺寸 | 开关驱动电平 | 工作温度 | 开关功能/额定值 | 标准包装数量 | RoHS | 包装方式 | 触点形式 | 致动器类型 | 端接样式 | 开关类型 | 密封 | 深度 | 高度 | 接触镀层 | 触头材料 | 总长度 | 柱间距 | 欧盟RoHS | 电气寿命 | 抗辐射加固 | 开关功能 | 直流反向电压（Vr）（最大） | 间距 | 安装样式 | 已删除 | 转换前位置数 | 电路 | 触点额定值 @ 电压 | 方向 | 执行器水平位置 | 可清洗 | 系列 | 工厂包装数量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch DIP ON OFF SPST 10 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube SWITCH TAPE SEAL 10 POS SMD 50V DIP Switches / SIP Switches SPST 10 switch sections cts components | 2380 | 60: ¥8.6992 | DIP Switches / SIP Switches | 10 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Raised Slide | SPST | -55 to 85 °C | ON OFF | Rail / Tube | Lead free / RoHS Compliant | Tube | SPST | Standard | SMD/SMT | DIP | Tape/Bottom | 9.91 | 4.3 | Gold | Beryllium Copper | 26.87 | 2.54 mm | Compliant | 2000 | - | - | - | - | - | - | - | SPST | 0.1A @ 50VDC | Top Actuated | Raised | Yes | 219 | - |
 | 0 | - | 3 | 20 V | 0.1@20VDC A | Surface Mount | J-Bend | Flush Slide | SPST | -55 to 85 °C | OFF ON | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Switch DIP ON OFF SPST 2 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD T/R SWITCH TAPE SEAL 2 POS SMD DIP Switches / SIP Switches SPST 2 switch sections cts components | 649 | 9: ¥4.0174 | DIP Switches / SIP Switches | 2 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | Tape & Reel | Lead free / RoHS Compliant | Tape and Reel | SPST | Standard | SMD/SMT | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 6.55 mm | 2.54 mm | Compliant | 2000 | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 2 | SPST | 0.1A @ 50VDC | Top Actuated | Flush | Yes | 219 | - |
Switch DIP ON OFF SPST 10 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD T/R cts components | 0 | - | 10 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | Tape & Reel | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 1440 | 120: ¥4.5798 | - | 3 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | 6 | 20 V | 0.1@20VDC A | Surface Mount | J-Bend | Flush Slide | SPST | -55 to 85 °C | - | Rail / Tube | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 12 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Raised Slide | SPST | -55 to 85 °C | ON OFF | Rail / Tube | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Switch DIP ON OFF SPST 2 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube SWITCH TAPE SEAL 2 POS SMD 50V DIP Switches / SIP Switches SPST 2 switch sections cts components | 132 | 13: ¥5.44 | DIP Switches / SIP Switches | 2 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Raised Slide | SPST | -55 to 85 °C | ON OFF | Rail / Tube | Lead free / RoHS Compliant | Tube | SPST | Standard | SMD/SMT | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 6.55 mm | 2.54 mm | - | - | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 2 | SPST | 0.1A @ 50VDC | Top Actuated | Raised | Yes | 219 | - |
Switch DIP ON OFF SPST 3 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD T/R DIP Switches / SIP Switches 3 switch sections SPST cts components | 22000 | 1000: ¥3.4333 | DIP Switches / SIP Switches | 3 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | Tape & Reel | RoHS Compliant | Tube | SPST | Flush | Solder Pad | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 9.09 mm | - | - | - | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 3 | - | - | - | - | - | - | 1000 |
| 0 | - | 2 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | Tape & Reel | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |

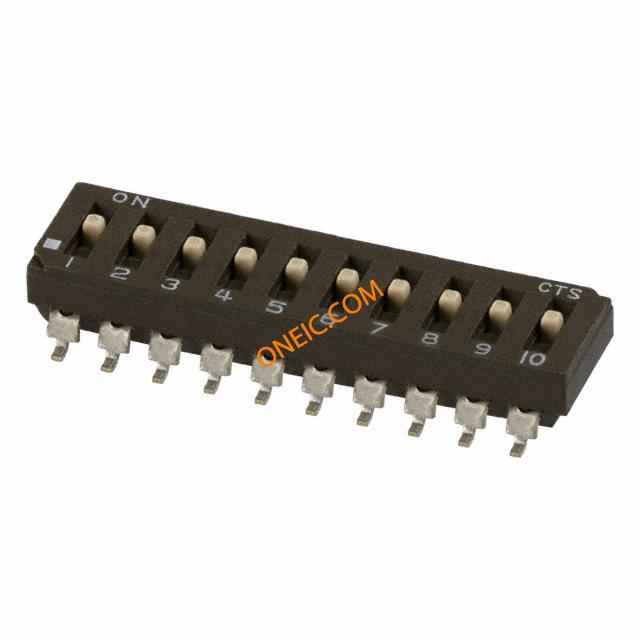

Switch DIP ON OFF SPST 10 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube SWITCH TAPE SEAL 10 POS SMD 50V DIP Switches / SIP Switches SPST 10 switch sections cts components | 2300 | 60: ¥9.0882 | DIP Switches / SIP Switches | 10 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | Rail / Tube | Lead free / RoHS Compliant | Tube | SPST | Standard | SMD/SMT | DIP | Tape/Bottom | 9.91 | 4.05 | Gold | Beryllium Copper | 26.87 | 2.54 mm | Compliant | 2000 | - | - | - | - | - | - | - | SPST | 0.1A @ 50VDC | Top Actuated | Flush | Yes | - | - |

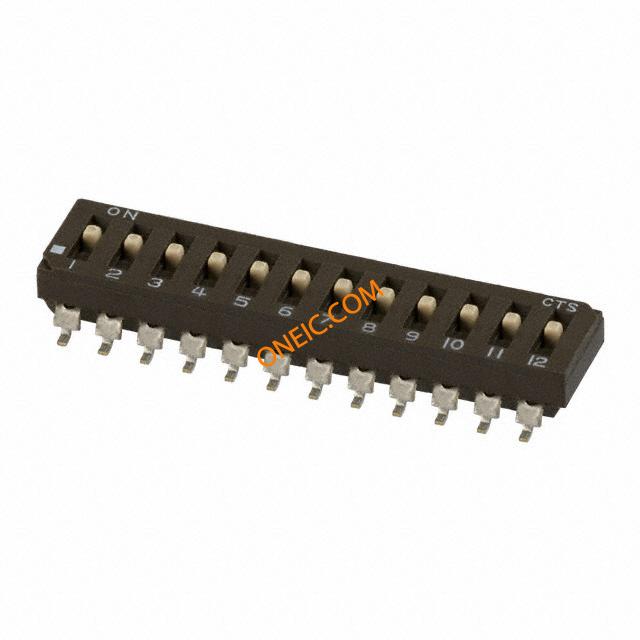

 DIP Switches / SIP Switches SPST 12 switch sections Switch DIP ON OFF SPST 12 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube SWITCH TAPE SEAL 12 POS SMD 50V CTS Electronic Components | 2070 | 60: ¥9.2147 | DIP Switches / SIP Switches | 12 | 20 V | 100 mA | Surface Mount | Gull Wing | Raised Slide | SPST | - 55 C to + 85 C | ON OFF | 15 | Lead free / RoHS Compliant | Tube | SPST | Standard | SMD/SMT | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 31.95 mm | 2.54 mm | Compliant | 2000 | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 12 | SPST | 0.1A @ 50VDC | Top Actuated | Raised | Yes | 219 | - |
DIP Switches / SIP Switches 3 switch sections SPST Switch DIP ON OFF SPST 3 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD T/R CTS Electronic Components | 8000 | 1000: ¥4.2459 | DIP Switches / SIP Switches | 3 | 20 | 0.1@20VDC | Surface Mount | Gull Wing | Raised Slide | SPST | 85 | ON OFF | - | RoHS Compliant | Tape and Reel | SPST | Slide | Solder Pad | DIP | Tape/Bottom | 9.91 | 4.3 | Gold | Beryllium Copper | 9.09 | 2.54 | Compliant | 2000 | - | - | - | - | - | - | - | - | - | - | - | - | - | 60 |

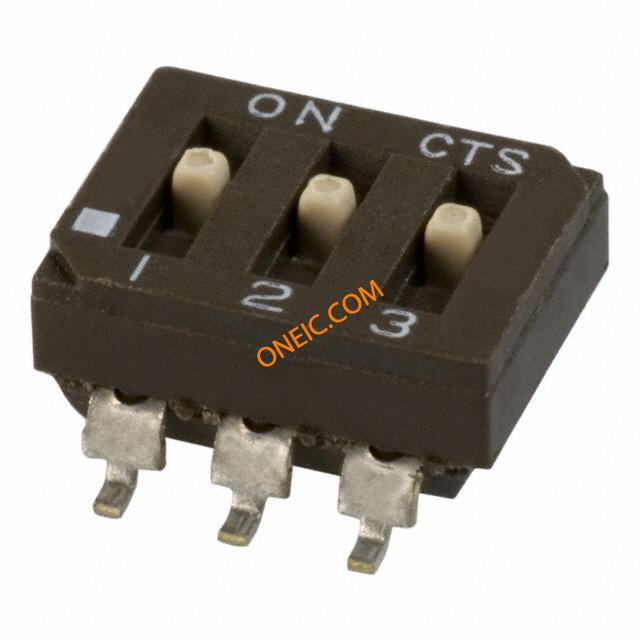

 DIP Switches / SIP Switches SPST 3 switch sections Switch DIP ON OFF SPST 3 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube SWITCH TAPE SEAL 3 POS SMD 50V CTS Electronic Components | 5640 | 120: ¥4.9674 | DIP Switches / SIP Switches | 3 | 20 V | 100 mA | Surface Mount | Gull Wing | Raised Slide | SPST | - 55 C to + 85 C | ON OFF | 60 | Lead free / RoHS Compliant | Tube | SPST | Standard | SMD/SMT | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 9.09 mm | 2.54 mm | Compliant | 2000 | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 3 | SPST | 0.1A @ 50VDC | Top Actuated | Raised | Yes | 219 | - |
DIP Switches / SIP Switches 10 switch sections SPST Switch DIP ON OFF SPST 10 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD T/R CTS Electronic Components | 5500 | 250: ¥6.6184 | DIP Switches / SIP Switches | 10 | 20 | 0.1 A | Surface Mount | Gull Wing | Flush Slide | SPST | -55C to 85C | ON OFF | - | RoHS Compliant | Tape and Reel | SPST | Flush | Solder Pad | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 26.87 mm | 2.54 | Compliant | 2000 | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 10 | - | - | - | - | - | - | 1000 |
| 4000 | 1000: ¥9.0086 | DIP Switches / SIP Switches | 12 | - | - | - | - | - | - | - | - | - | RoHS Compliant | Tube | SPST | Slide | Solder Pad | DIP | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1000 |
DIP Switches / SIP Switches 2 switch sections SPST Switch DIP ON OFF SPST 2 Raised Slide 0.1A 20VDC Gull Wing 2.54mm SMD T/R CTS Electronic Components | 36357 | 1: ¥5.10 | DIP Switches / SIP Switches | 2 | 20 | 0.1 A | Surface Mount | Gull Wing | Raised Slide | SPST | - 55 C to + 85 C | ON OFF | - | RoHS Compliant | Tape and Reel | SPST | Slide | SMD/SMT | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 6.55 mm | 2.54 mm | Compliant | 2000 | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 2 | - | - | - | - | - | - | 1000 |

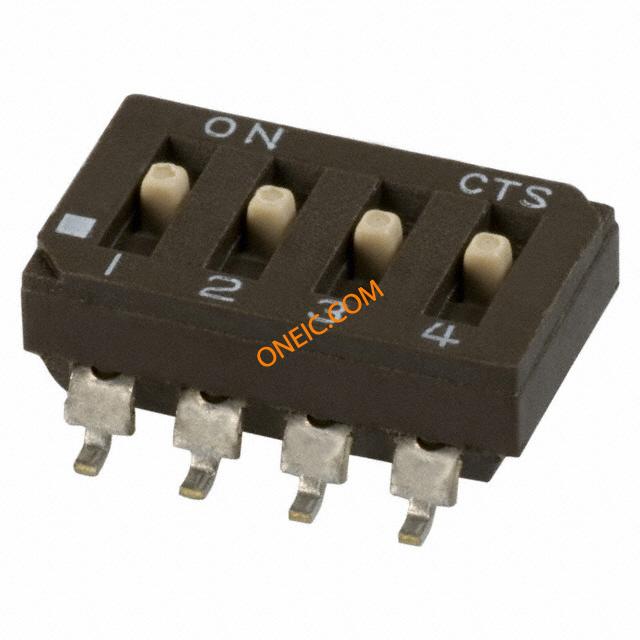

 Switch DIP ON OFF SPST 4 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD Tube SWITCH TAPE SEAL 4 POS SMD 50V DIP Switches / SIP Switches SPST 4 switch sections cts components | 15485 | 135: ¥5.00 | DIP Switches / SIP Switches | 4 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | Rail / Tube | Lead free / RoHS Compliant | Tube | SPST | Standard | SMD/SMT | DIP | Tape/Bottom | 9.91 mm | 4.05 mm | Gold | Beryllium Copper | 11.63 mm | 2.54 mm | Compliant | 2000 | No | ON OFF | 20V | 2.54 mm | Surface Mount | Compliant | 4 | SPST | 0.1A @ 50VDC | Top Actuated | Flush | Yes | - | - |
Switch DIP ON OFF SPST 10 Flush Slide 0.1A 20VDC Gull Wing 2.54mm SMD T/R cts components | 0 | - | 10 | 20 V | 0.1@20VDC A | Surface Mount | Gull Wing | Flush Slide | SPST | -55 to 85 °C | ON OFF | Cut Tape | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 12 | 20 V | 0.1@20VDC A | Surface Mount | J-Bend | Raised Slide | SPST | -55 to 85 °C | ON OFF | Rail / Tube | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
