cigen-VL-EPMS

VL-EPMS single board computers (sbcs) 系列

VersaLogic Corporation

VersaLogic Corporation

Versatile SUMIT interface modules for serial I/O and system expansion

系列图片（7 张）

文档与媒体

MEPMs21.pdf

DS-Ocelot.pdf

MEPMsE1.pdf

DS-EPMs-E1.pdf

DS-EPMs-M1.pdf

mepmsm1.pdf

DS-EPMs-PS1.pdf

MEPMsPS1.pdf

MEPMsU1.pdf

DS-EPMs-U1.pdf

DS-EPMs-U1.pdf

MEPMsU1.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

VL-EPMS single board computers (sbcs) - 型号列表

共 14 个型号

制造商零件编号	库存	价格	产品类别	标准包装数量	尺寸/外形	外形规格	扩展接口/总线	工作温度	功率（瓦）	功能	RS-232（422、485）	USB	以太网	RoHS	转速	视频输出接口	看门狗定时器	数字I/O线数	模拟输入/输出	核心处理器	核心数	RAM容量/已安装	冷却类型	存储接口
VL-EPMS-E1A SUMIT-104, GBE, 2 PORT VersaLogic Corporation	25	¥2,328.49	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	3.5W	Ethernet / miniPCIe	-	-	GbE (2)	-	-	-	-	-	-	-	-	-	-	-

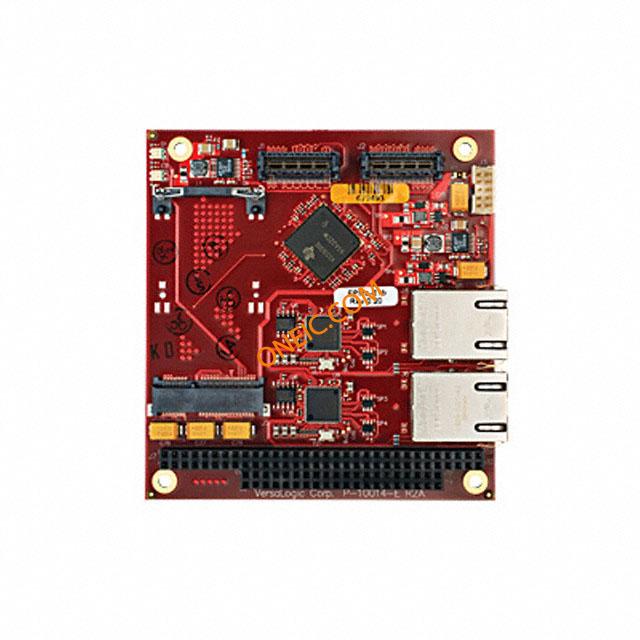

VL-EPMS-E1B SUMIT+PC/104, ET, GBE, 2 PORT VersaLogic Corporation	10	¥2,195.99	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT, PC/104	-40°C ~ 85°C	3.5W	Ethernet / miniPCIe	-	-	GbE (2)	-	-	-	-	-	-	-	-	-	-	-

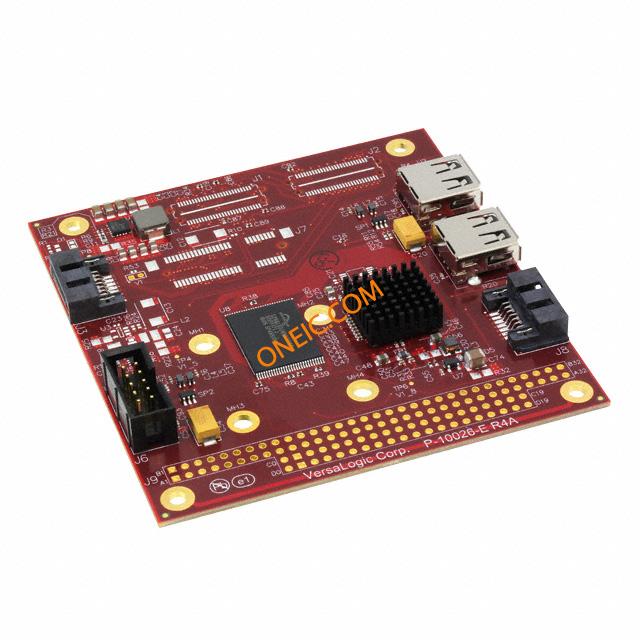

VL-EPMS-M1A SATA AND USB EXPANSION MODULE VersaLogic Corporation	10	¥1,008.00	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	4.16W	SATA	-	USB 2.0 (4)	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-

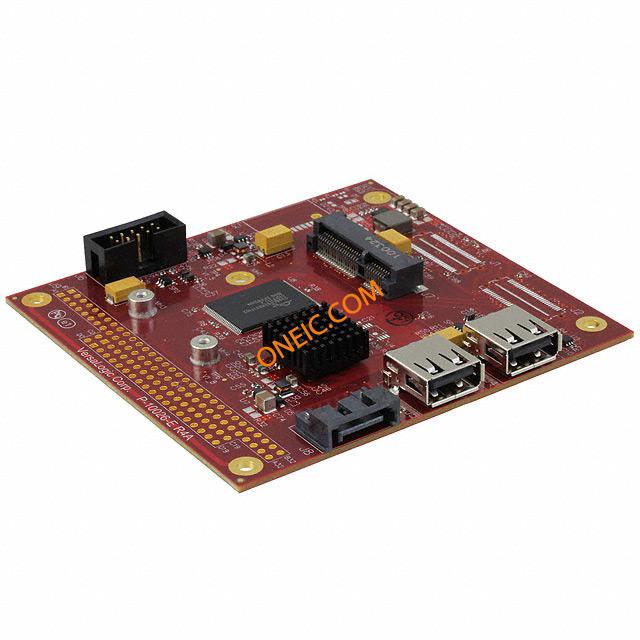

VL-EPMS-M1C SATA, MSATA AND USB MODULE VersaLogic Corporation	10	¥1,116.01	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	4.16W	SATA	-	USB 2.0 (4)	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-

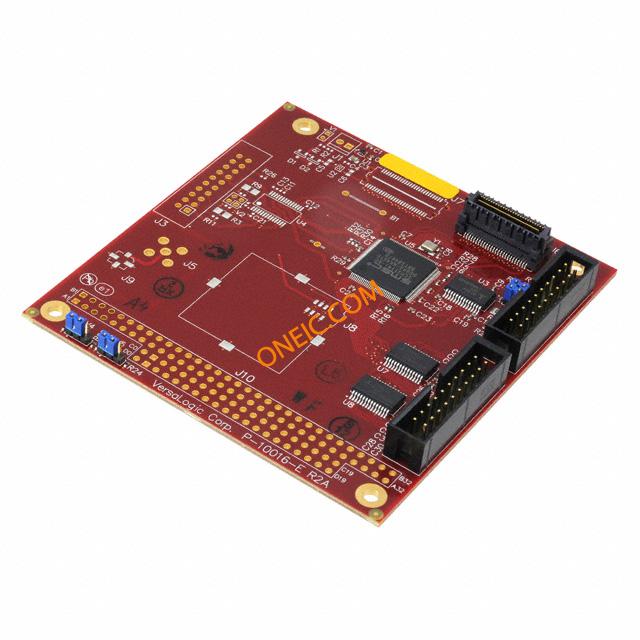

VL-EPMS-U1A SUMIT-104, 2 RS232 & 2 GEN PUR. VersaLogic Corporation	10	¥1,216.80	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	0.7W	RS-232/422/485	4	-	-	-	-	-	-	-	-	-	-	-	-	-

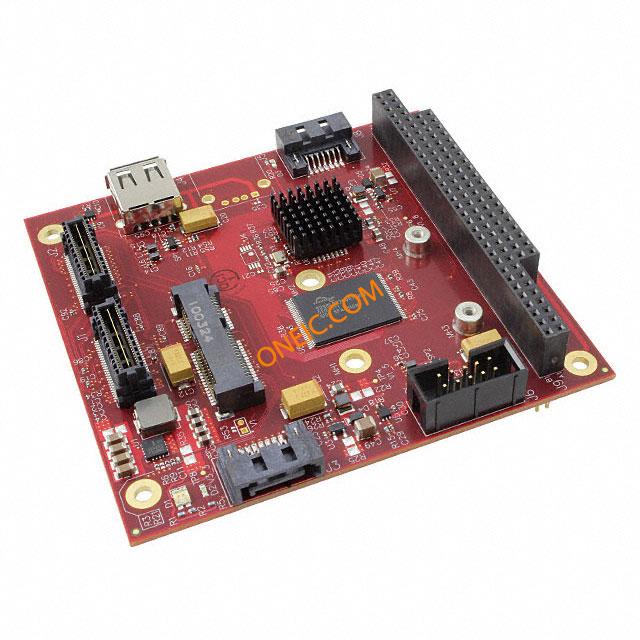

VL-EPMS-M1B SATA, USB MINI PCIE MODULE VersaLogic Corporation	10	¥1,343.25	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	4.16W	SATA	-	USB 2.0 (3)	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-
VL-EPMS-U1C 4 CHAN SERIAL I/O CARD SUMIT+ISA VersaLogic Corporation	10	¥1,389.59	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	0.7W	RS-232/422/485	4	-	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-
VL-EPMS-U1B 6 CHAN SERIAL I/O CARD SUMIT VersaLogic Corporation	10	¥1,411.20	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	0.7W	RS-232/422/485	6	-	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-

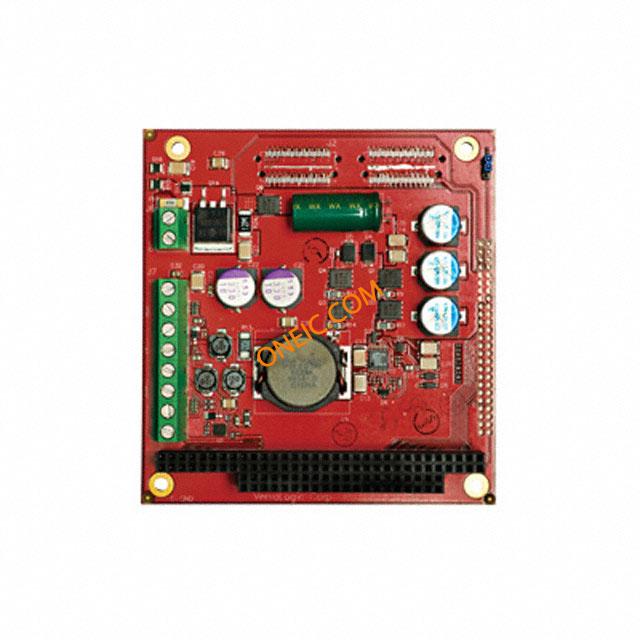

VL-EPMS-PS1A SUMIT-104, POWER SUPPLY 50 W VersaLogic Corporation	10	¥1,648.81	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT, PC/104	-40°C ~ 85°C	-	Power Supply	-	-	-	-	-	-	-	-	-	-	-	-	-	-
VL-EPMS-U1E 2 CHAN SERIAL I/O GPS WITH SUMIT VersaLogic Corporation	10	¥1,864.81	-	1	3.6" x 3.8" (90mm x 96mm)	SUMIT on PC/104	SUMIT	-40°C ~ 85°C	0.7W	RS-232/422/485	2	-	-	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-

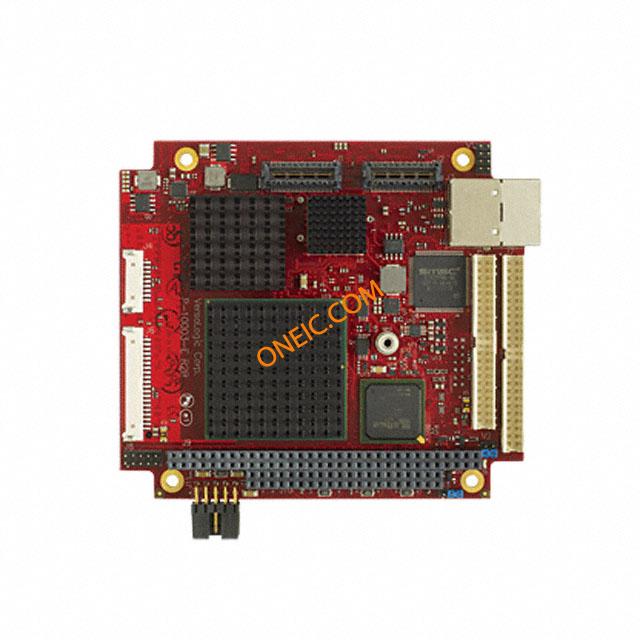

VL-EPMS-21H SBC ATOM Z530PT 1.33 GHZ MAX 2GB VersaLogic Corporation	26	¥6,602.39	-	1	3.6" x 3.8" (90mm x 96mm)	PC/104	SUMIT, PC/104	-40°C ~ 85°C	6.5W	-	4	USB 2.0 (2)	GbE	-	1.33GHz	LVDS	Yes	0	0:0	Atom Z520PT	1	2GB/0GB	Heat Sink	ATA100, IDE DOM
VL-EPMS-21G SBC ATOM Z530P 1.6 GHZ MAX 2GB VersaLogic Corporation	10	¥6,602.41	-	1	3.6" x 3.8" (90mm x 96mm)	PC/104	SUMIT, PC/104	0°C ~ 60°C	7.5W	-	4	USB 2.0 (2)	GbE	-	1.6GHz	LVDS	Yes	0	0:0	Atom Z530P	1	2GB/0GB	Heat Sink	ATA100, IDE DOM
VL-EPMS-21B SBC ATOM Z530PT 1.33 GHZ MAX 2GB VersaLogic Corporation	10	¥6,775.19	-	1	3.6" x 3.8" (90mm x 96mm)	PC/104	SUMIT, PC/104	-40°C ~ 85°C	6.5W	-	4	USB 2.0 (2)	GbE	-	1.33GHz	LVDS	Yes	0	0:0	Atom Z520PT	1	2GB/0GB	Heat Sink	ATA100, IDE DOM
VL-EPMS-21A SBC ATOM Z530P 1.6 GHZ MAX 2GB VersaLogic Corporation	10	¥6,501.59	-	1	3.6" x 3.8" (90mm x 96mm)	PC/104	SUMIT, PC/104	0°C ~ 60°C	7.5W	-	4	USB 2.0 (2)	GbE	-	1.6GHz	LVDS	Yes	0	0:0	Atom Z530P	1	2GB/0GB	Heat Sink	ATA100, IDE DOM
