cigen-TL3210AF160

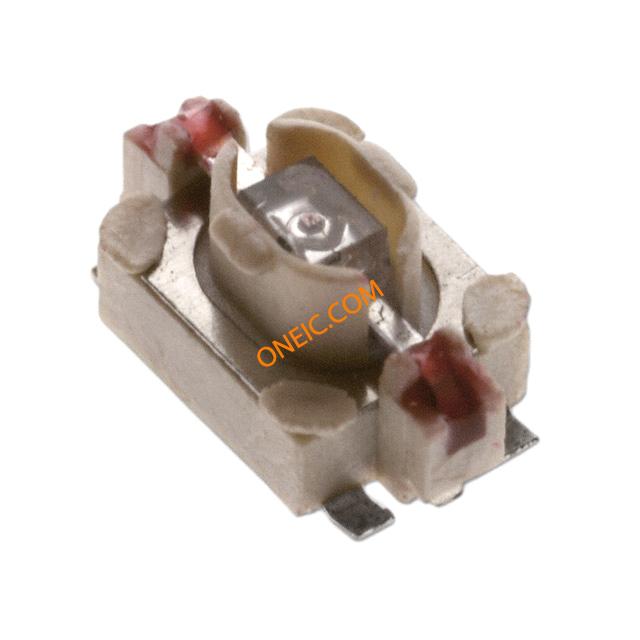

TL3210AF160 tactile switche 系列

E-Switch, Inc.

Compact tactile switches with SPST-NO design for low-current applications

系列图片（1 张）

文档与媒体

B200301D.pdf

TL3210.pdf

B200305C.pdf

B200302D.pdf

B200300D.pdf

B200304D.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

TL3210AF160 tactile switche - 型号列表

共 8 个型号

制造商零件编号	库存	价格	产品类别	标准包装数量	RoHS	其他名称	海关税号	电路	开关功能	最大触点电流	触点额定值 @ 电压	供电电压 (Vcc/Vdd)	标称照明电压	颜色	重量	外形尺寸(长x宽)	包装方式	致动器类型	安装类型	开关行程	操作力	端接样式	执行器方向	开关驱动电平	典型触点布局	照明类型及颜色	执行器距PCB垂直高度	照明类型	机械寿命	工作温度	系列
2 TL3210AF160GQ SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch	10	¥14.76	-	2,000	Lead free / RoHS Compliant	EG4994TR	85365019	SPST-NO	Off-Mom	:50mA	0.05A @ 12VDC	:12V	2.1 VDC	:Green	0	5.60mm x 3.40mm	Tape & Reel (TR)	Plunger for Cap	Surface Mount	0.20mm	160gf	Gull Wing	Top Actuated	:Top	:SPST-NO	LED, Green	3.12mm	Illuminated	100,000 Cycles	-20°C ~ 70°C	-
2 TL3210AF160RQ SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch	141	¥16.34	-	2,000	Lead free / RoHS Compliant	EG4993TR	85365019	SPST-NO	Off-Mom	:50mA	0.05A @ 12VDC	:12V	1.95 VDC	:Red	0	5.60mm x 3.40mm	Tape & Reel (TR)	Plunger for Cap	Surface Mount	0.20mm	160gf	Gull Wing	Top Actuated	:Top	:SPST-NO	LED, Red	3.12mm	Illuminated	100,000 Cycles	-20°C ~ 70°C	-
2 TL3210AF160BQ SWITCH TACTILE SPST-NO 0.05A 12V Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.57N SMD T/R SWITCH, TACTILE, SPST-NO, 50mA, 12VDC, SMD E-Switch	10	¥18.58	-	2,000	Lead free / RoHS Compliant	EG4995TR	85365019	SPST-NO	Off-Mom	:50mA	0.05A @ 12VDC	:12V	3.3 VDC	:Blue	0	5.60mm x 3.40mm	Tape & Reel (TR)	Plunger for Cap	Surface Mount	0.20mm	160gf	Gull Wing	Top Actuated	:Top	:SPST-NO	LED, Blue	3.12mm	Illuminated	100,000 Cycles	-20°C ~ 70°C	-
TL3210AF160BRQ SWITCH TACTILE ILLUMINATED E-Switch	10	¥21.04	-	2,000	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*
TL3210AF160WQ SWITCH TACTILE ILLUMINATED E-Switch	10	¥24.10	-	2,000	Lead free / RoHS Compliant	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*
TL3210AF160XQ TL3210 Series SPST 12V LED Red/Green Bi-color Contact Silver Tactile Switch E-SWITCH	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL3210AF160XR B200309 E-SWITCH	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TL3210AF160ZQ B200306 E-SWITCH	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
