TL1270F tl1270 系列
E-Switch, Inc.Illuminated tactile switches with right-angle and color options
系列图片（2 张）
文档与媒体
PDF 文档
PDF 文档
常见问答
内容由 AI 生成，仅供参考
加载中...
03
TL1270F tl1270 - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 其他名称 | 标准包装规格 | 标准包装数量 | RoHS | 电路 | 额定电压 | 开关功能 | 最大额定电流 | 触点额定值 @ 电压 | 标称照明电压 | 外形尺寸(长x宽) | 包装方式 | 触点形式 | 行程范围 | 致动器类型 | 安装类型 | 开关行程 | 连接器类型 | 接触镀层 | 安装样式 | 操作力 | 端接样式 | 照明颜色 | 执行器方向 | 安装高度（最大） | 照明类型及颜色 | 执行器距PCB垂直高度 | 系列 | 照明类型 | 机械寿命 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TL1270F160REQAT SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches SPST RIGHT ANGLE Ill RED Short E-Switch | 92 | ¥28.36 | - | EG5069TR | 300 | 300 | Lead free / RoHS Compliant | SPST-NO | 12 V | Off-Mom | 50 mA | 0.05A @ 12VDC | 3.6 VDC | 6.20mm x 4.50mm | Tape & Reel (TR) | SPST | 0.2 mm | Round Button | Through Hole, Right Angle | 0.20mm | No | Silver | Through Hole | 160gf | PC Pin | Red | Side Actuated | 4.7 mm | LED, Red | 5.62mm | TL1270 | Illuminated | 100,000 Cycles | -40°C ~ 85°C |
 TL1270F160REQBT SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches SPST RIGHT ANGLE Ill RED Long E-Switch | 574 | ¥28.36 | - | EG5070TR | 300 | 300 | Lead free / RoHS Compliant | SPST-NO | 12 V | Off-Mom | 50 mA | 0.05A @ 12VDC | 3.6 VDC | 6.20mm x 4.50mm | Tape & Reel (TR) | SPST | 0.2 mm | Round Button | Through Hole, Right Angle | 0.20mm | No | Silver | Through Hole | 160gf | PC Pin | Red | Side Actuated | 5.7 mm | LED, Red | 6.62mm | TL1270 | Illuminated | 100,000 Cycles | -40°C ~ 85°C |

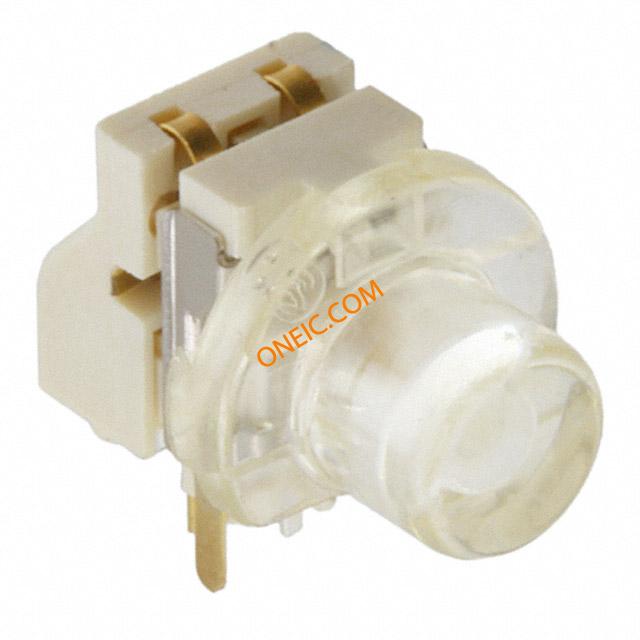

TL1270F160BLQAT SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches SPST RIGHT ANGLE Ill BLUE Short E-Switch | 900 | ¥21.40 | - | EG5065TR | 300 | 300 | Lead free / RoHS Compliant | SPST-NO | 12 V | Off-Mom | 50 mA | 0.05A @ 12VDC | 3.6 VDC | 6.20mm x 4.50mm | Tape & Reel (TR) | SPST | 0.2 mm | Round Button | Through Hole, Right Angle | 0.20mm | No | Silver | Through Hole | 160gf | PC Pin | Blue | Side Actuated | 4.7 mm | LED, Blue | 5.62mm | TL1270 | Illuminated | 100,000 Cycles | -40°C ~ 85°C |
TL1270F160GYQAT SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches SPST RIGHT ANGLE Ill GRN/YLW Short E-Switch | 1653 | ¥30.77 | - | EG5067TR | 300 | 300 | Lead free / RoHS Compliant | SPST-NO | 12 V | Off-Mom | 50 mA | 0.05A @ 12VDC | 2.3 VDC | 6.20mm x 4.50mm | Tape & Reel (TR) | SPST | 0.2 mm | Round Button | Through Hole, Right Angle | 0.20mm | No | Silver | Through Hole | 160gf | PC Pin | Green, Yellow | Side Actuated | 4.7 mm | LED, Green/Yellow | 5.62mm | TL1270 | Illuminated | 100,000 Cycles | -40°C ~ 85°C |
TL1270F160BLQBT SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches SPST RIGHT ANGLE Ill BLUE Long E-Switch | 433 | ¥30.77 | - | EG5066TR | 300 | 300 | Lead free / RoHS Compliant | SPST-NO | 12 V | Off-Mom | 50 mA | 0.05A @ 12VDC | 3.6 VDC | 6.20mm x 4.50mm | Tape & Reel (TR) | SPST | 0.2 mm | Round Button | Through Hole, Right Angle | 0.20mm | No | Silver | Through Hole | 160gf | PC Pin | Blue | Side Actuated | 5.7 mm | LED, Blue | 6.62mm | TL1270 | Illuminated | 100,000 Cycles | -40°C ~ 85°C |
TL1270F160GYQBT SWITCH TACTILE SPST-NO 0.05A 12V Tactile Switches SPST RIGHT ANGLE Ill GRN/YLW Long E-Switch | 900 | ¥21.49 | - | EG5068TR | 300 | 300 | Lead free / RoHS Compliant | SPST-NO | 12 V | Off-Mom | 50 mA | 0.05A @ 12VDC | 2.3 VDC | 6.20mm x 4.50mm | Tape & Reel (TR) | SPST | 0.2 mm | Round Button | Through Hole, Right Angle | 0.20mm | No | Silver | Through Hole | 160gf | PC Pin | Green, Yellow | Side Actuated | 5.7 mm | LED, Green/Yellow | 6.62mm | TL1270 | Illuminated | 100,000 Cycles | -40°C ~ 85°C |
 | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
