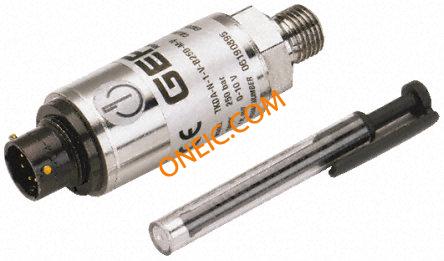

TKDA-N-1-Z sensors & transducer 系列

Gefran S.p.A.

IP67-rated absolute pressure sensors for hydraulic and pneumatic fluids

系列图片（1 张）

常见问答

内容由 AI 生成，仅供参考
加载中...
03

TKDA-N-1-Z sensors & transducer - 型号列表

共 8 个型号

最大压力

制造商零件编号库存价格产品类别精度输出类型响应时间输出电压供电电压端子类型压力范围最大压力媒体交付类型密封等级压力类型工作温度
TKDA-N-1-Z-B04C-M-V
TKDA-N-1-Z-B04C-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 400bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar400barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
TKDA-N-1-Z-B06U-M-V
TKDA-N-1-Z-B06U-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 6bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar6barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
TKDA-N-1-Z-B16D-M-V
TKDA-N-1-Z-B16D-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 160bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar160barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
TKDA-N-1-Z-B01D-M-V
TKDA-N-1-Z-B01D-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 10bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar10barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
TKDA-N-1-Z-B16U-M-V
TKDA-N-1-Z-B16U-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 16bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar16barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
TKDA-N-1-Z-B25D-M-V
TKDA-N-1-Z-B25D-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 250bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar250barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
TKDA-N-1-Z-B04U-M-V
TKDA-N-1-Z-B04U-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 4bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar4barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
TKDA-N-1-Z-B01C-M-V
TKDA-N-1-Z-B01C-M-V

Absolute Pressure Sensor For Hydraulic Fluid, Pneumatic Fluid, 100bar Max Pressure, 15 to 30V dc, IP67

Gefran

50¥1,227.12-±0.5 %Digital1 ms10 V dc15 → 30 V dcM12 Connector0bar100barHydraulic Fluid, Pneumatic FluidIP67Absolute+105°C
