SSF-LXH2100 optoelectronic 系列型号列表/参数/数据手册

Lumex, Inc. 的 SSF-LXH2100 系列由各种颜色的 LED 指示灯组成，设计用于电路板安装。这些 LED 提供多种颜色选择，使其成为电子设备状态指示的理想选择。如果您正在从事需要视觉反馈的任何项目，例如电源状态、故障条件或系统操作，这些 LED 都可以是一个有价值的补充。

值得注意的一点是它们紧凑的尺寸，这使得在 PCB 上有效利用空间成为可能。特别是在密度较高的电路板上，空间尤为宝贵。工程师在需要可靠且可见的指示器时往往会选用这些 LED，而不会占用太多板面积。另一个实用的好处是它们宽广的视角，确保从不同角度都能清晰看到指示器，这对于用户界面至关重要。

这些 LED 还提供了良好的亮度，这对于确保状态信息清晰可见非常重要。它们通常提供多种安装选项，包括表面贴装和插针式安装，以满足不同的设计要求。总体而言，SSF-LXH2100 系列为向电子电路添加视觉反馈提供了灵活的解决方案，使其成为许多工程师的首选组件。

制造商零件编号	库存	价格	产品类别	工厂包装数量	RoHS	包装方式	安装类型	视角	LED正向电流	机械寿命	照明颜色	光通量 @ 电流/温度	波长	LED正向电压	系列	标准包装数量	电流	额定电压	峰值波长	毫坎德拉等级	颜色	透镜样式/尺寸	透镜类型	配置	光学尺寸

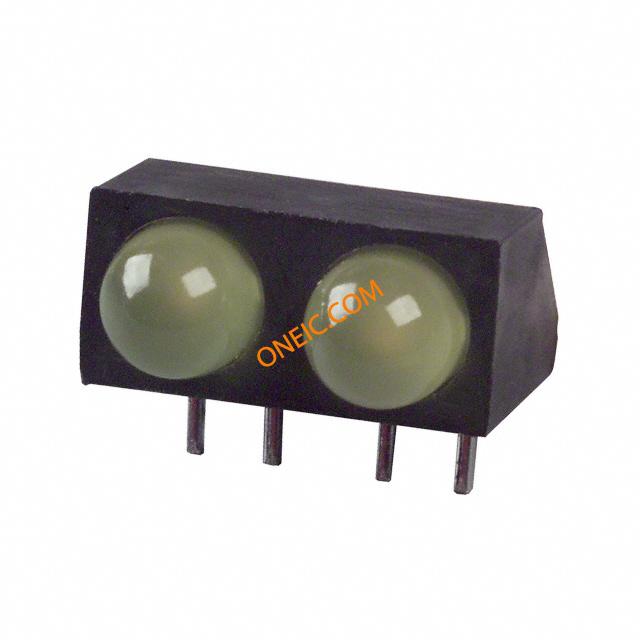

4 SSF-LXH2100YD LED Circuit Board Indicators LED CBI LED 5MM RA 2-WIDE YELLOW PC MNT Lumex	10	1: ¥8.976	LED Circuit Board Indicators	390	RoHS Compliant	Bulk	Through Hole	60 deg	30 mA	-	Yellow	30 mcd	585 nm	2.1 V	SSF	500	20mA	2.1V	585nm	30mcd	Yellow (x 2)	Round with Domed Top, 5mm	Diffused, Tinted	2 Wide	5 mm

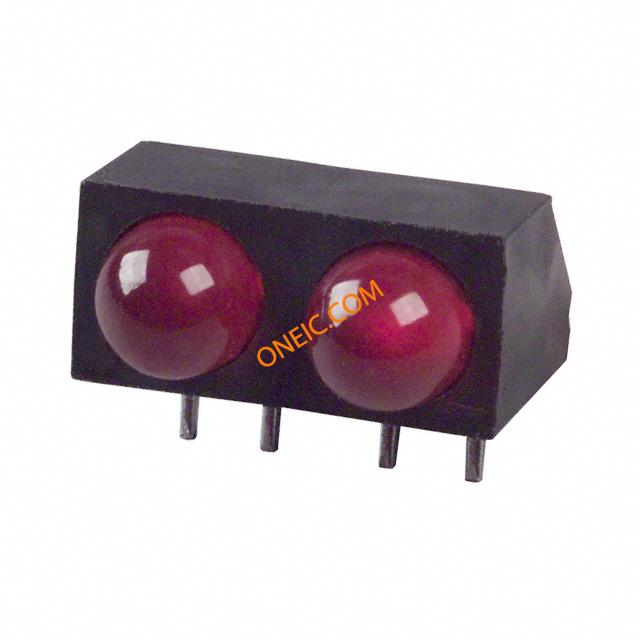

4 SSF-LXH2100SRD LED Circuit Board Indicators LED CBI LED 5MM RA 2-WIDE SUP RED PCMNT Lumex	246	1: ¥15.844	LED Circuit Board Indicators	117	RoHS Compliant	Bulk	Through Hole	60 deg	100 uA	-	Red	100 mcd	660 nm	-	SSF	500	20mA	1.8V	660nm	100mcd	Red (x 2)	Round with Domed Top, 5mm	Diffused, Tinted	2 Wide	-

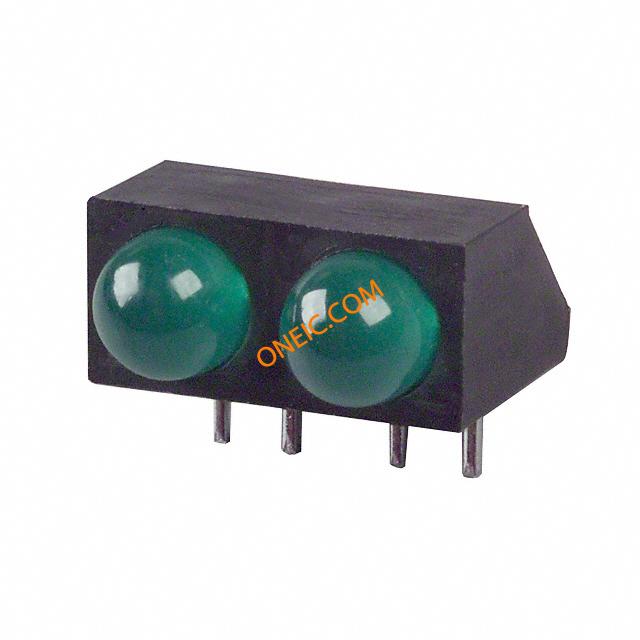

4 SSF-LXH2100GD LED Circuit Board Indicators LED CBI LED 5MM RA 2-WIDE GREEN PC MNT LED Uni-Color Green 565nm 4-Pin Lumex	389	1: ¥3.536	LED Circuit Board Indicators	117	RoHS Compliant	Bulk	Through Hole	60 deg	20 mA	-	Green (x 2)	30 mcd	565 nm	2.2 V	-	39	20mA	2.2V	565nm	30mcd	Green (x 2)	Round with Domed Top, 5mm	Diffused, Tinted	2 Single Color LEDs, Single Level	5 mm
SSF-LXH2100LGID LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100GID-AT LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	60 deg	100 uA	Obsolete	Red, Green	30 mcd, 40 mcd	-	-	SSF	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100GD-1 LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100HGW LED Circuit Board Indicators LED CBI Lumex	10	1: ¥12.444	LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 SSF-LXH2100ID LED Circuit Board Indicators LED CBI LED 5MM RA 2-WIDE RED PC MNT Lumex	1151	1: ¥9.452	LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	60 deg	20 mA	-	Red (x 2)	40 mcd	635 nm	2 V	-	39	20mA	2V	635nm	40mcd	Red (x 2)	Round with Domed Top, 5mm	Diffused, Tinted	2 Single Color LEDs, Single Level	5 mm
SSF-LXH2100GID LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	60 deg	100 mA	Obsolete	-	40 mcd	635 nm	2.6 V	-	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100IGW LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	60 deg	100 uA	Obsolete	Red, Green	-	-	-	SSF	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100LIGD LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100GAD LED Circuit Board Indicators LED CBI Lumex	10	1: ¥8.976	LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100LGD LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	60 deg	100 uA	Obsolete	Green	30 mcd	565 nm	2.6 V	SSF	-	-	-	-	-	-	-	-	-	-
SSF-LXH2100GID-1 LED Circuit Board Indicators LED CBI Lumex	0		LED Circuit Board Indicators	100	RoHS Compliant	Bulk	Through Hole	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
