SF05S sf05s/d 系列

Delta Electronics, Inc.Delta Electronics, Inc.

各种输入和输出电压选项的紧凑型DC/DC转换器

Delta Electronics 的 SF05S 系列是一款紧凑型DC/DC转换器，旨在提供高效的小尺寸功率转换。这些转换器提供了广泛的输入和输出电压选项，使其在各种应用中具有很高的灵活性。如果您正在开发需要可靠且节省空间的电源解决方案的项目，SF05S 系列绝对值得考虑。值得注意的是，它们在广泛的工作条件下都保持了高效率，即使在轻负载条件下也能维持高效率，这对于许多现代电子产品来说至关重要。当工程师需要一个可以处理不同输入电压和输出配置而不会占用太多设计空间的转换器时，往往会选择这个系列。另一个实用的好处是其坚固性和可靠性。SF05S 系列能够在宽温范围内工作，使其适用于室内外应用。此外，它们还配备了过压保护、过流保护和热关断等功能，这使得它们对于关键任务系统更具吸引力。从工业控制系统到医疗设备，再到汽车电子领域，这些转换器的应用范围非常广泛，特别是在对尺寸和效率有严格要求的场合。

它们在电压选项方面的灵活性使得它们可以在各种电路中使用，无论是需要降压高电压还是升压低电压。总体而言，SF05S 系列在性能和紧凑性方面提供了良好的平衡，使其成为工程师在受限空间中寻找可靠电源转换解决方案的理想选择。

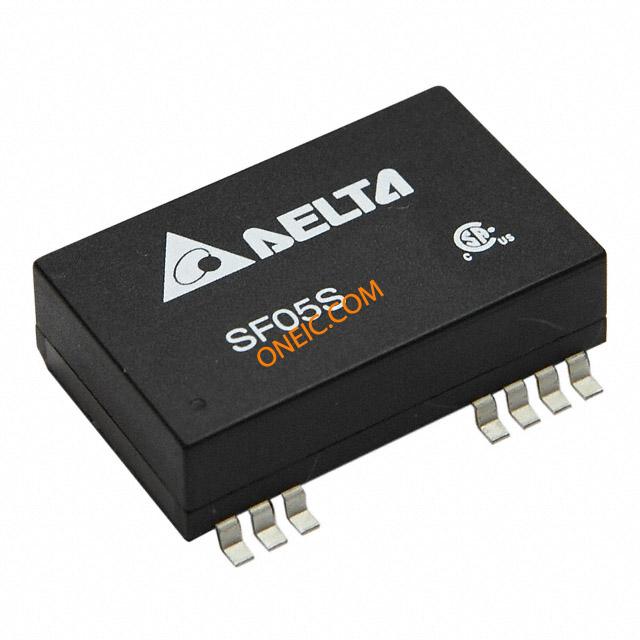

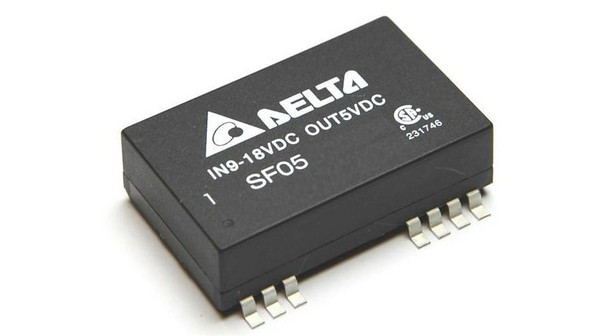

系列图片（2 张）

文档与媒体

PDF 文档
DS_SF05S%20&%20D%20series_07162012.pdf

常见问答

内容由 AI 生成，仅供参考
加载中...
03

SF05S sf05s/d - 型号列表

共 12 个型号

其他名称

效率

输出电流

输出电流1

输出电流2

最小输入电压

额定电压

最大功率（瓦特）

制造商零件编号库存价格产品类别其他名称标准包装数量RoHS效率最大功率额定功率额定电压输出电流输出数量输出电流1输出电流2最大功率（瓦特）击穿电压隔离电压最小输入电压尺寸宽度高度长度包装方式安装类型封装形式尺寸/外形类型产品特性连接方式工作温度
SF05S2412A
2
SF05S2412A

DCDC CONVERTER 12VOUT 5W DC/DC converter 18...36 V 12 VDC, SF05S2412A, Delta-Electronics

Delta Electronics

3851: ¥131.104-941-136810Lead free / RoHS Compliant85%5W518...36 V417mA1417 mA41.7 mA5W1500 VDC1.5kV (1500V)12V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S2405A
2
SF05S2405A

DCDC CONVERTER 5VOUT 5W DC/DC converter 18...36 V 5 VDC, SF05S2405A, Delta-Electronics

Delta Electronics

531: ¥138.652-941-136710Lead free / RoHS Compliant82%5W518...36 V1A11000 mA100 mA5W1500 VDC1.5kV (1500V)5V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S1203A
2
SF05S1203A

DCDC CONVERTER 3.3VOUT 5W DC/DC converter 9...18 V 3.3 VDC, SF05S1203A, Delta-Electronics

Delta Electronics

181: ¥128.52-941-136210Lead free / RoHS Compliant76%5W59...18 V1.2A11200 mA120 mA4W1500 VDC1.5kV (1500V)3.3V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S1212A
2
SF05S1212A

DCDC CONVERTER 12VOUT 5W DC/DC converter 9...18 V 12 VDC, SF05S1212A, Delta-Electronics

Delta Electronics

341: ¥128.52-941-136410Lead free / RoHS Compliant83%5W59...18 V417mA1417 mA41.7 mA5W1500 VDC1.5kV (1500V)12V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S1215A
2
SF05S1215A

DCDC CONVERTER 15VOUT 5W DC/DC converter 9...18 V 15 VDC, SF05S1215A, Delta-Electronics

Delta Electronics

201: ¥128.52-941-136510Lead free / RoHS Compliant83%5W59...18 V333mA1333 mA33.3 mA5W1500 VDC1.5kV (1500V)15V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S2403A
2
SF05S2403A

DCDC CONVERTER 3.3VOUT 5W DC/DC converter 18...36 V 3.3 VDC, SF05S2403A, Delta-Electronics

Delta Electronics

471: ¥138.652-941-136610Lead free / RoHS Compliant78%5W518...36 V1.2A11200 mA120 mA4W1500 VDC1.5kV (1500V)3.3V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S2415A
2
SF05S2415A

DCDC CONVERTER 15VOUT 5W DC/DC converter 18...36 V 15 VDC, SF05S2415A, Delta-Electronics

Delta Electronics

341: ¥128.52-941-136910Lead free / RoHS Compliant85%5W518...36 V333mA1333 mA33.3 mA5W1500 VDC1.5kV (1500V)15V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S4803A
2
SF05S4803A

DCDC CONVERTER 3.3VOUT 5W DC/DC converter 36...75 V 3.3 VDC, SF05S4803A, Delta-Electronics

Delta Electronics

501: ¥140.08-941-137010Lead free / RoHS Compliant78%5W536...75 V1.2A11200 mA120 mA4W1500 VDC1.5kV (1500V)3.3V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S4805A
2
SF05S4805A

DCDC CONVERTER 5VOUT 5W DC/DC converter 36...75 V 5 VDC, SF05S4805A, Delta-Electronics

Delta Electronics

441: ¥140.08-941-137110Lead free / RoHS Compliant82%5W536...75 V1A11000 mA100 mA5W1500 VDC1.5kV (1500V)5V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S4815A
2
SF05S4815A

DCDC CONVERTER 15VOUT 5W DC/DC converter 36...75 V 15 VDC, SF05S4815A, Delta-Electronics

Delta Electronics

481: ¥140.08-941-137310Lead free / RoHS Compliant85%5W536...75 V333mA1333 mA33.3 mA5W1500 VDC1.5kV (1500V)15V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S4812A
2
SF05S4812A

DCDC CONVERTER 12VOUT 5W DC/DC converter 36...75 V 12 VDC, SF05S4812A, Delta-Electronics

Delta Electronics

411: ¥128.52-941-137210Lead free / RoHS Compliant85%5W536...75 V417mA1417 mA41.7 mA5W1500 VDC1.5kV (1500V)12V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
SF05S1205A
2
SF05S1205A

DCDC CONVERTER 5VOUT 5W DC/DC converter 9...18 V 5 VDC, SF05S1205A, Delta-Electronics

Delta Electronics

361: ¥140.08-941-136310Lead free / RoHS Compliant80%5W59...18 V1A11000 mA100 mA5W1500 VDC1.5kV (1500V)5V33.4 x 20.8 x 9.8 mm20.89.833.4TubeSurface Mount24-SMD Module (12 Leads)1.31" L x 1.01" W x 0.10" H (33.4mm x 25.6mm x 10.2mm)Isolated ModuleRemote On/Off, OCP, SCP, UVLOSMD-40°C ~ 71°C
