cigen-SC53LC

SC53LC sc53lc 系列

Signal Transformer Co.

Signal Transformer Co.

Surface-mount inductors with various inductance and current ratings

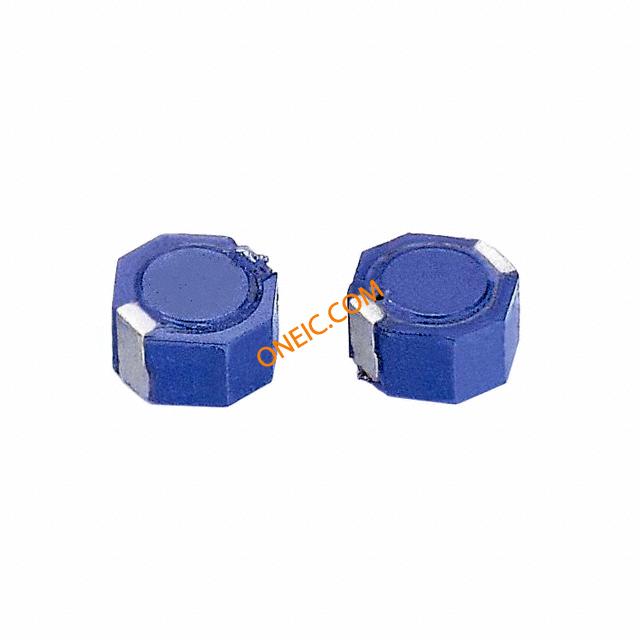

系列图片（1 张）

文档与媒体

P101_SC53LC.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

SC53LC sc53lc - 型号列表

共 13 个型号

制造商零件编号	库存	价格	产品类别	标准包装数量	容差	电感量	测试频率	直流电阻（DCR）	最大额定电流	串联饱和电流	包装方式	屏蔽	安装类型	封装形式	尺寸/外形	安装高度（最大）	其他名称	RoHS
SC53LC-100 INDUCTOR SMD 10UH 1.33A 100KHZ Signal Transformers	10	¥4.09	-	2,000	±20%	10µH	100kHz	105 mOhm Max	2A	1.33A	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1375-1	Lead free / RoHS Compliant
SC53LC-220 INDUCTOR SMD 22UH 0.86A 100KHZ Signal Transformers	10	¥4.09	-	2,000	±20%	22µH	100kHz	190 mOhm Max	1.28A	860mA	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1377-1	Lead free / RoHS Compliant
SC53LC-2R0 INDUCTOR SMD 2.0UH 2.92A 100KHZ Signal Transformers	10	¥4.09	-	2,000	±30%	2µH	100kHz	38 mOhm Max	3.6A	2.92A	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1371-1	Lead free / RoHS Compliant
SC53LC-3R3 INDUCTOR SMD 3.3UH 2.36A 100KHZ Signal Transformers	10	¥4.09	-	2,000	±30%	3.3µH	100kHz	51 mOhm Max	3.42A	2.36A	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1372-1	Lead free / RoHS Compliant
SC53LC-4R7 INDUCTOR SMD 4.7UH 1.87A 100KHZ Signal Transformers	10	¥4.09	-	2,000	±30%	4.7µH	100kHz	60 mOhm Max	2.8A	1.87A	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1373-1	Lead free / RoHS Compliant
SC53LC-6R8 INDUCTOR SMD 6.8UH 1.51A 100KHZ Signal Transformers	1565	¥4.09	-	2,000	±30%	6.8µH	100kHz	76 mOhm Max	2.27A	1.51A	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1374-1	Lead free / RoHS Compliant
SC53LC-150 INDUCTOR SMD 15UH 1.05A 100KHZ Signal Transformers	10	¥4.09	-	2,000	±20%	15µH	100kHz	126 mOhm Max	1.6A	1.05A	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1376-1	Lead free / RoHS Compliant
SC53LC-470 INDUCTOR SMD 47UH 0.62A 100KHZ Signal Transformers	10	¥2.37	-	2,000	±20%	47µH	100kHz	415 mOhm Max	870mA	620mA	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1378-1	Lead free / RoHS Compliant
SC53LC-101 INDUCTOR SMD 100UH 0.43A 100KHZ Signal Transformers	10	¥4.09	-	2,000	±20%	100µH	100kHz	860 mOhm Max	580mA	430mA	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	595-1379-1	Lead free / RoHS Compliant
SC53LC-151 INDUCTOR SMD 150UH 0.21A 100KHZ Signal Transformers	10	¥2.49	-	2,000	±20%	150µH	100kHz	1.24 Ohm Max	460mA	210mA	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	-	-
SC53LC-221 INDUCTOR SMD 220UH 0.18A 100KHZ Signal Transformers	10	¥2.49	-	2,000	±20%	220µH	100kHz	2.04 Ohm Max	390mA	180mA	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	-	-
SC53LC-330 INDUCTOR SMD 33UH 0.72A 100KHZ Signal Transformers	10	¥2.49	-	2,000	±20%	33µH	100kHz	288 mOhm Max	1.09A	720mA	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	-	-
SC53LC-680 INDUCTOR SMD 68UH 0.51A 100KHZ Signal Transformers	10	¥2.49	-	2,000	±20%	68µH	100kHz	545 mOhm Max	730mA	510mA	Tape & Reel (TR)	Shielded	Surface Mount	Non Standard	0.209" L x 0.209" W (5.30mm x 5.30mm)	0.118" (3.00mm)	-	-
