RHE2R supercapacitors / ultracapacitor 系列
Ioxus, Inc.High-capacity hybrid snap-in supercapacitors for energy storage applications
系列图片（11 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
RHE2R supercapacitors / ultracapacitor - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | RoHS | 容差 | 电容 | 额定电压 | ESR（等效串联电阻） | 直径 | 引脚间距 | 封装形式 | 尺寸/外形 | 端接样式 | 工作温度 | 电压 | 漏电流 | 电阻公差 | 高度 | 引脚直径 | 柱间距 | 安装类型 | 电气寿命 | 工厂包装数量 | 供电电压 | 输入电容值 | 深度 | 导线线规 | 连接器间距 | 系列 | 功能 | 工作范围 | 包装方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

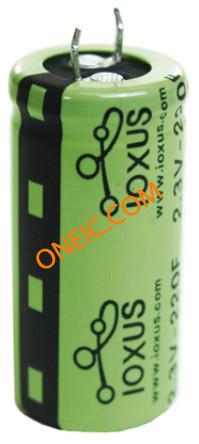

 RHE2R3227SR Supercapacitors / Ultracapacitors 220F 2.3V HYBRID SNAP-IN Ioxus 25 (ac) mΩ, 40 (dc) mΩ Ioxus 220F 电双层电容器 -5 → +10% Tolerance Snap-In Hybrid, Supercap RHE Series 2.3 V Ioxus | 809 | ¥70.37 | - | Supercapacitors | RoHS Compliant | 10 % | 220 Farads | 2.3 V | 45 mOhms | 22 mm | 10 mm | 45 mm | 22 mm Dia. x 45 mm L | Snap In | - 25 C to + 60 C | 2.3 V | 0.2 mA | -5% | 45mm | 2mm | 10mm | Through Hole | 1000h | 250 | 2.3 V | Supercapacitor | 45mm | 2mm | 10mm | Snap-In Hybrid, Supercap RHE | Y | 1000h | - |

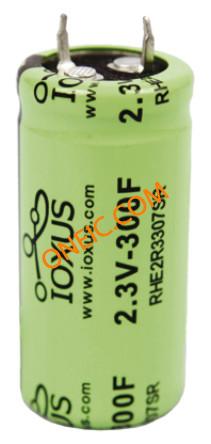

 RHE2R3307SR Supercapacitors / Ultracapacitors 300F 2.3V HYBRID SNAP-IN Ioxus 15 (ac) mΩ, 25 (dc) mΩ Ioxus | 804 | ¥70.88 | - | Supercapacitors | RoHS Compliant | 10 % | 300 Farads | 2.3 V | 35 mOhms | 22 mm | 10 mm | 45 mm | 22 mm Dia. x 45 mm L | Snap In | - 25 C to + 60 C | 2.3 V | 0.55 mA | -5% | 45mm | 2mm | 10mm | Through Hole | 1000h | 250 | - | - | - | - | - | - | - | - | - |
 | 14 | ¥238.03 | - | Supercapacitors | RoHS Compliant | 10 % | 800 Farads | 2.3 V | 15 mOhms | 35 mm | 10 mm | 68 mm | 35 mm Dia. x 68 mm L | Snap In | - 25 C to + 60 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

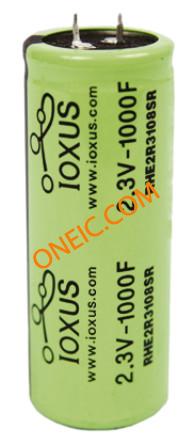

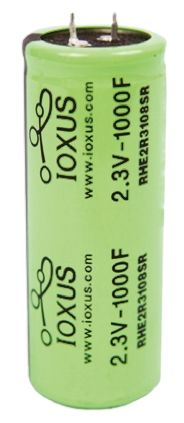

 RHE2R3108SR Supercapacitors / Ultracapacitors 1000F 2.3V HYBRID SNAP-IN Ioxus 14 (dc) mΩ, 7 (ac) mΩ Ioxus 1000F 电双层电容器 -5 → +10% Tolerance Snap-In Hybrid, Supercap RHE Series 2.3 V Ioxus | 184 | ¥308.71 | - | Supercapacitors | RoHS Compliant | 10 % | 1000 Farads | 2.3 V | 14 mOhms | 35 mm | 10 mm | 88 mm | 35 mm Dia. x 88 mm L | Snap In | - 25 C to + 60 C | 2.3 V | 0.7 mA | -5% | 88mm | 2mm | 10mm | Through Hole | 1000h | 30 | 2.3 V | Supercapacitor | 88mm | 2mm | 10mm | Snap-In Hybrid, Supercap RHE | Y | 1000h | - |

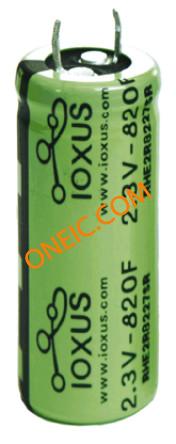

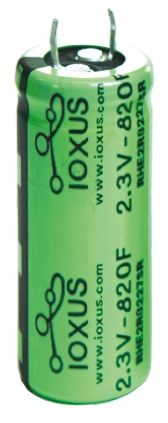

 RHE2R3827SR Supercapacitors / Ultracapacitors 820F 2.3V HYBRID SNAP-IN Ioxus 12 (dc) mΩ, 6 (ac) mΩ Ioxus 820F 电双层电容器 -5 → +10% Tolerance Snap-In Hybrid, Supercap RHE Series 2.3 V Ioxus | 226 | ¥251.09 | - | Supercapacitors | RoHS Compliant | -5 → +10% | 820F | 2.3 V | 12 (dc) mΩ, 6 (ac) mΩ | 27mm | 10 mm | 80 mm | 27 x 80mm | Snap In | +60°C | 2.3 V | 0.5 mA | -5% | 80mm | 2mm | 10mm | Through Hole | 1000h | - | 2.3 V | Supercapacitor | 80mm | 2mm | 10mm | Snap-In Hybrid, Supercap RHE | Y | 1000h | Bulk |
第 1 / 1 页
