PDA012 power supplies - external/internal (off-board) 系列
Phihong Technology Co., Ltd.12W LED电源，具有恒流特性，适用于各种电压范围
Phihong Technology Co., Ltd. 的PDA012系列是一款12W恒流输出LED电源，适用于广泛的电压需求，使其在各种照明应用中具有很高的灵活性。如果您正在从事涉及LED照明的项目，特别是需要精确电流控制的项目，这些电源可能非常适合。值得一提的是，它们体积小巧，便于根据您的需求轻松集成到外部和内部系统中。当工程师需要可靠且稳定的LED恒流电源，而又不想使用体积较大、结构更复杂的电源时，往往会选择这款产品。另一个实用之处在于其高效率；尽管功率较低，但在LED照明领域却有较高的需求，因此这些电源在性能和能耗之间提供了良好的平衡。总体而言，如果您正在寻找一款简单高效且适用于LED照明项目的解决方案，PDA012系列绝对值得考虑。
系列图片（5 张）
文档与媒体
常见问答
PDA012 power supplies - external/internal (off-board) - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 认证机构 | 效率 | 输出功率 | 功率（瓦） | 工作模式 | 额定电压 | 输出电流 | 输出数量 | 隔离电压 | 最小输入电压 | 输出电流/通道 | 重量 | 面板安装类型 | 尺寸/外形 | 端接样式 | 类型 | 产品特性 | 拓扑 | 额定等级 | 工作温度 | 安装样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

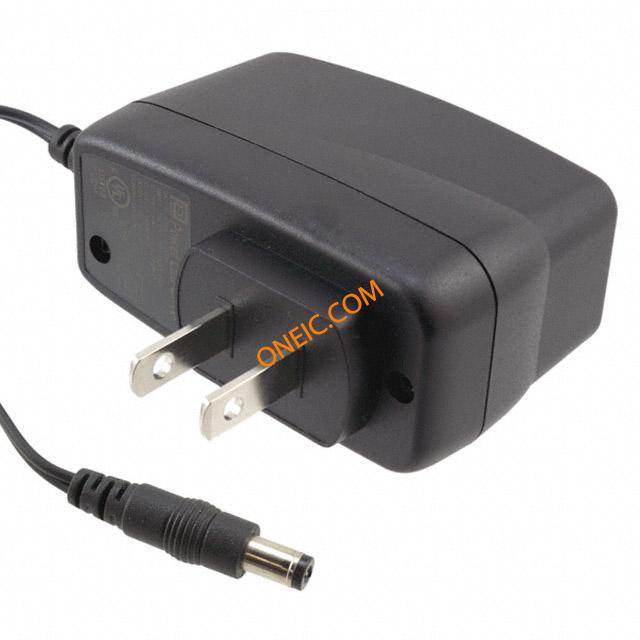

 LED SUPPLY CC AC/DC 6-8V 1.5A LED Drivers Power Supplies 12W 6-8V 1.5A Wall Plug CC LED PS PHIHONG USA | 69 | 1: ¥107.576 | - | 1 | RoHS Compliant | cULus | Level V | 12 W | 12W | Constant Current (CC) | 90 VAC to 132 VAC | 1.5A | 1 | 3kV (3000V) | 6 ~ 8 V | 1500 mA | 0.187 lb (84.82g) | Enclosed | 2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm) | 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female | Constant Current | OCP, OVP, SCP | AC DC Converter | IP20 | 0°C ~ 40°C | - | - |
 LED SUPPLY CC AC/DC 6-12V 1A LED Drivers Power Supplies 12W 6-12V 1A Wall Plug CC LED PS PHIHONG USA | 68 | 1: ¥107.576 | - | 1 | RoHS Compliant | cULus | Level V | 12 W | 12W | Constant Current (CC) | 90 VAC to 132 VAC | 1A | 1 | 3kV (3000V) | 6 ~ 12 V | 1000 mA | 0.187 lb (84.82g) | Enclosed | 2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm) | 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female | Constant Current | OCP, OVP, SCP | AC DC Converter | IP20 | 0°C ~ 40°C | - | - |
LED SUPPLY CC AC/DC 9-17V 0.7A LED SUPPLY CC AC/DC 9-17V 700MA LED Drivers Power Supplies 12W 9-17V 700mA Wall Plug CC LED PS PHIHONG USA | 133 | 1: ¥94.588 | - | 1 | RoHS Compliant | cULus | Level V | 12 W | 12W | Constant Current (CC) | 90 VAC to 132 VAC | 700mA | 1 | 3kV (3000V) | 9 ~ 17 V | 700 mA | 0.187 lb (84.82g) | Enclosed | 2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm) | 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female | Constant Current | OCP, OVP, SCP | AC DC Converter | IP20 | 0°C ~ 40°C | - | - |
 LED SUPPLY CC AC/DC 17-34V 0.35A LED SUPPLY CC AC/DC 17-34V 350MA LED Power Supplies 12W 17-34V 350mA Wall Plug CC LED PS PHIHONG USA | 38 | 1: ¥94.588 | - | 1 | RoHS Compliant | cULus | Level V | 12 W | 12W | Constant Current (CC) | 90 VAC to 132 VAC | 350mA | 1 | 3kV (3000V) | 17 ~ 34 V | 350 mA | 0.187 lb (84.82g) | Enclosed | 2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm) | 2.1mm I.D. x 5.5mm O.D. x 9.5mm Female | Constant Current | OCP, OVP, SCP | AC DC Converter | IP20 | 0°C ~ 40°C | - | - |

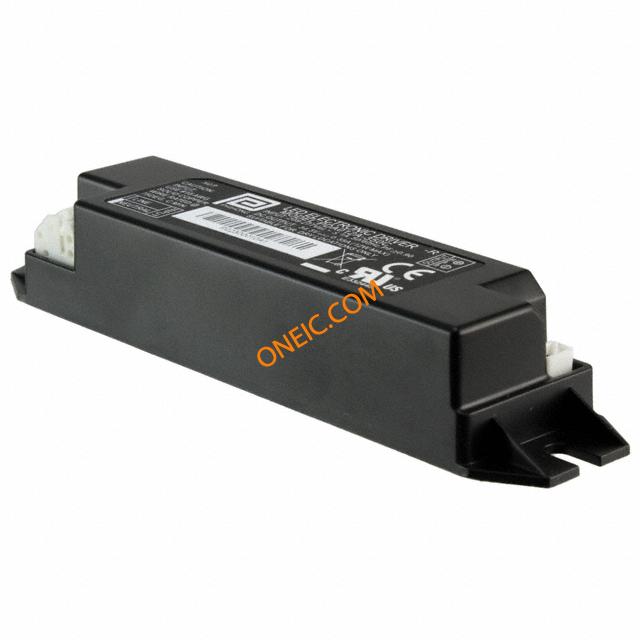

 LED SUPPLY CC AC/DC 20-34.4V LED Drivers Power Supplies 12W 20-34.3V 350mA LED PS 100-136Vin CC PHIHONG USA | 10 | 1: ¥163.948 | - | 1 | RoHS Compliant | CE, cULus | 77% | 12 W | 12W | Constant Current (CC) | 100 VAC to 136 VAC | 350mA | 1 | 3kV (3000V) | 20 ~ 34.4 V | 350 mA | 0.331 lb (150.14g) | Enclosed | 5.20" L x 1.20" W x 0.90" H (132.0mm x 30.0mm x 22.0mm) | Connector | Constant Current | OCP, OTP, OVP, SCP | AC DC Converter | IP20 | -40°C ~ 50°C | Screw | Chassis Mount |

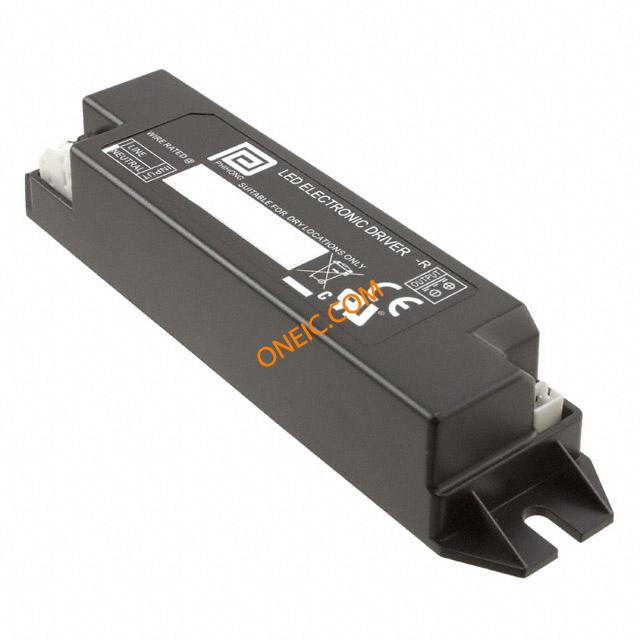

 LED SUPPLY CC AC/DC 20-34.4V LED Power Supplies 12W 20-34.3V 350mA LED PS 185-304Vin CC PHIHONG USA | 10 | 1: ¥163.948 | - | 1 | RoHS Compliant | CE, cULus | 75% | 12 W | 12W | Constant Current (CC) | 185 VAC to 304 VAC | 350mA | 1 | 3kV (3000V) | 20 ~ 34.4 V | 350 mA | 0.331 lb (150.14g) | Enclosed | 2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm) | Connector | Constant Current | OCP, OTP, OVP, SCP | AC DC Converter | IP20 | -40°C ~ 50°C | Screw | - |
LED SUPPLY CC AC/DC 20-34.4 LED SUPPLY CC AC/DC 20-34.4V LED Power Supplies 12W 20-34.3V 350mA Long Life LED Driver PHIHONG USA | 10 | 100: ¥1.1784 | - | 1 | RoHS Compliant | CE, cULus | 75% | 12 W | 12W | Constant Current (CC) | 185 VAC to 304 VAC | 350mA | 1 | 3kV (3000V) | 20 ~ 34.4 V | 350 mA | 0.331 lb (150.14g) | Enclosed | 2.81" L x 1.33" W x 1.81" H (71.5mm x 33.8mm x 46.0mm) | Connector | Constant Current | OCP, OTP, OVP, SCP | AC DC Converter | IP20 | -40°C ~ 50°C | Screw | - |
LED SUPPLY CC AC/DC 20-34.4V LED Drivers Power Supplies 12W 20-34.3V 350mA Long Life LED Driver PHIHONG USA | 10 | 1: ¥438.736 | - | 1 | RoHS Compliant | CE, cULus | 77% | 12 W | 12W | Constant Current (CC) | 100 VAC to 136 VAC | 350mA | 1 | 3kV (3000V) | 20 ~ 34.4 V | 350 mA | 0.331 lb (150.14g) | Enclosed | 5.20" L x 1.20" W x 0.90" H (132.0mm x 30.0mm x 22.0mm) | Connector | Constant Current | OCP, OTP, OVP, SCP | AC DC Converter | IP20 | -40°C ~ 50°C | Screw | Chassis Mount |
