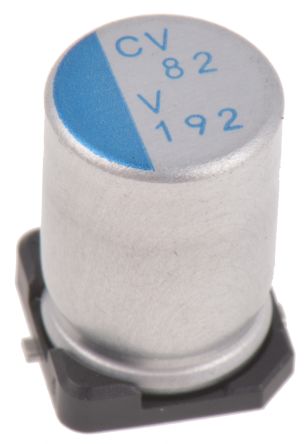

PCV1V passive component 系列
Nichicon CorporationSMD aluminum polymer capacitors, 35V, various capacitances, 20% tolerance
系列图片（24 张）
常见问答
PCV1V passive component - 型号列表
共 14 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | RoHS | 容差 | 电容 | 额定电压 | 漏电流 | 高频纹波电流 | ESR（等效串联电阻） | 直径 | 包装方式 | 端接方式 | 封装形式 | 刀片材料 | 端接样式 | 系列 | 产品子类型 | 工作温度 | 外壳尺寸-插件 | 供电电压 | 电阻公差 | 高度 | 导线线规 | 尺寸/外形 | 连接器间距 | 外壳尺寸-插入件（转换至） | 功能 | 技术 | 工作范围 | 额定寿命 | 损耗角正切（DF） | 尺寸 | 制造商 | 端部尺寸（如SMD/SMT、14mm等） | 本体尺寸 | 外径-未扩张 | 机械寿命 | 结工作温度 | ESR | 类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PCV1V560MCL1GS Aluminum Organic Polymer Capacitors 56uF 35V 20% CAP ALUM 56UF 35V 20% SMD Nichicon 56μF ±20% 31mΩ 35V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap56uF35V20%SMT Nichicon CV 系列 56μF 35 V 聚合体 铝聚合物电容器 , ±20%容差, 31mΩ, 5101-1封装 Nichicon | 392 | ¥5.40 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 56 uF | 35 V | 392 μA | 1.9A | 31 mOhms | 8 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 8mmDia.x10 | 35 V | -20% | 10mm | 1.1mm | 8 mm Dia. x 10 mm L | 3.2mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - | - | - | - | - | - | - | - | - |
PCV1V151MCL1GS Aluminum Organic Polymer Capacitors 150uF 35V 20% CAP ALUM 150UF 35V 20% SMD Nichicon 150μF ±20% 28mΩ 35V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap150uF35V20%SMT Nichicon CV 系列 150μF 35 V 聚合体 铝聚合物电容器 , ±20%容差, 28mΩ, 5101-1封装 Nichicon | 820 | ¥9.36 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 150 uF | 35 V | 1050 μA | 2.6A | 28 mOhms | 10 mm | Reel | SMT | 12.7 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 10mmDia.x12.7 | 35 V | -20% | 12.7mm | 1.1mm | 10 mm Dia. x 12.7 mm L | 4.6mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - | - | - | - | - | - | - | - | - |
PCV1V270MCL1GS Aluminum Organic Polymer Capacitors 27uF 35V 20% CAP ALUM 27UF 35V 20% SMD Nichicon 27μF ±20% 55mΩ 35V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap27uF35V20%SMT Nichicon CV 系列 27μF 35 V 聚合体 铝聚合物电容器 , ±20%容差, 55mΩ, 5101-1封装 Nichicon | 5033 | ¥5.09 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 27 uF | 35 V | 189 μA | 1.2A | 55 mOhms | 8 mm | Reel | SMT | 7 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 8mmDia.x7 | 35 V | -20% | 7mm | 1.1mm | 8 mm Dia. x 7 mm L | 3.2mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - | - | - | - | - | - | - | - | - |
PCV1V820MCL1GS Aluminum Organic Polymer Capacitors 82uF 35V 20% CAP ALUM 82UF 35V 20% SMD Nichicon 82μF ±20% 29mΩ 35V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap82uF35V20%SMT Nichicon CV 系列 82μF 35 V 聚合体 铝聚合物电容器 , ±20%容差, 29mΩ, 5101-1封装 Nichicon | 300 | ¥5.40 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 82 uF | 35 V | 574 μA | 2.2A | 29 mOhms | 8 mm | Reel | SMT | 12 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 8mmDia.x12 | 35 V | -20% | 12mm | 1.1mm | 8 mm Dia. x 12 mm L | 3.2mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - | - | - | - | - | - | - | - | - |
 PCV1V180MCL1GS Aluminum Organic Polymer Capacitors 18uF 35V 20% CAP ALUM 18UF 35V 20% SMD Nichicon 18μF ±20% 64mΩ 35V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap18uF35V20%SMT Nichicon CV 系列 18μF 35 V 聚合体 铝聚合物电容器 , ±20%容差, 64mΩ, 5101-1封装 Nichicon | 1000 | ¥3.82 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 18 uF | 35 V | 126 μA | 900mA | 64 mOhms | 6.3 mm | Reel | SMT | 6 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 6.3mmDia.x6 | 35 V | -20% | 6mm | 0.8mm | 6.3 mm Dia. x 6 mm L | 2.1mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - | - | - | - | - | - | - | - | - |
PCV1V680MCL1GS Aluminum Organic Polymer Capacitors 68uF 35V 20% CAP ALUM 68UF 35V 20% SMD Nichicon 68μF ±20% 37mΩ 35V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap68uF35V20%SMT Nichicon CV 系列 68μF 35 V 聚合体 铝聚合物电容器 , ±20%容差, 37mΩ, 5101-1封装 Nichicon | 354 | ¥5.70 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 68 uF | 35 V | 476 μA | 1.8A | 37 mOhms | 10 mm | Reel | SMT | 8 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 10mmDia.x8 | 35 V | -20% | 8mm | 1.1mm | 10 mm Dia. x 8 mm L | 4.6mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - | - | - | - | - | - | - | - | - |
PCV1V101MCL1GS Aluminum Organic Polymer Capacitors 100uF 35V 20% CAP ALUM 100UF 35V 20% SMD Nichicon 100μF ±20% 29mΩ 35V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap100uF35V20%SMT Nichicon CV 系列 100μF 35 V 聚合体 铝聚合物电容器 , ±20%容差, 29mΩ, 5101-1封装 Nichicon | 108 | ¥6.52 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 100 uF | 35 V | 700 uA | 2200 mA | 29 mOhms | 10 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 10mmDia.x10 | 35 V | -20% | 10mm | 1.1mm | 10 mm Dia. x 10 mm L | 4.6mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | 3000 h | 0.12 | - | - | - | - | - | - | - | - | - |
 PCV1V820MCL2GS アルミ有機ポリマコンデンサ 35V 82uF 105C CAP ALUM 82UF 35V 20% SMD Aluminum Organic Polymer Capacitors 35V 82uF 105C Capacitor;AluminumOrganic;Cap82uF;Tol20%;Vol-Rtg35VDC;SMT Nichicon | 4880 | ¥14.14 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS 認証 | 20 % | 82 uF | 35 V | 574 uA | 3000 mA | 27 mOhms | 10 mm | Reel | SMT | Reel | AluminumOrganic | SMD/SMT | CV | Organic Polymer Aluminum - SMD Capacitors | - 55 C to + 105 C | - | - | - | - | - | - | - | - | - | - | - | 3000 h | 0.12 | 10 mm Dia. x 8 mm L | Nichicon | SMD/SMT | 8 mm | 10 mm | 新製品: このメーカーの新製品 | - 55 C to + 105 C | - | - |
PCV1V220MCL2GS アルミ有機ポリマコンデンサ 35V 22uF 105C CAP ALUM 22UF 35V 20% SMD Aluminum Organic Polymer Capacitors 35V 22uF 105C Capacitor;AluminumOrganic;Cap22uF;Tol20%;Vol-Rtg35VDC;SMT;6.3x6mm Nichicon | 985 | ¥4.32 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS 認証 | 20 % | 22 uF | 35 V | 154 uA | 1300 mA | 50 mOhms | 6.3 mm | Reel | SMT | Reel | AluminumOrganic | SMD/SMT | CV | Organic Polymer Aluminum - SMD Capacitors | - 55 C to + 105 C | 6.3mmDia.x6 | - | - | - | - | - | - | - | - | - | - | 3000 h | 0.12 | 6.3 mm Dia. x 6 mm L | Nichicon | SMD/SMT | 6 mm | 6.3 mm | 新製品: このメーカーの新製品 | - 55 C to + 105 C | - | - |
 PCV1V121MCL7GS アルミ有機ポリマコンデンサ 35V 120uF 105C CAP ALUM 120UF 35V 20% SMD Aluminum Organic Polymer Capacitors 35V 120uF 105C Capacitor;AluminumOrganic;Cap120uF;Tol20%;Vol-Rtg35VDC;SMT;8x12mm Nichicon | 400 | ¥11.95 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 120 uF | 35 V | 840 uA | 3800 mA | 23 mOhms | 8 mm | Reel | SMT | 12 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 8mmDia.x12mmL | - | - | - | - | - | - | - | - | - | - | 3000 h | 0.12 | - | - | - | - | - | - | - | - | - |
 PCV1V390MCL2GS Aluminum Organic Polymer Capacitors 35V 39uF 105C CAP ALUM 39UF 35V 20% SMD Capacitor;AluminumOrganic;Cap39uF;Tol20%;Vol-Rtg35VDC;SMT;8x7mm CV Series 35 v 39 uf 105'c 8x7mm Low ESR. High Ripple SMD Aluminum Polymer Nichicon | 2975 | ¥7.42 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 39 uF | 35 V | 273 uA | 1400 mA | 52 mOhms | 8 mm | Reel | SMT | 7 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 8mmDia.x7mmL | - | - | - | - | - | - | - | - | - | - | 3000 Hrs @ 105°C | - | 0.315" Dia (8.00mm) | - | - | - | - | - | - | 52 mOhm | Polymer |
 PCV1V121MCL2GS アルミ有機ポリマコンデンサ 35V 120uF 105C CAP ALUM 120UF 35V 20% SMD Aluminum Organic Polymer Capacitors 35V 120uF 105C Capacitor;AluminumOrganic;Cap120uF;Tol20%;Vol-Rtg35VDC;SMT;10x10mm CV Series 35 V 120 uF SMT Organic Conductive Polymer Capacitor Nichicon | 4452 | ¥16.11 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 120 uF | 35 V | 840 uA | 3700 mA | 24 mOhms | 10 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 10mmDia.x10mmL | - | - | - | - | - | - | - | - | - | - | 3000 h | 0.12 | 0.394" Dia (10.00mm) | - | - | - | - | - | - | 24 mOhm | Polymer |
 PCV1V820MCL7GS Aluminum Organic Polymer Capacitors 35V 82uF 105C CAP ALUM 82UF 35V 20% SMD Capacitor;AluminumOrganic;Cap82uF;Tol20%;Vol-Rtg35VDC;SMT;8x10mm Nichicon | 2223 | ¥12.91 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 82 uF | 35 V | 574 uA | 3600 mA | 24 mOhms | 8 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 8mmDia.x10mmL | - | - | - | - | - | - | - | - | - | - | 3000 h | 0.12 | - | - | - | - | - | - | - | - | - |
PCV1V181MCL2GS CAP ALUM 180UF 35V 20% SMD Aluminum Organic Polymer Capacitors 35V 180uF 105C Capacitor;AluminumOrganic;Cap180uF;Tol20%;Vol-Rtg35VDC;SMT;10x12.7mm Nichicon | 8756 | ¥20.53 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 180 uF | 35 V | 1260 uA | 4100 mA | 22 mOhms | 10 mm | Reel | SMT | 12.7 mm | AluminumOrganic | SMD/SMT | CV | Can | - 55 C to + 105 C | 10mmDia.x12.7 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
