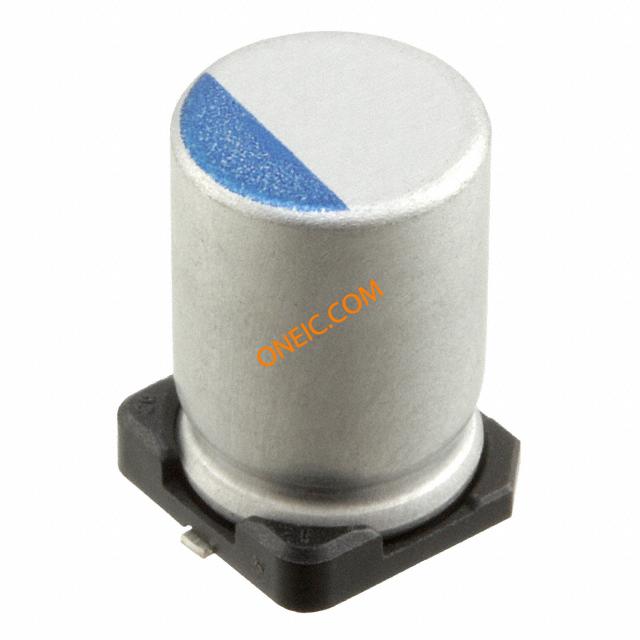

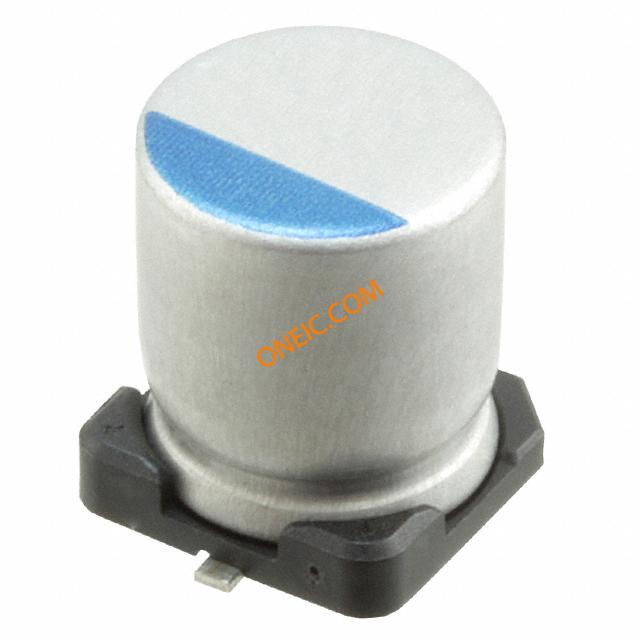

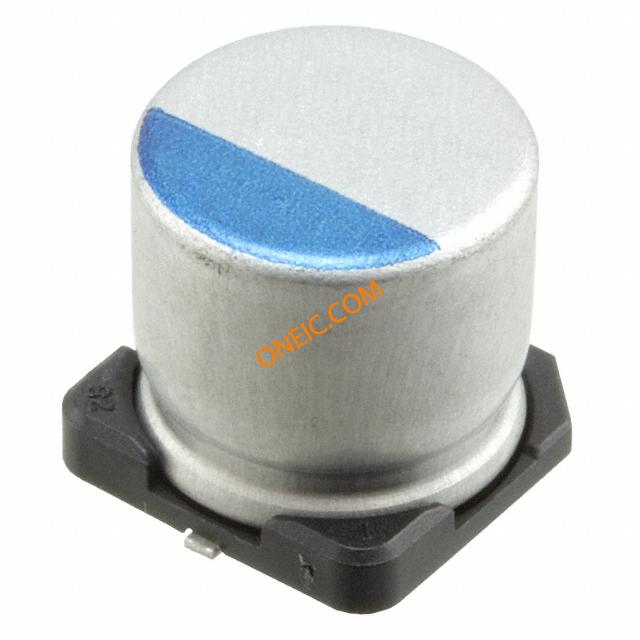

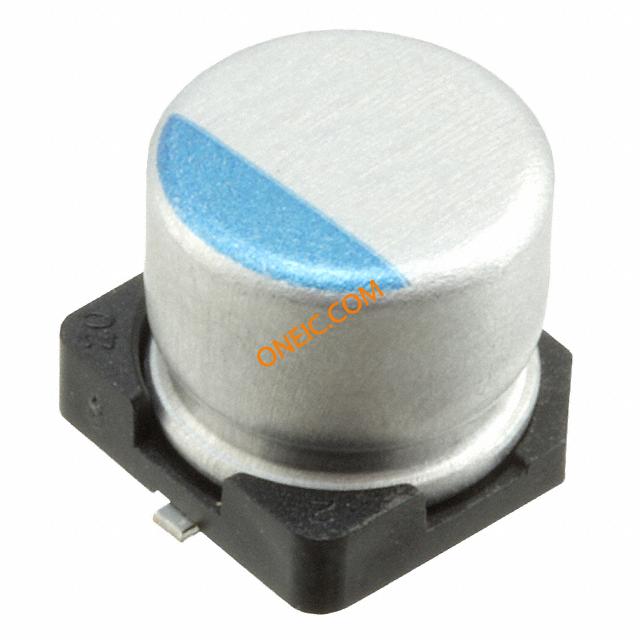

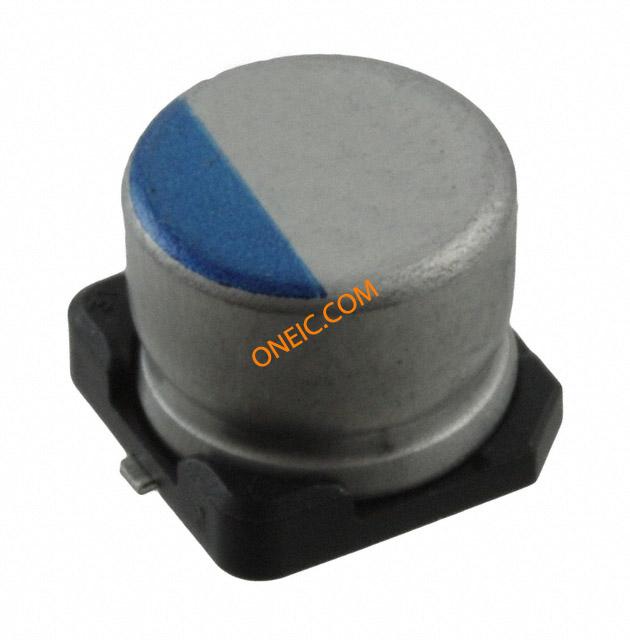

PCV1H passive component 系列
Nichicon CorporationSMD aluminum polymer capacitors, 50V, various capacitances, 20% tolerance
系列图片（23 张）
常见问答
PCV1H passive component - 型号列表
共 14 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | RoHS | 容差 | 电容 | 额定电压 | ESR（等效串联电阻） | 直径 | 包装方式 | 端接方式 | 封装形式 | 刀片材料 | 端接样式 | 外壳尺寸-插件 | 产品子类型 | 工作温度 | 高频纹波电流 | 漏电流 | 系列 | 额定寿命 | 尺寸/外形 | 损耗角正切（DF） | 供电电压 | 电阻公差 | 高度 | 导线线规 | 连接器间距 | 外壳尺寸-插入件（转换至） | 功能 | 技术 | 工作范围 | ESR | 尺寸 | 类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PCV1H680MCL1GS Aluminum Organic Polymer Capacitors 68uF 50 Volts 20% CAP ALUM 68UF 50V 20% SMD Nichicon 68μF ±20% 29mΩ 50V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap68uF50V20%SMT Nichicon CV 系列 68μF 50 V 聚合体 铝电解电容器 , ±20%容差, 29mΩ, 5101-1封装 Nichicon | 350 | ¥8.35 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 68 uF | 50 V | 29 mOhms | 10 mm | Reel | SMT | 12.7 mm | AluminumOrganic | SMD/SMT | 10mmDia.x12.7 | Can | - 55 C to + 105 C | 2.6A | 680 μA | CV | - | 10 mm Dia. x 12.7 mm L | - | 50 V | -20% | 12.7mm | 1.1mm | 4.6mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - |
PCV1H330MCL1GS Aluminum Organic Polymer Capacitors 33uF 50 Volts 20% CAP ALUM 33UF 50V 20% SMD Nichicon 33μF ±20% 49mΩ 50V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap33uF50V20%SMT Nichicon CV 系列 33μF 50 V 聚合体 铝聚合物电容器 , ±20%容差, 49mΩ, 5101-1封装 Nichicon | 100 | ¥5.43 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 33 uF | 50 V | 49 mOhms | 10 mm | Reel | SMT | 8 mm | AluminumOrganic | SMD/SMT | 10mmDia.x8 | Can | - 55 C to + 105 C | 1500 mA | 330 uA | CV | 3000 h | 10 mm Dia. x 8 mm L | 0.12 | 50 V | -20% | 8mm | 1.1mm | 4.6mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - |
 PCV1H8R2MCL1GS Aluminum Organic Polymer Capacitors 8.2uF 50V 20% CAP ALUM 8.2UF 50V 20% SMD Nichicon 8.2μF ±20% 81mΩ 50V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap8.2uF50V20%SMT Nichicon CV 系列 8.2μF 50 V 聚合体 铝聚合物电容器 , ±20%容差, 81mΩ, 5101-1封装 Nichicon | 2633 | ¥4.33 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 8.2 uF | 50 V | 81 mOhms | 6.3 mm | Reel | SMT | 6 mm | AluminumOrganic | SMD/SMT | 6.3mmDia.x6 | Can | - 55 C to + 105 C | 800mA | 82 μA | CV | - | 6.3 mm Dia. x 6 mm L | - | 50 V | -20% | 6mm | 0.8mm | 2.1mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - |
PCV1H330MCL6GS Aluminum Organic Polymer Capacitors 33uF 50V 20% CAP ALUM 33UF 50V 20% SMD CapacitorAluminumOrganicPolymerCap33uF50V20%SMT Nichicon | 15140 | ¥10.45 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 33 uF | 50 V | 36 mOhms | 8 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | 8mmDia.x10 | Can | - 55 C to + 105 C | - | - | - | - | 8 mm Dia. x 10 mm L | - | - | - | - | - | - | - | - | - | - | - | - | - |
PCV1H150MCL1GS Aluminum Organic Polymer Capacitors 15uF 50 Volts 20% CAP ALUM 15UF 50V 20% SMD Capacitor;AluminumOrganic;Cap15uF;Tol20%;Vol-Rtg50VDC;SMT;8x7mm Aluminum Capacitors Nichicon | 580 | ¥5.78 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 15 uF | 50 V | 63 mOhms | 8 mm | Reel | SMT | 7 mm | AluminumOrganic | SMD/SMT | 8mmDia.x7mmL | Can | - 55 C to + 105 C | 1.1A | - | - | 3000 Hrs @ 105°C | 8 mm Dia. x 7 mm L | - | - | - | - | - | - | - | - | - | - | 63 mOhm | 0.315" Dia (8.00mm) | Polymer |
PCV1H390MCL1GS Aluminum Organic Polymer Capacitors 39uF 50 Volts 20% CAP ALUM 39UF 50V 20% SMD Nichicon 39μF ±20% 34mΩ 50V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap39uF50V20%SMT Nichicon | 385 | ¥5.83 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 39 uF | 50 V | 34 mOhms | 8 mm | Reel | SMT | 12 mm | AluminumOrganic | SMD/SMT | 8mmDia.x12 | Can | - 55 C to + 105 C | - | - | - | - | 8 mm Dia. x 12 mm L | - | - | - | - | - | - | - | - | - | - | - | - | - |
PCV1H470MCL1GS Aluminum Organic Polymer Capacitors 47uF 50 Volts 20% CAP ALUM 47UF 50V 20% SMD Nichicon 47μF ±20% 30mΩ 50V SMD Aluminium Electrolytic Capacitor 5101-1 CapacitorAluminumOrganicPolymerCap47uF50V20%SMT Nichicon CV 系列 47μF 50 V 聚合体 铝聚合物电容器 , ±20%容差, 30mΩ, 5101-1封装 Nichicon | 3149 | ¥11.95 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 47 uF | 50 V | 30 mOhms | 10 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | 10mmDia.x10 | Can | - 55 C to + 105 C | 2.2A | 470 μA | CV | - | 10 mm Dia. x 10 mm L | - | 50 V | -20% | 10mm | 1.1mm | 4.6mm | 金属罐 | Y | 聚合体 | 1000 h, 3000 h | - | - | - |
 PCV1H560MCL2GS アルミ有機ポリマコンデンサ 50V 56uF 105C CAP ALUM 56UF 50V 20% SMD Aluminum Organic Polymer Capacitors 50V 56uF 105C Capacitor;AluminumOrganic;Cap56uF;Tol20%;Vol-Rtg50VDC;SMT;8x12mm Nichicon | 578 | ¥14.54 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 56 uF | 50 V | 28 mOhms | 8 mm | Reel | SMT | 12 mm | AluminumOrganic | SMD/SMT | 8mmDia.x12mmL | Can | - 55 C to + 105 C | 3400 mA | 560 uA | CV | 3000 h | - | 0.12 | - | - | - | - | - | - | - | - | - | - | - | - |
 PCV1H680MCL2GS アルミ有機ポリマコンデンサ 50V 68uF 105C CAP ALUM 68UF 50V 20% SMD Aluminum Organic Polymer Capacitors 50V 68uF 105C Capacitor;AluminumOrganic;Cap68uF;Tol20%;Vol-Rtg50VDC;SMT;10x10mm Nichicon | 19166 | ¥16.40 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 68 uF | 50 V | 29 mOhms | 10 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | 10mmDia.x10mmL | Can | - 55 C to + 105 C | 3400 mA | 680 uA | CV | 3000 h | - | 0.12 | - | - | - | - | - | - | - | - | - | - | - | - |
 PCV1H470MCL7GS アルミ有機ポリマコンデンサ 50V 47uF 105C CAP ALUM 47UF 50V 20% SMD Aluminum Organic Polymer Capacitors 50V 47uF 105C Capacitor;AluminumOrganic;Cap47uF;Tol20%;Vol-Rtg50VDC;SMT;8x10mm Nichicon | 4249 | ¥12.62 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 47 uF | 50 V | 29 mOhms | 8 mm | Reel | SMT | 10 mm | AluminumOrganic | SMD/SMT | 8mmDia.x10 | Can | - 55 C to + 105 C | 3300 mA | 470 uA | CV | 3000 h | - | 0.12 | - | - | - | - | - | - | - | - | - | - | - | - |
 PCV1H470MCL2GS Aluminum Organic Polymer Capacitors 50V 47uF 105C CAP ALUM 47UF 50V 20% SMD Capacitor;AluminumOrganic;Cap47uF;Tol20%;Vol-Rtg50VDC;SMT;10x8mm Nichicon | 10 | ¥6.65 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 47 uF | 50 V | 37 mOhms | 10 mm | Reel | SMT | 8 mm | AluminumOrganic | SMD/SMT | 10mmDia.x8mmL | Can | - 55 C to + 105 C | 2600 mA | 470 uA | CV | 3000 h | - | 0.12 | - | - | - | - | - | - | - | - | - | - | - | - |
 PCV1H220MCL2GS Aluminum Organic Polymer Capacitors 50V 22uF 105C CAP ALUM 22UF 50V 20% SMD Capacitor;AluminumOrganic;Cap22uF;Tol20%;Vol-Rtg50VDC;SMT;8x7mm Nichicon | 2672 | ¥7.33 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 22 uF | 50 V | 60 mOhms | 8 mm | Reel | SMT | 7 mm | AluminumOrganic | SMD/SMT | 8mmDia.x7mmL | Can | - 55 C to + 105 C | 1300 mA | 220 uA | CV | 3000 h | - | 0.12 | - | - | - | - | - | - | - | - | - | - | - | - |
PCV1H120MCL2GS Aluminum Organic Polymer Capacitors 50V 12uF 105C CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS CAP ALUM 12UF 50V 20% SMD Capacitor;AluminumOrganic;Cap12uF;Tol20%;Vol-Rtg50VDC;SMT;6.3x6mm Nichicon | 947 | ¥3.94 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 12 uF | 50 V | 55 mOhms | 6.3 mm | Reel | SMT | 6 mm | AluminumOrganic | SMD/SMT | 6.3mmDia.x6mmL | Can | - 55 C to + 105 C | 1200 mA | 120 uA | CV | 3000 h | - | 0.12 | - | - | - | - | - | - | - | - | - | - | - | - |
PCV1H101MCL2GS Aluminum Organic Polymer Capacitors 50V 100uF 105C CAP ALUM 100UF 50V 20% SMD Capacitor;AluminumOrganic;Cap100uF;Tol20%;Vol-Rtg50VDC;SMT;10x12.7mm Nichicon | 2010 | ¥19.98 | - | Organic Polymer Aluminum - SMD Capacitors | RoHS Compliant | 20 % | 100 uF | 50 V | 27 mOhms | 10 mm | Reel | SMT | 12.7 mm | AluminumOrganic | SMD/SMT | 10mmDia.x12.7 | Can | - 55 C to + 105 C | 3600 mA | 1000 uA | CV | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
