PAT0510S-C rf and microwave 系列
Susumu Co., Ltd.用于电子电路信号控制的表面贴装衰减器
Susumu Co., Ltd. 的 PAT0510S-C 系列是用于电子电路中精确信号控制的表面贴装射频和微波衰减器系列产品。这些衰减器常用于测试设备、通信系统和雷达系统中，用于降低信号电平而不影响信号的相位或频率特性。
如果您正在处理涉及射频或微波信号的任何项目，这些衰减器可以帮助在调整幅度的同时保持信号完整性。值得注意的是，它们体积小巧，非常适合空间受限的设计，而传统插件元件无法适应。工程师通常会选用这种衰减器，因为它提供了一种可靠的方法来衰减信号而不引入噪声或失真。另一个实际应用场景是在校准设置中，保持多次测试中的信号电平一致至关重要。通过这些衰减器可以精细调节信号强度，确保您的测试设置保持准确性和可重复性。

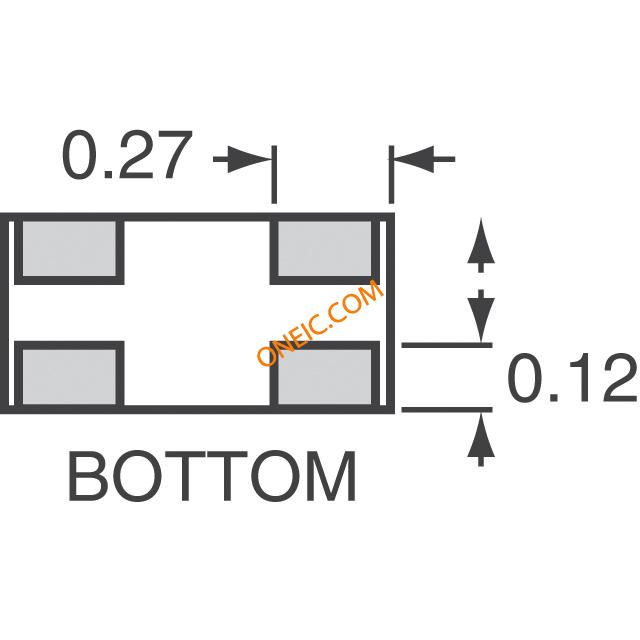

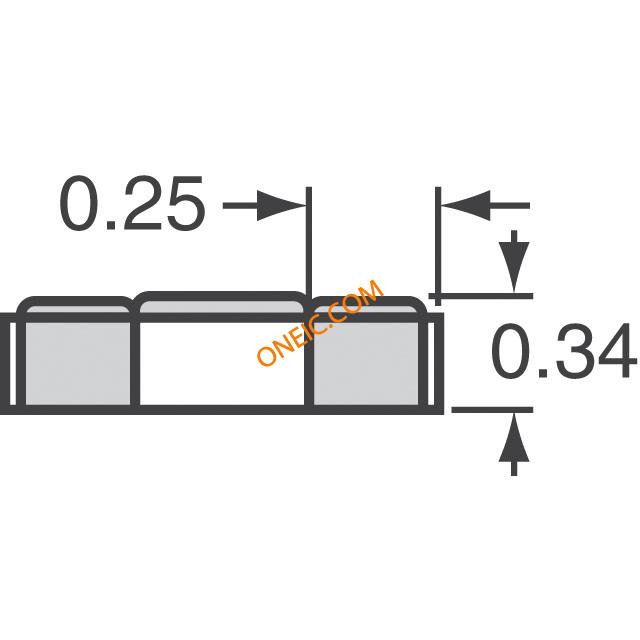

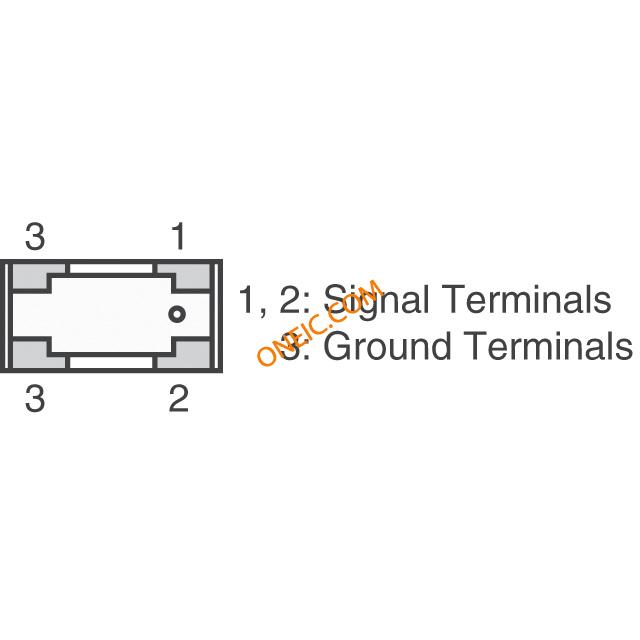

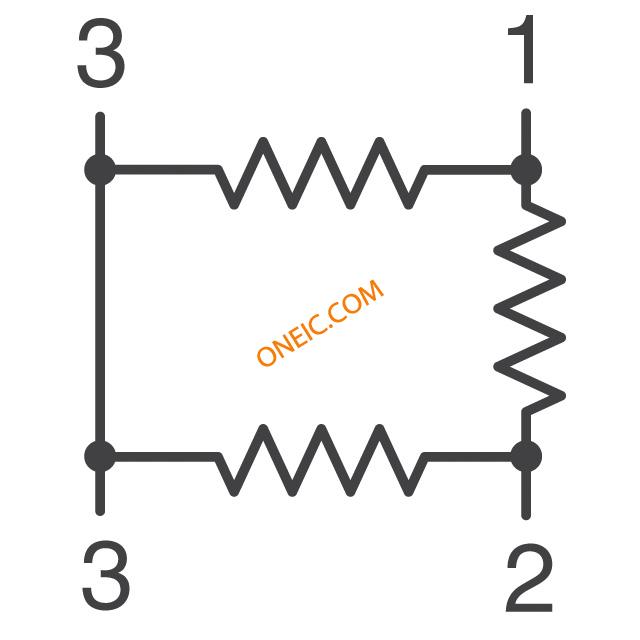

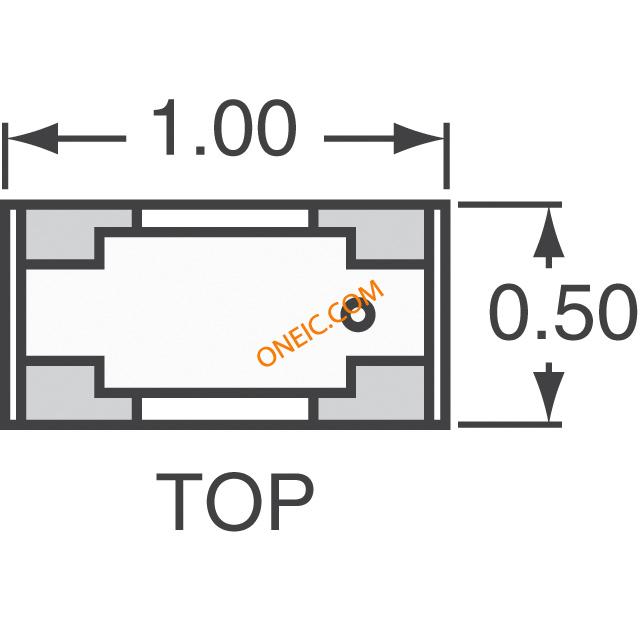

系列图片（6 张）
文档与媒体
常见问答
PAT0510S-C rf and microwave - 型号列表
共 11 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 工厂包装数量 | RoHS | VSWR | 阻抗 | 容差 | 最大功率 | 功率（瓦） | 额定功率 | 插入损耗 | 最大频率 | 最低频率 | 频率范围 | 典型衰减 | 衰减值 | 阻抗（最大）（Zzt） | 包装方式 | 安装样式 | 封装形式 | 制造商全称 | 工作温度 | 其他名称 | 已删除 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Attenuators - ICs 4dB 50ohm ATTENUATOR 4 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 4dB 4-Pin Chip T/R Attenuators 4dB 50ohm Susumu | 10000 | 10000: ¥0.2734 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.5dB | 32mW | 32mW | 32 mW | 4dB | 10 GHz | DC | 0 ~ 10GHz | 4 dB | 4dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | - 55 C | - | - |
Attenuators - ICs 1dB 50ohm ATTENUATOR 1 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 1dB 4-Pin Chip T/R Attenuators 1dB 50ohm Susumu | 10 | 1: ¥0.6974 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.3dB | 32mW | 32mW | 32 mW | 1dB | 10 GHz | DC | 0 ~ 10GHz | 1 dB | 1dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | - 55 C | PAT05S1CT | - |
Attenuators - ICs 5dB 50ohm ATTENUATOR 5 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 5dB 4-Pin Chip T/R Attenuators 5dB 50ohm Susumu | 14433 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.5dB | 32mW | 32mW | 32 mW | 5dB | 10 GHz | DC | 0 ~ 10GHz | 5 dB | 5dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | + 125 C | - | - |
Attenuators - ICs 9dB 50ohm ATTENUATOR 9 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 9dB 4-Pin Chip T/R Attenuators 9dB 50ohm Susumu | 6001 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.5dB | 32mW | 32mW | 32 mW | 9dB | 10 GHz | DC | 0 ~ 10GHz | 9 dB | 9dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | + 125 C | - | - |
Attenuators - ICs 2dB 50ohm ATTENUATOR 2 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 2dB 4-Pin Chip T/R Attenuators 2dB 50ohm Susumu | 17863 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.3dB | 32mW | 32mW | 32 mW | 2dB | 10 GHz | DC | 0 ~ 10GHz | 2 dB | 2dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | - 55 C | PAT05S2CT | - |
Attenuators - ICs 0dB 50ohm ATTENUATOR 0 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 0dB 4-Pin SMD T/R Attenuators 0dB 50ohm Susumu | 13656 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.3dB | 32mW | 32mW | 32 mW | 0dB | 10 GHz | DC | 0 ~ 10GHz | 0 dB | 0dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | + 125 C | PAT05S0CT | - |
Attenuators - ICs 6dB 50ohm ATTENUATOR 6 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 6dB 4-Pin Chip T/R Attenuators 6dB 50ohm Susumu | 16570 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.5dB | 32mW | 32mW | 32 mW | 6dB | 10 GHz | DC | 0 ~ 10GHz | 6 dB | 6dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | - 55 C | PAT05S6CT | - |
Attenuators - ICs 3dB 50ohm ATTENUATOR 3 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 3dB 4-Pin Chip T/R Attenuators 3dB 50ohm Susumu | 3955 | 5: ¥0.7422 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.3dB | 32mW | 32mW | 32 mW | 3dB | 10 GHz | DC | 0 ~ 10GHz | 3 dB | 3dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | + 125 C | PAT05S3CT | - |
Attenuators - ICs 10dB 50ohm ATTENUATOR 10 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 10dB 4-Pin SMD T/R Attenuators 10dB 50ohm Susumu | 6745 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.5dB | 32mW | 32mW | 32 mW | 10dB | 10 GHz | DC | 0 ~ 10GHz | 10 dB | 10dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | + 125 C | PAT05S10CT | Compliant |
Attenuators - ICs 8dB 50ohm ATTENUATOR 8 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 8dB 4-Pin SMD T/R Attenuators 8dB 50ohm Susumu | 8278 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.5dB | 32mW | 32mW | 32 mW | 8dB | 10 GHz | DC | 0 ~ 10GHz | 8 dB | 8dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | + 125 C | PAT05S8CT | - |
Attenuators - ICs 7dB 50ohm ATTENUATOR 7 DB 50 OHM 0402 SMD Chip Attenuator 10GHz 7dB 4-Pin SMD T/R Attenuators 7dB 50ohm Susumu | 6391 | 1: ¥0.816 | - | 10,000 | 10000 | Lead free / RoHS Compliant | 1.3 | 50 Ohm | ±0.5dB | 32mW | 32mW | 32 mW | 7dB | 10 GHz | DC | 0 ~ 10GHz | 7 dB | 7dB | 50 Ohm | Reel | SMD/SMT | 0402 (1005 Metric) | Susumu | + 125 C | PAT05S7CT | - |
