OXYMAC50 sensor 系列
Honeywell International Inc.Board interfaces and sensors for oxygen and flow measurement applications
系列图片（13 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
OXYMAC50 sensor - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 精度 | 供电电压 | 系列 | 工作温度 | 交货时间 | 子类别 | 标准包装数量 | RoHS | 欧盟RoHS | 宽度 | 安装类型 | 总长度 | 位数 | 外壳尺寸-插件 | 附件类型 | 行业别名 | 印刷电路板数量 | 适用产品/相关产品 | 分辨率 | 灵敏度 | 输出信号 | 输出电流 | 压力范围 | 旋转寿命（最小循环次数） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

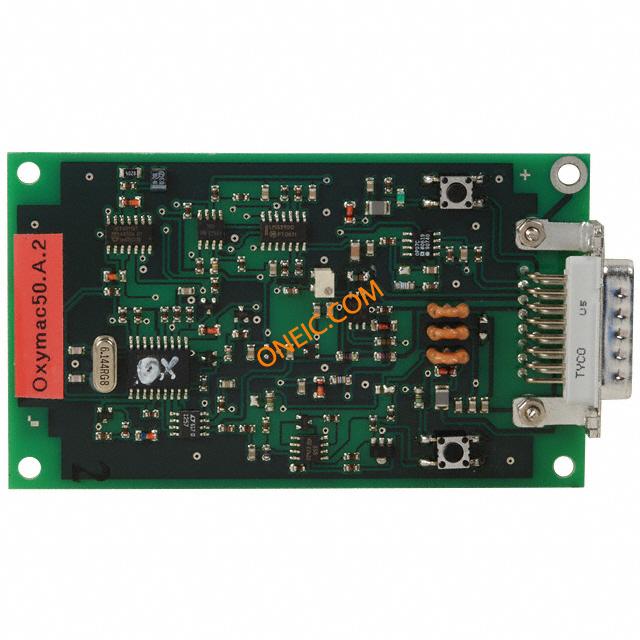

 OXYMAC50.A.2 Flow Sensors Board Interface KGZ/GMS 0-100% Oxygen Sensor 15-Pin BOARD INTERFACE KGZ/GMS 0-100% OxygenSensors Honeywell International Inc. | 0 | Flow Sensors | +/- 2 % Full Scale | 24 V | * | 60 | 70 Days | Sensor Misc | 1 | RoHS Compliant | Supplier Unconfirmed | 63 | Screw | 108 | 15 | 4 | * | OXYMAC 50.A.2 | 15 | * | - | - | - | - | - | - | |

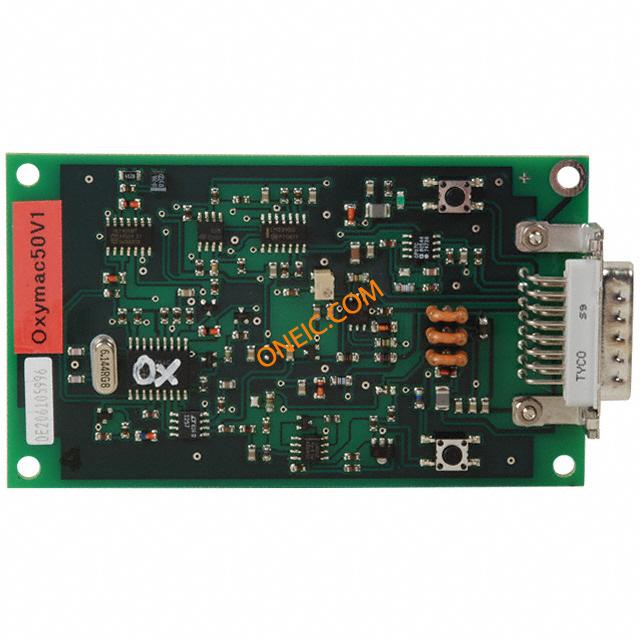

OXYMAC50.V.1 Flow Sensors Board Interface KGZ/GMS 0-25% Oxygen Sensor 15-Pin BOARD INTERFACE KGZ/GMS 0-25% OxygenSensors Honeywell International Inc. | 0 | Flow Sensors | +/- 2 % Full Scale | 24 V | * | 60 | 70 Days | Sensor Misc | 1 | RoHS Compliant | Compliant | 63 | Screw | 108 | 15 | 4 | * | OXYMAC 50.V.1 | 15 | * | - | - | - | - | - | - | |

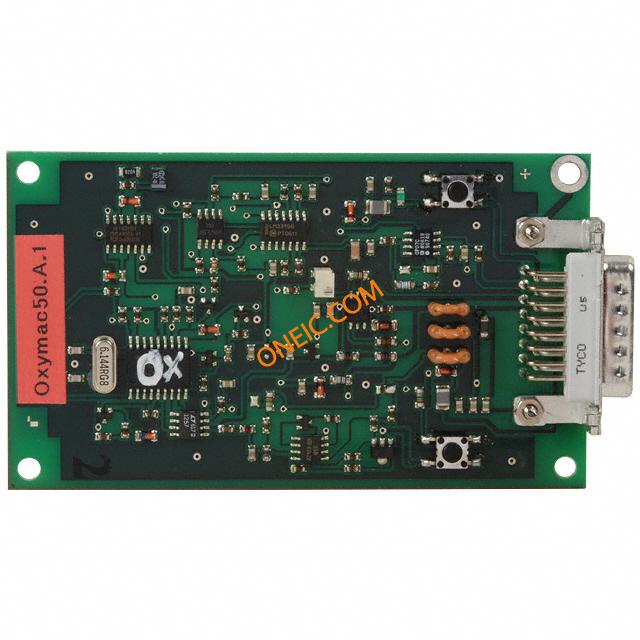

OXYMAC50.A.1 Flow Sensors Board Interface KGZ/GMS 0-25% Oxygen Sensor 15-Pin BOARD INTERFACE KGZ/GMS 0-25% OxygenSensors Honeywell International Inc. | 0 | Flow Sensors | +/- 2 % Full Scale | 24 V | * | 60 | 70 Days | Sensor Misc | 1 | RoHS Compliant | Supplier Unconfirmed | 63 | Screw | 108 | 15 | 4 | * | OXYMAC 50.A.1 | 15 | * | - | - | - | - | - | - | |

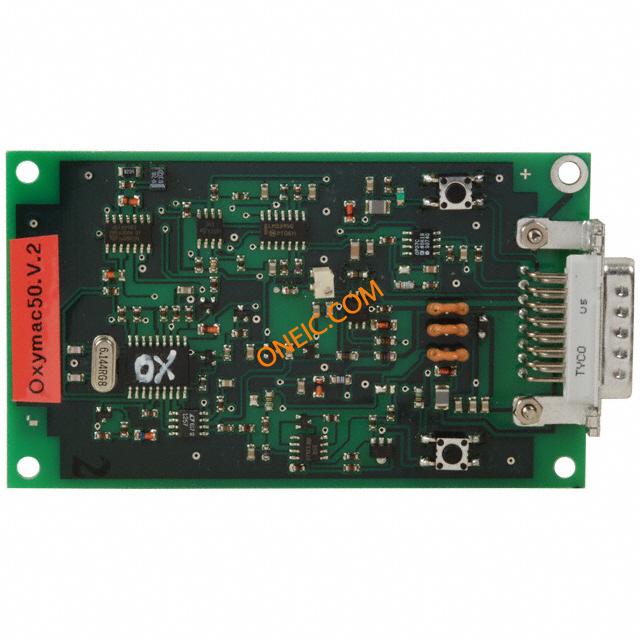

OXYMAC50.V.2 Flow Sensors Board Interface KGZ/GMS 0-100% Oxygen Sensor 15-Pin BOARD INTERFACE KGZ/GMS 0-100% OxygenSensors Honeywell International Inc. | 0 | Flow Sensors | +/- 2 % Full Scale | 24 V | * | 60 | 70 Days | Sensor Misc | 1 | RoHS Compliant | Compliant | 63 | Screw | 108 | 15 | 4 | * | OXYMAC 50.V.2 | 15 | * | - | - | - | - | - | - | |
 | 0 | - | ±2 % | 24 Vdc ±20 % | KGZ | -10 °C to 50 °C [14 °F to 122 °F] | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 12 bit | 1.05 ms/mbar | 0 Vdc to 10 Vdc or 4 mA to 20 mA | 100 mA | 0.1 % to 25 % (0 % to 100 % on request) by volume Oxygen | ±1 % |
