cigen-OSOPTA1003

OSOPTA1003 resistor networks, array 系列

Vishay Intertechnology, Inc.

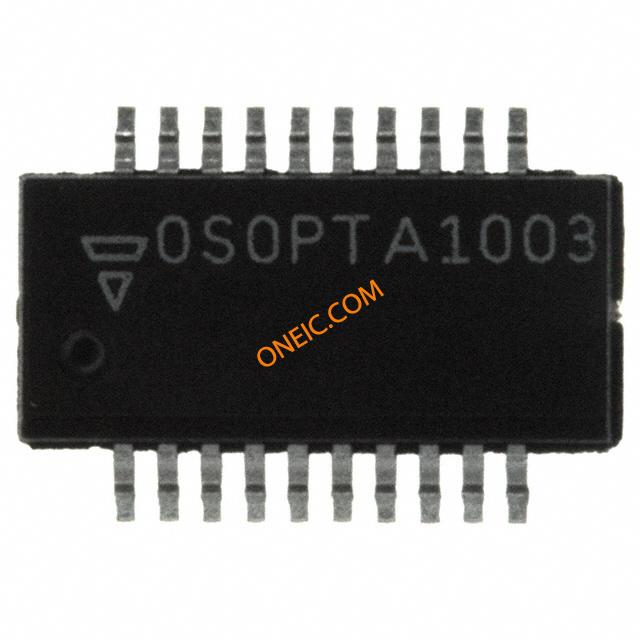

Surface mount thin film resistor arrays in dual-in-line packages

系列图片（4 张）

文档与媒体

doc?60002

常见问答

内容由 AI 生成，仅供参考

加载中...

03

OSOPTA1003 resistor networks, array - 型号列表

共 12 个型号

容差

±0.1%(2)±0.25%(1)±0.5%(1)±1%(1)

制造商零件编号	库存	价格	产品类别	最小起订量	单位包装	标准包装数量	容差	每元件功率	电阻值（欧姆）	电阻数量	高度	包装方式	安装类型	引脚数	封装形式	尺寸/外形	电路类型	工作温度	温度系数	其他名称	RoHS
4 OSOPTA1003AT1 RES ARRAY 100K OHM 10 RES 20SSOP Vishay Thin Film	256	¥19.06	-	-	-	1,000	±0.1%	100mW	100k	10	0.068" (1.73mm)	Tape & Reel (TR)	Surface Mount	20	20-SSOP (0.154", 3.90mm Width)	0.344" L x 0.154" W (8.74mm x 3.91mm)	Isolated	-55°C ~ 125°C	±25ppm/°C	OSOPT-100KATR	Lead free / RoHS Compliant
OSOPTA1003BT1 RES ARRAY 100K OHM 10 RES 20SSOP Vishay Thin Film	10	¥15.75	-	-	-	1,000	±0.1%	100mW	100k	10	0.068" (1.73mm)	Tape & Reel (TR)	Surface Mount	20	20-SSOP (0.154", 3.90mm Width)	0.344" L x 0.154" W (8.74mm x 3.91mm)	Isolated	-55°C ~ 125°C	±25ppm/°C	-	-
OSOPTA1003CT1 RES ARRAY 100K OHM 10 RES 20SSOP Vishay Thin Film	10	¥15.75	-	-	-	1,000	±0.25%	100mW	100k	10	0.068" (1.73mm)	Tape & Reel (TR)	Surface Mount	20	20-SSOP (0.154", 3.90mm Width)	0.344" L x 0.154" W (8.74mm x 3.91mm)	Isolated	-55°C ~ 125°C	±25ppm/°C	-	-
OSOPTA1003DT1 RES ARRAY 100K OHM 10 RES 20SSOP Vishay Thin Film	10	¥15.75	-	-	-	1,000	±0.5%	100mW	100k	10	0.068" (1.73mm)	Tape & Reel (TR)	Surface Mount	20	20-SSOP (0.154", 3.90mm Width)	0.344" L x 0.154" W (8.74mm x 3.91mm)	Isolated	-55°C ~ 125°C	±25ppm/°C	-	-
OSOPTA1003FT1 RES ARRAY 100K OHM 10 RES 20SSOP Vishay Thin Film	10	¥15.75	-	-	-	1,000	±1%	100mW	100k	10	0.068" (1.73mm)	Tape & Reel (TR)	Surface Mount	20	20-SSOP (0.154", 3.90mm Width)	0.344" L x 0.154" W (8.74mm x 3.91mm)	Isolated	-55°C ~ 125°C	±25ppm/°C	-	-
OSOPTA1003AXX VISHAY	0		-	100	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OSOPTA1003BXX VISHAY	0		-	100	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OSOPTA1003CXX VISHAY	0		-	100	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OSOPTA1003DXX VISHAY	0		-	100	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OSOPTA1003FXX VISHAY	0		-	100	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OSOPTA1003ZXX VISHAY	0		-	100	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OSOPTA1003ATS Molded 25 mil pitch, Dual-in-line, thin film resistor, surface mount network VISHAY	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
