OPA842ID op amp 系列
Texas Instruments IncorporatedHigh-speed, low-distortion voltage feedback operational amplifiers
系列图片（8 张）
常见问答
OPA842ID op amp - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 压摆率 | 共模抑制比、电源抑制比（典型） | 通道数量 | 增益带宽积 | 输入偏置电流（最大） | 输入噪声电流密度 | 输入噪声电压密度 | 输入失调电压（最大） | 电压输出差（典型值）@ 距离 | 安装类型 | 封装形式 | 类型 | 工作温度 | 工厂包装数量 | RoHS | 零件状态 | 抗辐射加固 | 增益 | 电源抑制比 | 输出类型 | 输入功率 | 建立时间 | 平带噪声电压 | 输出电流 | 供电电压 | 元件数量 | 输入偏置电流 | 最大额定电流 | 失调电压漂移 | 最小输入电压 | 静态电流 (Iq) | 输出电流/通道 | 供电电压 (Vcc/Vdd) | 电源电压范围（典型） | 重量 | 带宽 | 包装方式 | 安装样式 | 冷却的封装 | 包装数量 | 位数 | 供应商器件封装 | 系列 | 关断 | 软件 | 技术 | 架构 | 放大器类型 | 功能框图 | 电路数 | 使用的IC/零件 | 测试温度 | 产品 | 标准封装名称 | 欧盟RoHS | 供电类型 | 轨到轨工作 | 输入失调电流（最大） | 宽度 | 引脚样式 | 总长度 | 外壳尺寸-插件 | 制造商全称 | 印刷电路板数量 | 其他名称 | 频率 | 供电电流 | 高度 | 长度 | 引脚数 | 拓扑 | SVHC | 海关税号 | 晶体管类型 | ADC/DAC 数量 | 材料表面处理 | 基本单元 | 转换速率 | 典型电压增益 | 双电源电压（V+/-） | 尺寸/外形 | 共模瞬态抗扰度（最小） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

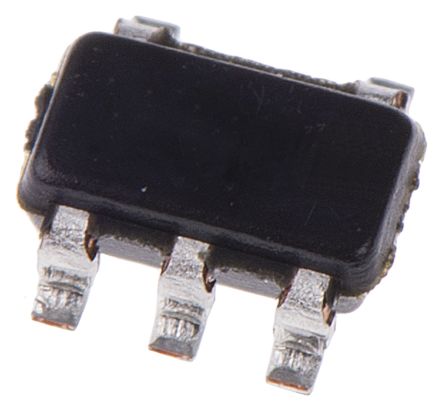

 OPA842IDBVT OP Amp Single Volt Fdbk ±6V 5-Pin SOT-23 T/R IC OPAMP VFB 200MHZ SOT23-5 High Speed Operational Amplifiers Wideband Lo-Distort Voltage Feedback OP Amp Single Volt Fdbk ?6V 5-Pin SOT-23 T/R Wideband, Low Distortion, Unity Gain Stable, Voltage Feedback Operational Amplifier texas instruments | 599 | ¥16.20 | High Speed Operational Amplifiers | Cut Tape, Tape & Reel | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 5SOT-23 | Voltage Feedback Amplifier | -40 to 85 °C | 250 | Lead free / RoHS Compliant | ACTIVE | No | 110 dB | 90 dB | No | Dual | 15 ns | 2.7 | 20.2mA | 10 V ~ 12 V, ±5 V ~ 6 V | 1 | 20µA | Catalog | 4 | 300µV | 22.5 | 100mA | 12 | �5 V | 0.000617 oz | 400 | Tape and Reel | SMD/SMT | SOT-23 | SOT-23 | 5 | SOT-23-5 | OPA842 | No | SBOS267D | BiCOM | Voltage Feedback | Voltage Feedback | alt_sbos267d.gif | 1 | View | -40 to 85 | Voltage Feedback Amplifier | SOT-23 | Compliant | Dual | No | 1@±5V | 1.75(Max) | Gull-wing | 3.05(Max) | 1.3(Max) | High Speed Amplifier | 5 | 296-14176-2 | 2.6 nV/sqrt Hz | 20.2 mA | 1.15 mm | 2.9 mm | - | Voltage Feedback | - | - | - | - | - | - | - | - | - | - | - |
 OPA842ID OP Amp Single Volt Fdbk ±6V 8-Pin SOIC Tube IC OPAMP VFB 200MHZ 8SOIC OPA842ID, Operational Amplifier Voltage Feedback, 200MHz, 8-Pin SOIC High Speed Operational Amplifiers Wideband Lo-Distort Voltage Feedback OP Amp Single Volt Fdbk �6V 8-Pin SOIC Tube OP AMP, WIDEBAND VFB, SOIC8, 842 Wideband, Low Distortion, Unity Gain Stable, Voltage Feedback Operational Amplifier Texas Instruments 运算放大器, 200MHz, 8针 SOIC texas instruments | 274 | ¥9.06 | High Speed Operational Amplifiers | Rail / Tube | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 8SOIC | Voltage Feedback Amplifier | -40 to 85 °C | 75 | Lead free / RoHS Compliant | :842 | No | 110 dB | 90 dB | No | Dual | 15 ns | 2.7 | 20.2mA | 10 V ~ 12 V, ±5 V ~ 6 V | 1 | 20µA | Catalog | 4 | 300µV | 22.5 | 100mA | 12 | �5 V | 0.002677 oz | :400MHz | Tube | SMD/SMT | SOIC | SOIC | 8 | 8-SOIC | OPA842 | No | SBOS267D | BiCOM | Voltage Feedback | Voltage Feedback | alt_sbos267d.gif | 1 | View | -40 to 85 | Voltage Feedback Amplifier | SOIC | Compliant | Dual | No | 1@±5V | 4(Max) | Gull-wing | 5(Max) | 1.5(Max) | High Speed Amplifier | 8 | 296-14175-5 | - | - | - | - | :8 | - | :No SVHC (20-Jun-2013) | 85423300 | :Wideband | :1 | :MSL 2 - 1 year | :842 | - | - | - | - | - |
OPA842IDBVRG4 OP Amp Single Volt Fdbk ±6V 5-Pin SOT-23 T/R IC OPAMP VFB 200MHZ SOT23-5 High Speed Operational Amplifiers Wideband Lo-Distort Voltage Feedback OP Amp Single Volt Fdbk �6V 5-Pin SOT-23 T/R Wideband, Low Distortion, Unity Gain Stable, Voltage Feedback Operational Amplifier texas instruments | 9000 | ¥14.18 | High Speed Operational Amplifiers | Tape & Reel | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 5SOT-23 | Voltage Feedback Amplifier | -40 to 85 °C | 3000 | Lead free / RoHS Compliant | ACTIVE | No | 110 dB | 90 dB | No | Dual | 15 | 2.7 | 20.2mA | 10 V ~ 12 V, ±5 V ~ 6 V | 1 | 20µA | Catalog | 4 | 300µV | 22.5 | 100mA | 12 | �5 V | 0.000617 oz | 400 | Tape & Reel (TR) | SMD/SMT | SOT-23 | 3000 | LARGE T&R | 5 | SOT-23-5 | OPA842 | No | SBOS267D | BiCOM | Voltage Feedback | Voltage Feedback | alt_sbos267d.gif | 1 | View | -40 to 85 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
OPA842IDBVR OP Amp Single Volt Fdbk ±6V 5-Pin SOT-23 T/R IC OPAMP VFB 200MHZ SOT23-5 OPA842IDBVR, Operational Amplifier Voltage Feedback, 200MHz, 5-Pin SOT-23 High Speed Operational Amplifiers Wideband Lo-Distort Voltage Feedback OP Amp Single Volt Fdbk �6V 5-Pin SOT-23 T/R Wideband, Low Distortion, Unity Gain Stable, Voltage Feedback Operational Amplifier Texas Instruments 运算放大器, 200MHz, 5针 SOT-23 texas instruments | 9000 | ¥14.18 | High Speed Operational Amplifiers | Tape & Reel | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 5SOT-23 | Voltage Feedback Amplifier | -40 to 85 °C | 3000 | Lead free / RoHS Compliant | ACTIVE | No | 110 dB | 90 dB | No | Dual | 15 | 2.7 | 20.2mA | 10 V ~ 12 V, ±5 V ~ 6 V | 1 | 20µA | Catalog | 4 | 300µV | 22.5 | 100mA | 12 | �5 V | 0.000617 oz | 400 | Tape and Reel | SMD/SMT | SOT-23 | SOT-23 | 5 | SOT-23-5 | OPA842 | No | SBOS267D | BiCOM | Voltage Feedback | Voltage Feedback | alt_sbos267d.gif | 1 | View | -40 to 85 | Operational Amplifiers | SOT-23 | Compliant | Dual | No | 1@±5V | 1.6mm | Gull-wing | 3.05(Max) | 1.3(Max) | High Speed Amplifier | 5 | - | 2.6nV/√Hz | 20.2 mA | 1.15mm | 2.9mm | 5 | - | - | - | - | - | - | - | 400V/µs | 110 dB | ±5V | 2.9 x 1.6 x 1.15mm | - |
 | 0 | - | Cut Tape | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 5SOT-23 | Voltage Feedback Amplifier | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
OPA842IDBVTG4 OP Amp Single Volt Fdbk ±6V 5-Pin SOT-23 T/R IC OPAMP VFB 200MHZ SOT23-5 OPA842IDBVTG4, Operational Amplifier Voltage Feedback, 200MHz, 5-Pin SOT-23 High Speed Operational Amplifiers Wideband Lo-Distort Voltage Feedback OP Amp Single Volt Fdbk �6V 5-Pin SOT-23 T/R Wideband, Low Distortion, Unity Gain Stable, Voltage Feedback Operational Amplifier texas instruments | 7500 | ¥16.20 | High Speed Operational Amplifiers | Tape & Reel | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 5SOT-23 | Voltage Feedback Amplifier | -40 to 85 °C | 250 | Lead free / RoHS Compliant | ACTIVE | No | 110 dB | 90 dB | No | Dual | 15 ns | 2.7 | 20.2mA | 10 V ~ 12 V, ±5 V ~ 6 V | 1 | 20µA | Catalog | 4 | 300µV | 22.5 | 100mA | 12 | �5 V | 0.000617 oz | 400 | Tape & Reel (TR) | SMD/SMT | SOT-23 | 250 | SMALL T&R | 5 | SOT-23-5 | OPA842 | No | SBOS267D | BiCOM | Voltage Feedback | Voltage Feedback | alt_sbos267d.gif | 1 | View | -40 to 85 | Voltage Feedback Amplifier | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
OPA842IDRG4 OP Amp Single Volt Fdbk ±6V 8-Pin SOIC T/R IC OPAMP VFB 200MHZ 8SOIC High Speed Operational Amplifiers Wideband Lo-Distort Voltage Feedback OP Amp Single Volt Fdbk �6V 8-Pin SOIC T/R Wideband, Low Distortion, Unity Gain Stable, Voltage Feedback Operational Amplifier texas instruments | 10 | ¥12.96 | High Speed Operational Amplifiers | Tape & Reel | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 8SOIC | Voltage Feedback Amplifier | -40 to 85 °C | 2500 | Lead free / RoHS Compliant | ACTIVE | No | 110 dB | 90 dB | No | Dual | 15 | 2.7 | 20.2mA | 10 V ~ 12 V, ±5 V ~ 6 V | 1 | 20µA | Catalog | 4 | 300µV | 22.5 | 100mA | 12 | �5 V | 0.002677 oz | 400 | Tape & Reel (TR) | SMD/SMT | SOIC | 2500 | LARGE T&R | 8 | 8-SOIC | OPA842 | No | SBOS267D | BiCOM | Voltage Feedback | Voltage Feedback | alt_sbos267d.gif | 1 | View | -40 to 85 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 OPA842IDG4 OP Amp Single Volt Fdbk ±6V 8-Pin SOIC Tube High Speed Operational Amplifiers Wideband Lo-Distort Voltage Feedback IC OPAMP VFB 200MHZ 8SOIC OP Amp Single Volt Fdbk ?6V 8-Pin SOIC Tube Wideband, Low Distortion, Unity Gain Stable, Voltage Feedback Operational Amplifier texas instruments | 9975 | ¥16.85 | High Speed Operational Amplifiers | Rail / Tube | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 8SOIC | Voltage Feedback Amplifier | -40 to 85 °C | 75 | RoHS Compliant | ACTIVE | No | 110 dB | 90 dB | No | Dual | 15 | 2.7 | 20.8 mA | 12 V | 1 | 20µA | Catalog | 4 | 1.2 mV | 22.5 | 100mA | 12 | �5 V | 0.002677 oz | 400 | Tube | SMD/SMT | SOIC | SOIC | 8 | 8-SOIC | OPA842 | No | SBOS267D | BiCOM | Voltage Feedback | Voltage Feedback | alt_sbos267d.gif | 1 | View | -40 to 85 | - | SOIC | Compliant | Dual | No | 1@±5V | 4(Max) | Gull-wing | 5(Max) | 1.5(Max) | High Speed Amplifier | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 85 dB |
| 0 | - | Tape & Reel | 400@±15V V/us | 85 dB | 1 | 200 MHz | 35@±5V uA | 2.7@±5V pA/rtHz | 2.6@±5V nV/rtHz | 1.2@±5V mV | 110 dB | Surface Mount | 8SOIC | Voltage Feedback Amplifier | -40 to 85 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
