NSYSF201060 general purpose enclosure 系列
Schneider Electric SE施耐德电气SF系列可选装支架的通用机箱，2000x1000x600mm
施耐德电气NSYSF201060系列是一种通用机箱，设计用于安装各种电子元件、传感器和控制设备。该机箱尺寸为2000x1000x600mm，空间较大，适用于需要容纳多个组件的复杂安装场合。
这些机箱在工业环境中经常出现，例如制造工厂、能源分配中心和过程控制系统中。它们常用于安装PLC、SCADA系统和其他工业自动化设备。值得注意的是，这些机箱具有一定的灵活性，可选配安装板，便于根据不同的安装需求进行定制和适应。
当工程师们需要一个可靠且模块化的解决方案来容纳多种组件而无需进行大量定制时，往往会选用这种机箱。标准的尺寸和设计使其更容易管理电缆布线并确保适当的气流，这对于工业环境至关重要。另一个实用的观察是，这些机箱足够坚固，能够承受恶劣条件，因此非常适合户外应用或高尘高湿区域。
系列图片（6 张）
文档与媒体
常见问答
内容由 AI 生成，仅供参考
加载中...
03
NSYSF201060 general purpose enclosure - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准 | 认证 | 颜色 | 材料（通用） | 锁定类型 | 开口尺寸 | 接触镀层 | 高度（英寸） | 总宽度 | 面板安装类型 | 尺寸/外形 | 衬套/护套类型 | 结构（如双向、串接等） | 成分 | 产品子类型 | 测量范围 | 安装类型 | 其他规格 | 应用细节 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SF w/mount plate 2000x1000x600 Schneider Electric component NSYSF201060P: SF W/MOUNT PLATE 2000X1000X600 Schneider Electric | 10 | 1: ¥5,640.0152 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front door | Reversible 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Plain | 600 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 door1 mounting plate1 rear panel1 roof1 structure1 locking system with handle for door2 sliding rails4 mounting plate bracket | Suitable enclosure | Spacial SF | Floor-standing | 1 on front | Multi-purpose | IP55 conforming to IEC 60529 |
SF w/mount plate 2D 2000x1000x600 Schneider Electric component NSYSF2010602DP: SF W/MOUNT PLATE 2D 2000X1000X600 Schneider Electric | 10 | 1: ¥6,375.5712 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front right door | Left 120 °Right 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Plain | 600 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 blocking system for left door1 mounting plate1 rear panel1 roof1 structure2 sliding rails4 mounting plate bracket2 door1 locking system with handle | Suitable enclosure | Spacial SF | Floor-standing | 2 on front face | Multi-purpose | IP55 conforming to IEC 60529 |

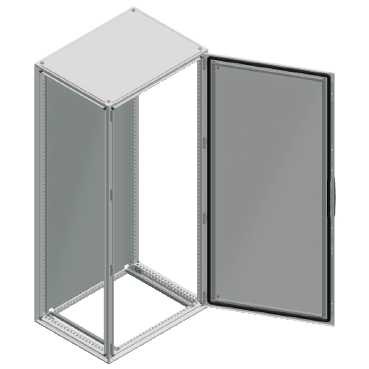

 Schneider Electric component NSYSF201060: SF WO/MOUNT PLATE 2000X1000X600, Schneider Electric | 0 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front door | Reversible 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Without mounting plate | 600 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 door1 rear panel1 roof1 structure1 locking system with handle for door2 sliding rails4 mounting plate bracket | Suitable enclosure | Spacial SF | Floor-standing | 1 on front | Multi-purpose | IP55 conforming to IEC 60529 | |
 Schneider Electric component NSYSF2010602D: SF WO/MOUN PLATE 2D 2000X1000X600 Schneider Electric | 0 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front right door | Left 120 °Right 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Without mounting plate | 600 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 blocking system for left door1 rear panel1 roof1 structure2 sliding rails4 mounting plate bracket2 door1 locking system with handle | Suitable enclosure | Spacial SF | Floor-standing | 2 on front face | Multi-purpose | IP55 conforming to IEC 60529 | |

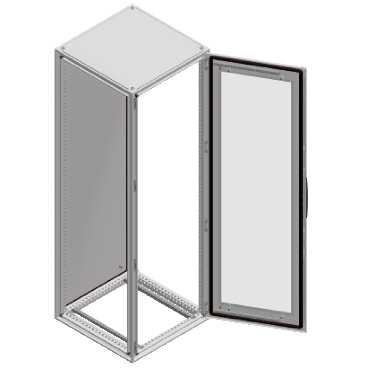

 Schneider Electric component NSYSF201060T: Spacial SF enclosure glazed door - assembled - 2000x1000x600 mm Schneider Electric | 0 | - | IEC 62208 | BVDNVUL | Enclosure: grey RAL 7035Handle: black RAL 9005 | Galvanised steel for frameGalvanised steel for uprightsPolyamide 6 with 30 % fibre glass for handleSecurit glass for doorSheet steel for doorSheet steel for panelsZamak for hinge | 4 points lock, handle with 5 mm double bar insert on front door | Reversible 120 ° | Epoxy-polyester powder | 2000 mm | 1000 mm | Without mounting plate | 600 mm | Without gland plate | Formed from a single sectionVertical uprights joined with top and bottom framesPanels and doors built into the structurePerforated structure with a pitch of 25 mm | 1 door1 rear panel1 roof1 structure1 locking system with handle for door2 sliding rails4 mounting plate bracket | Suitable enclosure | Spacial SF | Floor-standing | 1 on front | Multi-purpose | IP55 conforming to IEC 60529 |
