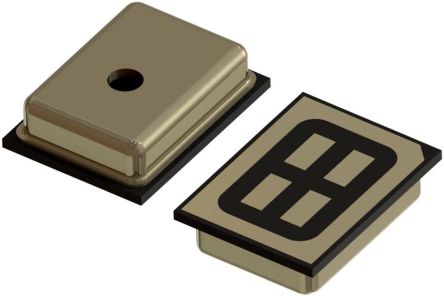

MP34DT mems microphone 系列
STMicroelectronics N.V.Omnidirectional digital MEMS microphones with stereo audio sensing
系列图片（4 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
MP34DT mems microphone - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 商标名 | 标准包装数量 | RoHS | 欧盟RoHS | 信噪比 | 输出类型 | 灵敏度 | 额定电压 | 频率范围 | 输出电流 | 最大额定电流 | 最小供电电压 | 深度 | 形状 | 宽度 | 长度 | 包装方式 | 端接方式 | 高度（最大） | 端口位置 | 安装样式 | 封装形式 | 尺寸/外形 | 端接样式 | 类型 | 方向 | 其他规格 | 密封等级 | 工作温度 | 最小起订量 | 单位包装 | 其他名称 | 汽车级 | 无铅定义 | 电源抑制比 | 接口 | 信噪比，ADC/DAC（dB）典型值 | 集电极截止电流（最大） | 带宽 | 占位面积 | 安装类型 | 关断 | 匹配码 | 技术 | 标准交期 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MP34DT01 MEMS AUDIO SENSOR OMNIDIRECTIONAL STEREO DIGITAL MICROPHONE MIC MEMS DIGITAL OMNI -26DB MEMS Microphones MEMS Audio 120 dBSPL 63dB -26 dBFS Sensor MP34DT01 Series 2.86 V MEMS Audio Sensor Omnidirectional Digital Microphone STMicroelectronics | 10 | ¥14.18 | MEMS Microphones | ECOPACK | 490 | Lead free / RoHS Compliant | Compliant | 63dB | Digital, PDM | -26dB ±3dB @ 94dB SPL | 1.64 ~ 3.6V | 100Hz ~ 10kHz | 600µA | 0.6 mA | 1.8 V | 1 mm | Rectangular | 3 mm | 4 mm | Tray | Solder Pads | 1.00mm | Top | SMD/SMT | HCLGA | 4.00mm L x 3.00mm W | SMD/SMT | MEMS (Silicon) | Omnidirectional | Omnidirectional | None | + 85 C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
MP34DT01TR MEMS AUDIO SENSOR OMNIDIRECTIONAL STEREO DIGITAL MICROPHONE MEMS MICROPHONE Sensor Digital MIC MEMS DIGITAL PDM OMNI -26DB MEMS Microphones MEMS Audio 120 dBSPL 63dB -26 dBFS Sensor MEMS Audio Sensor 4-Pin HCLGA T/R STMicroelectronics | 4000 | ¥6.57 | MEMS Microphones | ECOPACK | 4,000 | Lead free / RoHS Compliant | Compliant | 63dB | Digital, PDM | -26dBFS | 1.64 ~ 3.6V | 100Hz ~ 10kHz | 600µA | 0.6 mA | 1.8 V | 1 mm | Rectangular | 3 mm | 4 mm | Tape & Reel (TR) | Surface Mount | 1.10mm | Top | SMD/SMT | HCLGA | 4.00mm L x 3.00mm W | SMD/SMT | MEMS (Silicon) | Omnidirectional | 120dBSPL | None | + 85 C | 1 | 1 | 497-12016-2 | NO | RoHS-conform | -70dBFS | Digital | 63dB | 0.6mA | 20kHz | 12mm² | SMD | 20µA | MP34DT01TR MEMS | MEMS | 16 weeks |
 MP34DT02TR MP34DT02 Series 3.6 V 60 dB Omnidirectional Stereo Digital Microphone - HCLGA-4 STMICROELECTRONICS | 3476 | ¥9.06 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
MP34DT04TR MP34DT04 Series 3.6 V MEMS Audio Sensor Omnidirectional Digital Microphone STMICROELECTRONICS | 1312500 | ¥5.82 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 16000 | ¥5.37 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 4000 | ¥6.07 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
1
