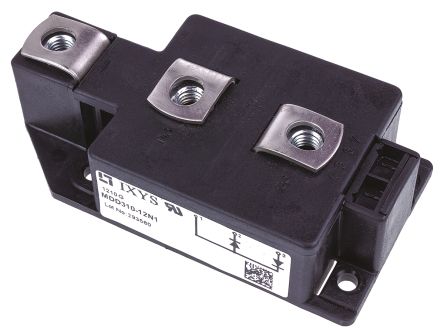

MDD310 semiconductor 系列
Littelfuse, Inc.工业半导体应用的高功率双二极管模块
Littelfuse 的 MDD310 系列是一款高功率双二极管模块，专为工业半导体应用设计。这些模块通常用于需要高电流处理能力和快速切换的电力电子设备中。如果您正在开发逆变器、电机驱动器或其他需要高效功率转换的系统，很可能会用到这些组件。
值得注意的是，它们在恶劣条件下具有很高的鲁棒性。这些模块可以承受显著的冲击电流，并能在高温和电磁干扰环境下有效工作。当工程师需要在苛刻的工业环境中获得可靠性能时，往往会选择这种模块。另一个实际用途是在可再生能源系统中，例如太阳能逆变器，高效管理高功率水平至关重要。
MDD310 系列在需要快速恢复时间的应用中表现出色，使其成为高频开关电路的理想选择。其紧凑的设计允许轻松集成到现有设计中而不影响性能。总体而言，这些模块提供了良好的功率处理能力和可靠性平衡，使其成为许多工业应用中的首选。
系列图片（3 张）
文档与媒体
常见问答
MDD310 semiconductor - 型号列表
共 7 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 产品 | 标准包装数量 | 工厂包装数量 | RoHS | 欧盟RoHS | 转速 | 测试电流 | 供电电压 | 二极管配置 | 最小输入电压 | 峰值脉冲电流（8/20µs） | 直流反向电压（Vr）（最大） | 反向关断电压（典型） | 栅极触发电压 Vgt (最大) | 连续漏极电流（Id）@ 25°C | 平均整流电流（每二极管） | 宽度 | 包装方式 | 安装类型 | 安装样式 | 封装形式 | 总长度 | 包装数量 | 位数 | 外壳尺寸-插件 | 供应商器件封装 | 类型 | 系列 | 二极管类型 | 配置 | 印刷电路板数量 | 工作温度 | 结工作温度 | 标准封装名称 | 制造商全称 | 元件数量 | 反向漏电流 @ Vr | 平均整流电流 Io | 高度 | 长度 | 引脚数 | 冷却的封装 | 尺寸/外形 | 功能 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Discrete Semiconductor Modules 310 Amps 1200V Diode 1.2KV 305A 3-Pin Y2-DCB MOD DIODE DUAL 1200V Y2-DCB MDD310-12N1, Dual Diode Module, 305A 1200V Dual, 3-Pin, Y2 DCB DualDiodeModule2x305A1200VY2-DCB IXYS 二极管, 305A 1200V, 3针 Y2 DCB封装 Littelfuse, Inc. | 0 | - | Power Semiconductor Modules | 2 | 2 | Lead free / RoHS Compliant | Compliant | Standard Recovery >500ns, > 200mA (Io) | 40mA @ 1200V | 1.2V | 1 Pair Series Connection | 1.2V @ 600A | 12200 | 1200V (1.2kV) | 1200V | 1.2 kV | 305A | 305A | 60mm | Bulk | Screw | Screw | Y2-DCB | 116 | Y2-DCB | 3 | 32 | Y2-DCB | High Current Diode Modules | MDD310 | Standard | Dual Series | 3 | +150 °C | -40 to 150 | Y2-DCB | IXYS | 2 | 40mA | 305A | 32mm | 116mm | 3 | Y2 DCB | 32 x 116 x 60mm | Y | |
 Discrete Semiconductor Modules 310 Amps 2000V Diode 2KV 305A 3-Pin Y2-DCB MOD DIODE DUAL 2000V Y2-DCB Littelfuse, Inc. | 0 | - | Power Semiconductor Modules | 2 | 2 | Lead free / RoHS Compliant | Compliant | Standard Recovery >500ns, > 200mA (Io) | 40mA @ 2000V | 1.2@600A | 1 Pair Series Connection | 1.2V @ 600A | 12200 | 2000V (2kV) | 2000 | 2 kV | 305 | 305A | 60 | Bulk | Screw | Screw | Y2-DCB | 116 | Y2-DCB | 3 | 32 | Y2-DCB | High Current Diode Modules | MDD310 | Standard | Dual Series | 3 | 150 | -40 to 150 | Y2-DCB | IXYS | - | - | - | - | - | - | - | - | - | |
 Discrete Semiconductor Modules 310 Amps 800V Diode 800V 305A 3-Pin Y2-DCB MOD DIODE DUAL 800V Y2-DCB Littelfuse, Inc. | 0 | - | Power Semiconductor Modules | 2 | 2 | Lead free / RoHS Compliant | Compliant | Standard Recovery >500ns, > 200mA (Io) | 40mA @ 800V | 1.2@600A | 1 Pair Series Connection | 1.2V @ 600A | 12200 | 800V | 800 | 800 V | 305 | 305A | 60 | Bulk | Screw | Screw | Y2-DCB | 116 | Y2-DCB | 3 | 32 | Y2-DCB | High Current Diode Modules | MDD310 | Standard | Dual Series | 3 | 150 | -40 to 150 | Y2-DCB | - | - | - | - | - | - | - | - | - | - | |
Discrete Semiconductor Modules 310 Amps 2200V Diode 2.2KV 305A 3-Pin Y2-DCB MOD DIODE DUAL 2200V Y2-DCB Littelfuse, Inc. | 0 | - | Power Semiconductor Modules | 2 | 2 | Lead free / RoHS Compliant | Compliant | Standard Recovery >500ns, > 200mA (Io) | 40mA @ 2200V | 1.2@600A | 1 Pair Series Connection | 1.2V @ 600A | 12200 | 2200V (2.2kV) | 2200 | 2.2 kV | 305 | 305A | 60 | Bulk | Screw | Screw | Y2-DCB | 116 | Y2-DCB | 3 | 32 | Y2-DCB | High Current Diode Modules | MDD310 | Standard | Dual Series | 3 | 150 | -40 to 150 | Y2-DCB | IXYS | - | - | - | - | - | - | - | - | - | |
Discrete Semiconductor Modules 310 Amps 1600V Diode 1.6KV 305A 3-Pin Y2-DCB MOD DIODE DUAL 1600V Y2-DCB Littelfuse, Inc. | 0 | - | Power Semiconductor Modules | 2 | 2 | Lead free / RoHS Compliant | Compliant | Standard Recovery >500ns, > 200mA (Io) | 40mA @ 1600V | 1.2@600A | 1 Pair Series Connection | 1.2V @ 600A | 12200 | 1600V (1.6kV) | 1600 | 1.6 kV | 305 | 305A | 60 | Bulk | Screw | Screw | Y2-DCB | 116 | Y2-DCB | 3 | 32 | Y2-DCB | High Current Diode Modules | MDD310 | Standard | Dual Series | 3 | 150 | -40 to 150 | Y2-DCB | IXYS | - | - | - | - | - | - | - | - | - | |
Discrete Semiconductor Modules 310 Amps 1800V Diode 1.8KV 305A 3-Pin Y2-DCB MOD DIODE DUAL 1800V Y2-DCB Littelfuse, Inc. | 0 | - | Power Semiconductor Modules | 2 | 2 | Lead free / RoHS Compliant | Compliant | Standard Recovery >500ns, > 200mA (Io) | 40mA @ 1800V | 1.2@600A | 1 Pair Series Connection | 1.2V @ 600A | 12200 | 1800V (1.8kV) | 1800 | 1.8 kV | 305 | 305A | 60 | Bulk | Screw | Screw | Y2-DCB | 116 | Y2-DCB | 3 | 32 | Y2-DCB | High Current Diode Modules | MDD310 | Standard | Dual Series | 3 | 150 | -40 to 150 | - | IXYS | - | - | - | - | - | - | - | - | - | |
Discrete Semiconductor Modules 310 Amps 1400V Diode 1.4KV 305A 3-Pin Y2-DCB MOD DIODE DUAL 1400V Y2-DCB Littelfuse, Inc. | 0 | - | Power Semiconductor Modules | 2 | 2 | Lead free / RoHS Compliant | Compliant | Standard Recovery >500ns, > 200mA (Io) | 40mA @ 1400V | 1.2@600A | 1 Pair Series Connection | 1.2V @ 600A | 12200 | 1400V (1.4kV) | 1400 | 1.4 kV | 305 | 305A | 60 | Bulk | Screw | Screw | Y2-DCB | 116 | Y2-DCB | 3 | 32 | Y2-DCB | High Current Diode Modules | MDD310 | Standard | Dual Series | 3 | 150 | -40 to 150 | Y2-DCB | IXYS | - | - | - | - | - | - | - | - | - |
