LQ035Q7 tft displays & accessorie 系列
Sharp Corporation3.5-inch TFT displays with QVGA resolution and various configurations
系列图片（4 张）
常见问答
LQ035Q7 tft displays & accessorie - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 欧盟RoHS | 响应时间 | 视角 | 典型功耗（条件） | 灯颜色 | 外形尺寸 长x宽x高 | 有效面积 | 触摸屏 | 像素格式 | 显示尺寸 | 其他规格 | 工作温度 | 光通量 @ 电流/温度 | RoHS | 接口 | 显示模式 | 屏幕对角线尺寸 | 背光 | 位数 | 印刷电路板数量 | 机械寿命 | 分辨率（位） | 分辨率 | 尺寸 | 标准包装数量 | 可视区域 | 工厂包装数量 | 宽度 | 总长度 | 外壳尺寸-插件 | 产品 | 其他名称 | 显示类型 | 像素点数 | 安装类型 | 点距 | 包装方式 | 底色 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LQ035Q7DB05 TFT Module 3.52in 240x320Pixels 20-Pin TFT Displays & Accessories 3.5 QVGA ADTFT 240x230 LED B/L TFT Module 3.52in 240x320Pixels 6 Bit Digital 20-Pin TFT COLOR LCD W/LED BCK LT sharp microelectronics | 10 | ¥599.98 | TFT Displays & Accessories | Compliant | 80 ms | 100/100 ° | 0.384 W | 262,144 Colors | 65x85x3.4 mm | 53.64x71.52 mm | No | 240x320 Pixels | 3.52 in | 85:1 | -10 to 60 °C | 160 cd/m2 | RoHS Compliant | 6 Bit Digital | Transflective | 3.5 in | LED | 20 | 20 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | - | 240 x 320 | 65 mm x 85 mm x 3.4 mm | Bulk | 53.64 mm x 71.52 mm | - | - | - | - | Displays | 425-2812 | TFT | 320 x 240 (QVGA) | - | 0.22mm x 0.22mm | - | Normally White |
 LQ035Q7DH07 TFT Module Transmissive-Reflective 3.52in QVGA 240x320Pixels 50-Pin TFT Displays & Accessories 3.5 TFT QVGA 240x320 225 nit TFT Module Transmissive-Reflective 3.52in QVGA 240x320Pixels 6 Bit Digital 50-Pin sharp microelectronics | 38 | ¥481.32 | TFT Displays & Accessories | Compliant | 80 ms | 100/100 ° | 0.384 W | 262,144 Colors | 65x86.2x3.2 mm | 53.64x71.52 mm | No | 240x320 Pixels | 3.52 in | 80:1 | -10 to 70 °C | 250 cd/m2 | RoHS Compliant | 6 Bit Digital | Transmissive-Reflective | 3.5 in | - | 50 | 50 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | QVGA | 240 x 320 | 65 mm x 86.2 mm x 3.2 mm | Bulk | - | 100 | - | - | - | Displays | - | - | - | Screw | - | - | - |
LQ035Q7DB06 TFT Displays & Accessories 3.5 320x240 QVGA w/Touch TFT Module Normally White 3.5in QVGA 320x240Pixels Sharp Microelectronics | 10 | ¥913.03 | TFT Displays & Accessories | Compliant | 80 | 80/90 | 0.324 | 262,144 | 65x85x4.5 | 53.64x71.52 | Yes | 320x240 | 3.5 | 85:1 | 60 | 130 | RoHS Compliant | - | Normally White | 3.5 in | LED | - | - | Obsolete | QVGA | - | - | - | - | - | 85 | 65 | 3.4 | - | - | - | - | - | - | - | - |
 LQ035Q7DH06 TFT Displays & Accessories 3.5 240x320 225 nits w/Touch TFT Module Transflective 3.52in QVGA 240x320Pixels 6 Bit Digital 50-Pin Sharp Microelectronics | 10 | ¥764.64 | TFT Displays & Accessories | Compliant | 80 | 100/100 | 0.384 | 262,144 | 65x86.2x4 | 53.64x71.52 | Yes | 240x320 | 3.52 | Touch Panel | - 10 C to + 70 C | 225 | RoHS Compliant | 6 Bit Digital | Transflective | 3.5 in | White Normally White | 50 | 50 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | QVGA | 240 x 320 | 65 mm x 86.2 mm x 4 mm | - | - | 100 | - | - | - | Displays | - | - | - | - | - | Bulk | - |
LQ035Q7DB03F TFT Displays & Accessories 3.5 QVGA ADTFT 240x230 LED B/L 3.52in Diagonal 240x320Pixels 6 Bit Digital 3.3V/5V Power Supply 50-Pin Sharp Microelectronics | 0 | TFT Displays & Accessories | Compliant | 80 | 100/100 | 0.324 | 262,144 | 65x85x3.4 | 53.64x71.52 | Yes | 240x320 | 3.52 | 4:3 | 60 | 55 | RoHS Compliant | 6 Bit Digital | - | 3.5 in | White Normally White | 50 | 50 | Obsolete | QVGA | 240 x 320 | 65 mm x 85 mm x 3.4 mm | - | - | 50 | 65 | 126.9 | 3.4 | - | - | - | - | Socket | - | Bulk | - | |
 LQ035Q7DB02R TFT Displays & Accessories 3.5 QVGA LED BL 240x230 w/TP TFT Module Reflective 3.52in QVGA 240x320Pixels 6 Bit Digital 50-Pin Sharp Microelectronics | 10 | ¥970.13 | TFT Displays & Accessories | Compliant | 80 | 80/90 | 0.324 | 262,144 | 65x85x4.5 | 53.64x71.52 | Yes | 240x320 | 3.52 | 70:1 | 60 | 50 | RoHS Compliant | 6 Bit Digital | Reflective | 3.5 in | White | 50 | 50 | Obsolete | QVGA | 240 x 320 | 65 mm x 85 mm x 4.5 mm | - | 53.64 mm x 71.52 mm | 50 | - | - | - | - | - | - | - | - | - | - | - |
LQ035Q7DH01 TFT Module Transmissive 3.52in 240x320Pixels 6 Bit Digital LCD TFT 3.5" 240X320 QVGA Sharp | 0 | - | Not Compliant | 80 | 80/90 | 0.324 | 262,144 | 65x86.2x4 | 53.64x71.52 | No | 240x320 | 3.52 | 70:1 | 70 | 100 | Contains lead / RoHS non-compliant | 6 Bit Digital | Transmissive | 3.52" (89.41mm) | LED - White | - | - | - | - | - | - | 1 | 71.52mm L x 53.64mm W | - | 4 | 65 | 86.2 | - | 425-2480 | TFT | 320 x 240 (QVGA) | - | 0.22mm x 0.22mm | - | - | |
| 0 | - | Compliant | 80 | 80/90 | 0.324 | 262,144 | 65x85x4.5 | 53.64x71.52 | Yes | 240x320 | 3.52 | 70:1 | 60 | 50 | - | 6 Bit Digital | Reflective | - | - | - | - | - | - | - | - | - | - | - | 65 | 85 | 4.5 | - | - | - | - | - | - | - | - | |

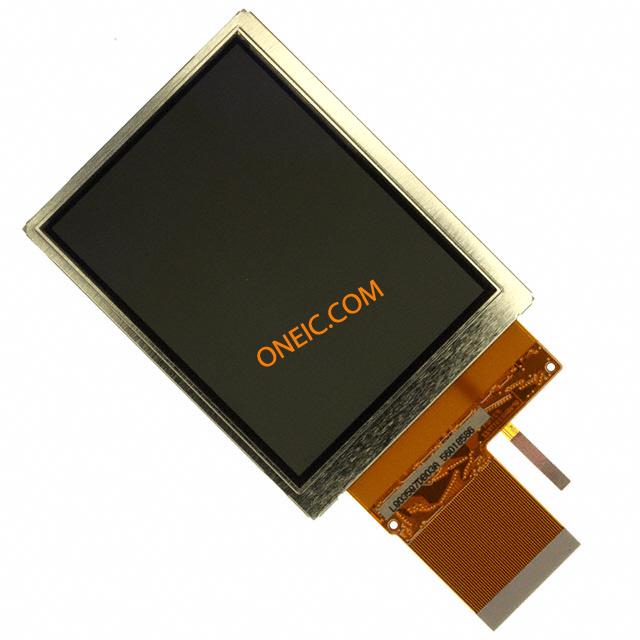

 LQ035Q7DB03 3.52in Diagonal 240x320Pixels 6 Bit Digital Reflective 3.3V/5V Power Supply 50-Pin LCD TFT 3.5" 240X320 QVGA Sharp | 10 | ¥1,423.94 | - | Supplier Unconfirmed | 80 | 80/90 | 0.324 | 262,144 | 65x85x3.4 | 53.64x71.52 | No | 240x320 | 3.52 | 85:1 | 60 | 55 | Contains lead / RoHS non-compliant | 6 Bit Digital | Reflective | 3.52" (89.41mm) | LED - White | 50 | 50 | - | QVGA | - | - | 50 | 71.52mm L x 53.64mm W | - | - | - | - | - | 425-2481 | TFT | 320 x 240 (QVGA) | Screw | - | - | - |
