LE1M35B electric motors, motor controllers & peripheral 系列

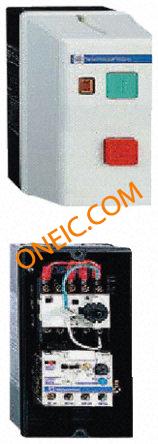

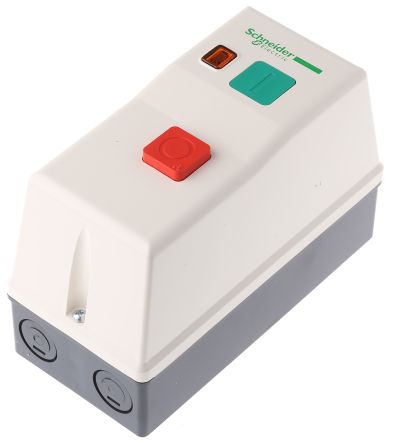

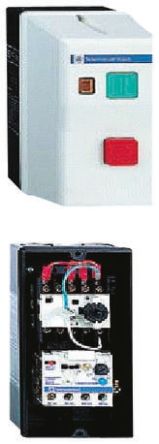

Schneider Electric SEEnclosed DOL non-reversing starters for 3-phase motors, 24V AC, IP65 rated
系列图片（9 张）
文档与媒体
常见问答
LE1M35B electric motors, motor controllers & peripheral - 型号列表
共 11 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 极数 | 宽度 | 电机类型 | 防护等级 | 标准 | 额定功率 | 额定输出功率 | 额定电压 | 供电电压 | 开关功能/额定值 | 典型相位噪声 (dBc/Hz) | 深度 | 高度 | 重量 | 总深度 | 插头进线方向 | 总宽度 | 总长度 | 供应商器件封装 | 外部壳体材料 | 用途 | 产品子类型 | 控制方式 | 测量范围 | 设备简称 | 其他规格 | 应用细节 | 密封等级 | 工作温度 | 自然散热热阻 | 输出1频率 | 启动方式 | 封装形式 | 系列 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LE1M35B714 DOL starter 24Vac,5.5-8A Schneider Electric component LE1M35B714: enclosed DOL non reversing starter TeSys - LE1-M - 5.5...8 A - coil 24 V AC Schneider Electric LE1 系列 3 千瓦 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥670.7 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 3 kW | 3 kW at 380...400 V AC 50/60 Hz3 kW at 415 V AC 50/60 Hz1.1 kW at 240 V AC 50/60 Hz1.5 kW at 220...230 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 5.5...8 A | 3 | 自动 | 是 | LE1 |
LE1M35B708 DOL starter 24Vac,1.8-2.6A Schneider Electric component LE1M35B708: enclosed DOL non reversing starter TeSys - LE1-M - 1.8...2.6 A - coil 24 V AC Schneider Electric LE1 系列 1.1 kW 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥670.7 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 1.1 kW | 0.37 kW at 220...230 V AC 50/60 Hz0.37 kW at 240 V AC 50/60 Hz0.75 kW at 415 V AC 50/60 Hz1.1 kW at 380...400 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 1.8...2.6 A | 3 | 自动 | 是 | LE1 |
LE1M35B710 DOL starter 24Vac,2.6-3.7A Schneider Electric LE1 系列 1.5 kW 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥651.7 | - | 3P | 78mm | DOL | IP65 | - | 1.5 kW | - | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | - | Automatic | 3 | - | - | - | 108mm | - | 78mm | 160mm | Yes | - | - | - | - | - | - | - | - | IP65 | - | - | 3 | 自动 | 是 | LE1 |
LE1M35B712 DOL starter 24Vac,3.7-5.5A Schneider Electric component LE1M35B712: enclosed DOL non reversing starter TeSys - LE1-M - 3.7...5.5 A - coil 24 V AC Schneider Electric LE1 系列 2.2 kW 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥670.7 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 2.2 kW | 0.75 kW at 240 V AC 50/60 Hz1.1 kW at 220...230 V AC 50/60 Hz2.2 kW at 380...400 V AC 50/60 Hz2.2 kW at 415 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 3.7...5.5 A | 3 | 自动 | 是 | LE1 |
LE1M35B716 DOL starter 24Vac,8-11.5A Schneider Electric component LE1M35B716: enclosed DOL non reversing starter TeSys - LE1-M - 8...11.5 A - coil 24 V AC Schneider Electric LE1 系列 4 kW 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥670.7 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 4 kW | 4 kW at 380...400 V AC 50/60 Hz4 kW at 415 V AC 50/60 Hz2.2 kW at 220...230 V AC 50/60 Hz2.2 kW at 240 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 8...11.5 A | 3 | 自动 | 是 | LE1 |
LE1M35B707 DOL starter 24Vac,1.2-1.8A Schneider Electric component LE1M35B707: enclosed DOL non reversing starter TeSys - LE1-M - 1.2...1.8 A - coil 24 V AC Schneider Electric LE1 系列 0.55 kW 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥740.09 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 0.55 kW | 0.25 kW at 220...230 V AC 50/60 Hz0.25 kW at 240 V AC 50/60 Hz0.55 kW at 380...400 V AC 50/60 Hz0.55 kW at 415 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 1.2...1.8 A | 3 | 自动 | 是 | LE1 |
LE1M35B706 DOL starter 24Vac,0.8-1.2A Schneider Electric component LE1M35B706: enclosed DOL non reversing starter TeSys - LE1-M - 0.8...1.2 A - coil 24 V AC Schneider Electric LE1 系列 0.37 kW 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥670.7 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 0.37 kW | 0.18 kW at 220...230 V AC 50/60 Hz0.18 kW at 240 V AC 50/60 Hz0.37 kW at 380...400 V AC 50/60 Hz0.37 kW at 415 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 0.8...1.2 A | 3 | 自动 | 是 | LE1 |
LE1M35B722 DOL starter 24Vac, 12-16A Schneider Electric component LE1M35B722: enclosed DOL non reversing starter TeSys - LE1-M - 12...16 A - coil 24 V AC Schneider Electric LE1 系列 7.5 kW 自动 3P DOL 启动器, 24 V 交流, 3相, IP65 Schneider Electric | 10 | ¥670.7 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 7.5 kW | 4 kW at 240 V AC 50/60 Hz7.5 kW at 380...400 V AC 50/60 Hz7.5 kW at 415 V AC 50/60 Hz3.7 kW at 220...230 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 12...16 A | 3 | 自动 | 是 | LE1 |
LE1M35B721 DOL starter 24Vac,10-141A Schneider Electric component LE1M35B721: enclosed DOL non reversing starter TeSys - LE1-M - 10...14 A - coil 24 V AC Schneider Electric | 110 | ¥561.46 | - | 3P | 78 mm | DOL | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | 5.5 kW | 3 kW at 220...230 V AC 50/60 Hz3 kW at 240 V AC 50/60 Hz5.5 kW at 380...400 V AC 50/60 Hz5.5 kW at 415 V AC 50/60 Hz | 220 V ac, 230 V ac, 240 V ac, 380 V ac, 400 V ac, 415 V ac | 24 V AC 50/60 Hz | Automatic | 3 | 108 mm | 160 mm | 0.6 kg | 108mm | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | 78mm | 160mm | Yes | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | IP65 | -5...40 °C | 10...14 A | - | - | - | - |
 LE1M35B705 Schneider Electric component LE1M35B705: enclosed DOL non reversing starter TeSys - LE1-M - 0.54...0.8 A - coil 24 V AC Schneider Electric | 0 | - | 3P | 78 mm | Non reversing | IP65 conforming to IEC 60529 | EN 60947IEC 60439-1IEC 60947-4-1VDE 0660-102 | - | 0.12 kW at 220...230 V AC 50/60 Hz0.12 kW at 240 V AC 50/60 Hz0.25 kW at 380...400 V AC 50/60 Hz0.25 kW at 415 V AC 50/60 Hz | - | 24 V AC 50/60 Hz | - | - | 108 mm | 160 mm | 0.6 kg | - | 2 x 13 mm PG at bottom2 x 13 mm PG at top2 x 20 mm ISO at bottom2 x 20 mm ISO at top2 x 21 mm PG at bottom2 x 21 mm PG at top2 x 25 mm ISO at bottom2 x 25 mm ISO at top | - | - | - | Self-extinguishing ABS | AC-3 | Enclosed DOL starter | 2 pushbuttons | TeSys | LE1M | 1 yellow operating indicator | Motor control | - | -5...40 °C | 0.54...0.8 A | - | - | - | - | |
 LE1M35B7 Schneider | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
