cigen-LC4HR

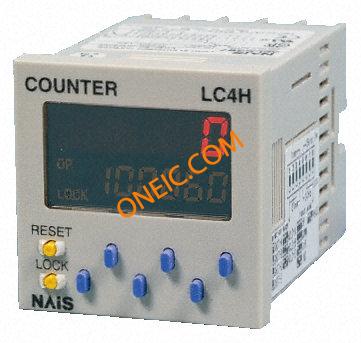

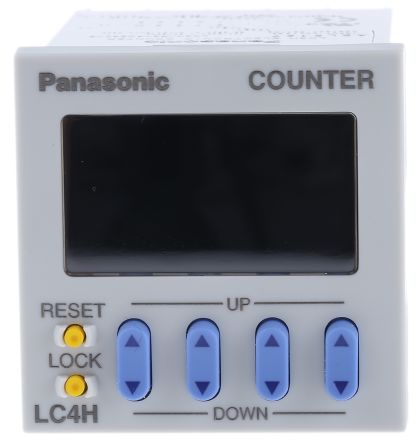

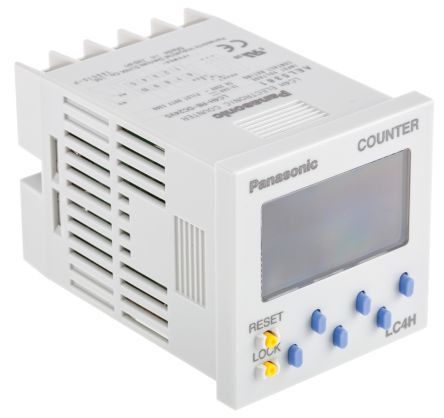

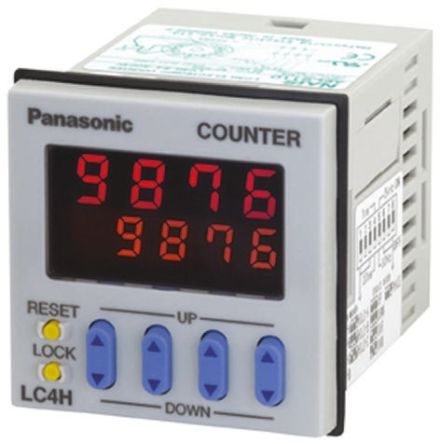

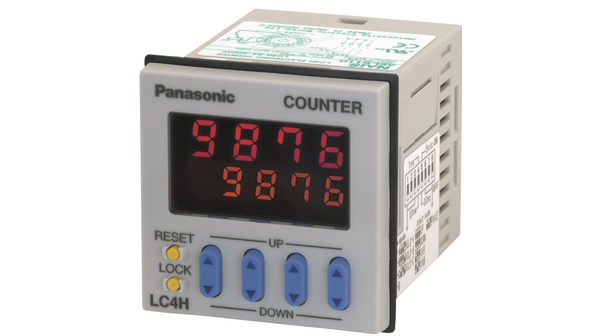

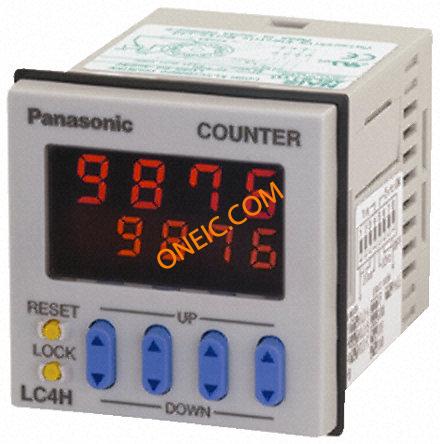

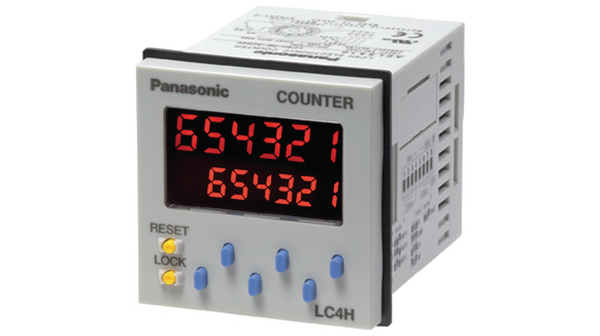

LC4HR timers & counter 系列

Panasonic Corporation

Panasonic Corporation

Panasonic digital counters and timers with LED/LCD displays, AC/DC power options

系列图片（8 张）

常见问答

内容由 AI 生成，仅供参考

加载中...

03

LC4HR timers & counter - 型号列表

共 10 个型号

制造商零件编号	库存	价格	产品类别	输出端	计数率	显示类型	工作温度	背光	计数器/定时器	最小供电电压	保护电压（VP）（2416）	尺寸/外形	端接样式	前面板接线方式	复位	量程（°/s）	位数	时钟频率	供电电压	LED正向电流	安装类型	连接类型	测量范围	位数或字符数	输入类型	最高温度限值	工作模式
3 LC4HR4240ACSJ Counter Panasonic LC4HR4240ACSJ 240V ac Timer 4-digit LED 30 Hz / 5 kHz Contact 100...240 VAC, LC4HR4240ACSJ, Panasonic Panasonic 数字计数器 LC4HPSVR6240ACSJ, 240 V 交流电源 Panasonic Corporation	29	¥723.35	-	Change-over contact (CO)	5kHz	LCD	+55°C	Yes	Contact	100...240 VAC	IP 66 front panel	48 x 48 x 65 mm	Screw Terminal	45 x 45 mm	Manual, Signal	-99999 → 999999	4	5kHz	240 V ac	是	Panel	Screw	-99999 → 999999	4	Voltage	+55°C	-
2 LC4HR624DCS Counter Panasonic LC4HR624DCS 12 to 24V dc Panasonic 数字计数器 , 12 → 24 V 直流电源 Panasonic Corporation	13	¥663.01	-	Relay	Seconds	LCD	+55°C	Yes	-	-	-	-	-	-	Automatic	-99999 to 999999	6	60Hz	12 →to 24 Vdc	是	Panel	Screw	-99999 → 999999	6	-	-	秒
2 LC4HR6240ACS Counter Panasonic LC4HR6240ACS 100 to 240V ac Panasonic 数字计数器 , 100 → 240 V 交流电源 Panasonic Corporation	14	¥737.3	-	Relay	Seconds	LCD	+55°C	Yes	-	-	-	-	-	-	Automatic	-99999 to 999999	6	60Hz	100 → 240 Vac	是	Panel	Screw	-99999 → 999999	6	-	-	秒
3 LC4HR424SJ Counter Panasonic LC4HR424SJ 12 to 24V dc Timer 4-digit LED 30 Hz / 5 kHz Contact 12...24 VDC, LC4HR424SJ, Panasonic Panasonic 数字计数器 LC4HPSVR6240ACSJ, 12 → 24 V 直流电源 Panasonic Corporation	41	¥723.35	-	Change-over contact (CO)	5kHz	LCD	+55°C	Yes	Contact	12...24 VDC	IP 66 front panel	48 x 48 x 65 mm	Screw Terminal	45 x 45 mm	Manual, Signal	-99999 to 999999	4	5kHz	12 → 24 V dc	是	Panel	Screw	-99999 → 999999	4	Voltage	+55°C	-
LC4HR424J Counter 4-digit LED 30 Hz / 5 kHz Contact 12...24 VDC, LC4HR424J, Panasonic Panasonic Corporation	0		-	Change-over contact (CO)	30	LED	-10...+55 °C	-	Contact	12...24 VDC	IP 66 front panel	48 x 48 x 65 mm	11-pin Socket	45 x 45 mm	-	-	-	-	-	-	-	-	-	-	-	-	-
LC4HR4240ACJ Counter 4-digit LED 30 Hz / 5 kHz Contact 100...240 VAC, LC4HR4240ACJ, Panasonic Panasonic Corporation	0		-	Change-over contact (CO)	30	LED	-10...+55 °C	-	Contact	100...240 VAC	IP 66 front panel	48 x 48 x 65 mm	11-pin Socket	45 x 45 mm	-	-	-	-	-	-	-	-	-	-	-	-	-
LC4HR6240ACJ Present counter 6-digit LCD 30 Hz / 5 kHz Contact 100...240 VAC, LC4HR6240ACJ, Panasonic Panasonic Corporation	0		-	Change-over contact (CO)	30	LCD	-10...+55 °C	yes	Contact	100...240 VAC	IP 66 front panel	48 x 48 x 65 mm	11-pin Socket	45 x 45 mm	-	-	-	-	-	-	-	-	-	-	-	-	-
LC4HR6240ACSJ Present counter 6-digit LCD 30 Hz / 5 kHz Contact 100...240 VAC, LC4HR6240ACSJ, Panasonic Panasonic Corporation	0		-	Change-over contact (CO)	30	LCD	-10...+55 °C	yes	Contact	100...240 VAC	IP 66 front panel	48 x 48 x 70 mm	Screw Terminal	45 x 45 mm	-	-	-	-	-	-	-	-	-	-	-	-	-
LC4HR624J Present counter 6-digit LCD 30 Hz / 5 kHz Contact 12...24 VDC, LC4HR624J, Panasonic Panasonic Corporation	0		-	Change-over contact (CO)	30	LCD	-10...+55 °C	yes	Contact	12...24 VDC	IP 66 front panel	48 x 48 x 65 mm	11-pin Socket	45 x 45 mm	-	-	-	-	-	-	-	-	-	-	-	-	-
LC4HR624SJ Present counter 6-digit LCD 30 Hz / 5 kHz Contact 12...24 VDC, LC4HR624SJ, Panasonic Panasonic Corporation	0		-	Change-over contact (CO)	30	LCD	-10...+55 °C	yes	Contact	12...24 VDC	IP 66 front panel	48 x 48 x 70 mm	Screw Terminal	45 x 45 mm	-	-	-	-	-	-	-	-	-	-	-	-	-
