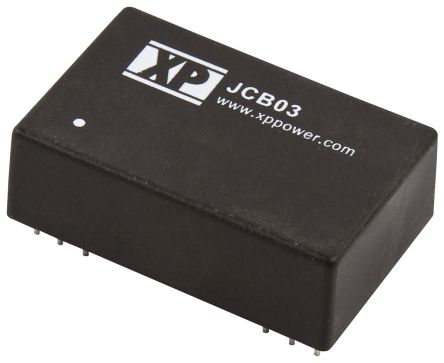

cigen-JCB0348

JCB0348 power supplies - board mount 系列

XP Power Limited

3W isolated DC-DC converters with various voltage outputs

系列图片（5 张）

文档与媒体

PDF 文档

常见问答

内容由 AI 生成，仅供参考

加载中...

03

JCB0348 power supplies - board mount - 型号列表

共 10 个型号

制造商零件编号	库存	价格	产品类别	其他名称	标准包装数量	RoHS	SVHC	海关税号	效率	最大功率	额定功率	转换器类型	额定电压	输出电流	供电电压	输出数量	最大功率（瓦特）	隔离电压	最小输入电压	直流输入电压（最大）	深度	宽度	高度	重量	包装方式	安装类型	封装形式	尺寸/外形	类型	产品特性	工作温度	输出电流2	输出电压2（可调范围）
2 JCB0348D05 DC/DC CONVERTER, 3W, DUAL 5V O/P DC/DC CONVERTER +/-5V 3W XP POWER	10	¥81.86	-	1470-1822-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	78%	:3W	:3W	:Isolated POL	:5V	:300mA, 300mA	:48V	:2	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	:-300mA	:-5V
2 JCB0348D09 DC/DC CONVERTER, 3W, DUAL 9V O/P DC/DC CONVERTER +/-9V 3W XP POWER	25	¥81.86	-	1470-1823-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	79%	:3W	:3W	:Isolated POL	:9V	:167mA, 167mA	:48V	:2	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	:-167mA	:-9V
3 JCB0348D12 DC/DC CONVERTER, 3W, DUAL 12V O/P DC/DC CONVERTER +/-12V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , ±12V dc输出, ±125mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER	17	¥81.86	-	1470-1824-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	80%	:3W	:3W	:Isolated POL	:12V	:125mA, 125mA	:48V	:2	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	:-125mA	:-12V
2 JCB0348D15 DC/DC CONVERTER, 3W, DUAL 15V O/P DC/DC CONVERTER +/-15V 3W XP POWER	14	¥81.86	-	1470-1825-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	80%	:3W	:3W	:Isolated POL	:15V	:100mA, 100mA	:48V	:2	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	:-100mA	:-15V
2 JCB0348D24 DC/DC CONVERTER, 3W, DUAL 24V O/P DC/DC CONVERTER +/-24V 3W XP POWER	15	¥81.86	-	1470-1826-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	80%	:3W	:3W	:Isolated POL	:24V	:63mA, 63mA	:48V	:2	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	:-63mA	:-24V
3 JCB0348S05 DC/DC CONVERTER, 3W, ONE 5V O/P DC/DC CONVERTER 5V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , 5V dc输出, 最大 600mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER	15	¥70.28	-	1470-1827-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	77%	:3W	:3W	:Isolated POL	:5V	:600mA	:48V	:1	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	-	-
2 JCB0348S09 DC/DC CONVERTER, 3W, ONE 9V O/P DC/DC CONVERTER 9V 3W XP POWER	15	¥70.28	-	1470-1828-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	78%	:3W	:3W	:Isolated POL	:9V	:333mA	:48V	:1	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	-	-
2 JCB0348S12 DC/DC CONVERTER, 3W, ONE 12V O/P DC/DC CONVERTER 12V 3W XP POWER	15	¥70.28	-	1470-1829-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	80%	:3W	:3W	:Isolated POL	:12V	:250mA	:48V	:1	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	-	-
3 JCB0348S24 DC/DC CONVERTER, 3W, ONE 24V O/P DC/DC CONVERTER 24V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , 24V dc输出, 最大 125mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER	104	¥70.31	-	1470-1831-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	80%	:3W	:3W	:Isolated POL	:24V	:125mA	:48V	:1	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	-	-
2 JCB0348S15 DC/DC CONVERTER, 3W, SINGLE 15V O/P DC/DC CONVERTER 15V 3W XP POWER	15	¥70.28	-	1470-1830-5	15	Lead free / RoHS Compliant	:No SVHC (20-Jun-2013)	85044090	80%	:3W	:3W	:Isolated POL	:15V	:200mA	:48V	:1	3W	:1.5kV	:Fixed	:72V	:31.75mm	:20.32mm	:10.16mm	0.02	Tube	:Through Hole	24-DIP Module (14 Leads)	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)	Isolated Module	OCP, OVP, SCP, UVLO	-40°C ~ 100°C	-	-

第 1 / 1 页
