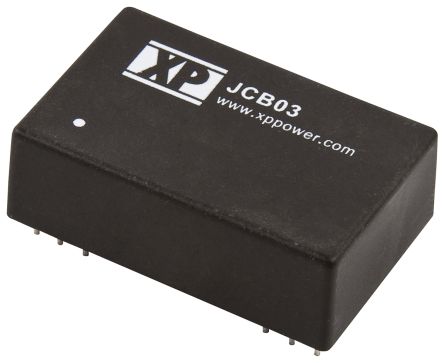

JCB0324 power supplies - board mount 系列
XP Power Limited3W isolated DC-DC converters with precise voltage regulation
系列图片（12 张）
文档与媒体
常见问答
JCB0324 power supplies - board mount - 型号列表
共 10 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 其他名称 | 标准包装数量 | RoHS | SVHC | 海关税号 | 效率 | 最大功率 | 额定功率 | 转换器类型 | 额定电压 | 输出电流 | 供电电压 | 输出数量 | 最大功率（瓦特） | 隔离电压 | 最小输入电压 | 直流输入电压（最大） | 深度 | 宽度 | 高度 | 重量 | 包装方式 | 安装类型 | 封装形式 | 尺寸/外形 | 类型 | 产品特性 | 工作温度 | 输出电流2 | 输出电压2（可调范围） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JCB0324D05 DC/DC CONVERTER, 3W, DUAL 5V O/P DC/DC CONVERTER +/-5V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , ±5V dc输出, ±300mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 11 | ¥100.9 | - | 1470-1812-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 78% | :3W | :3W | :Isolated POL | :5V | :300mA, 300mA | :24V | :2 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | :-300mA | :-5V |
JCB0324D09 DC/DC CONVERTER, 3W, DUAL 9V O/P DC/DC CONVERTER +/-9V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , ±9V dc输出, ±167mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 23 | ¥75.58 | - | 1470-1813-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 79% | :3W | :3W | :Isolated POL | :9V | :167mA, 167mA | :24V | :2 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | :-167mA | :-9V |
JCB0324D12 DC/DC CONVERTER, 3W, DUAL 12V O/P DC/DC CONVERTER +/-12V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , ±12V dc输出, ±125mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 10 | ¥75.58 | - | 1470-1814-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 80% | :3W | :3W | :Isolated POL | :12V | :125mA, 125mA | :24V | :2 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | :-125mA | :-12V |
JCB0324D15 DC/DC CONVERTER, 3W, DUAL 15V O/P DC/DC CONVERTER +/-15V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , ±15V dc输出, ±100mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 33 | ¥75.58 | - | 1470-1815-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 80% | :3W | :3W | :Isolated POL | :15V | :100mA, 100mA | :24V | :2 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | :-100mA | :-15V |
JCB0324D24 DC/DC CONVERTER, 3W, DUAL 24V O/P DC/DC CONVERTER +/-24V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , ±24V dc输出, ±63mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 48 | ¥75.58 | - | 1470-1816-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 80% | :3W | :3W | :Isolated POL | :24V | :63mA, 63mA | :24V | :2 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | :-63mA | :-24V |
JCB0324S05 DC/DC CONVERTER, 3W, ONE 5V O/P DC/DC CONVERTER 5V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , 5V dc输出, 最大 600mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 59 | ¥70.28 | - | 1470-1817-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 80% | :3W | :3W | :Isolated POL | :5V | :600mA | :24V | :1 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | - | - |
JCB0324S09 DC/DC CONVERTER, 3W, ONE 9V O/P DC/DC CONVERTER 9V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , 9V dc输出, 最大 333mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 60 | ¥70.28 | - | 1470-1818-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 80% | :3W | :3W | :Isolated POL | :9V | :333mA | :24V | :1 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | - | - |
JCB0324S12 DC/DC CONVERTER, 3W, ONE 12V O/P DC/DC CONVERTER 12V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , 12V dc输出, 最大 250mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 25 | ¥70.31 | - | 1470-1819-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 82% | :3W | :3W | :Isolated POL | :12V | :250mA | :24V | :1 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | - | - |
JCB0324S24 DC/DC CONVERTER, 3W, ONE 24V O/P DC/DC CONVERTER 24V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , 24V dc输出, 最大 125mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 178 | ¥70.31 | - | 1470-1821-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 80% | :3W | :3W | :Isolated POL | :24V | :125mA | :24V | :1 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | - | - |
JCB0324S15 DC/DC CONVERTER, 3W, SINGLE 15V O/P DC/DC CONVERTER 15V 3W XP Power JCB 系列 3W 隔离式直流-直流转换器 , 15V dc输出, 最大 200mA输出 ±0.5%负载调节 ±0.5%线路调节 XP POWER | 15 | ¥70.28 | - | 1470-1820-5 | 15 | Lead free / RoHS Compliant | :No SVHC (20-Jun-2013) | 85044090 | 82% | :3W | :3W | :Isolated POL | :15V | :200mA | :24V | :1 | 3W | :1.5kV | :Fixed | :36V | :31.75mm | :20.32mm | :10.16mm | 0.02 | Tube | :Through Hole | 24-DIP Module (14 Leads) | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Isolated Module | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | - | - |
