cigen-IFX25001ME

IFX25001ME 系列

Infineon Technologies AG

Infineon Technologies AG

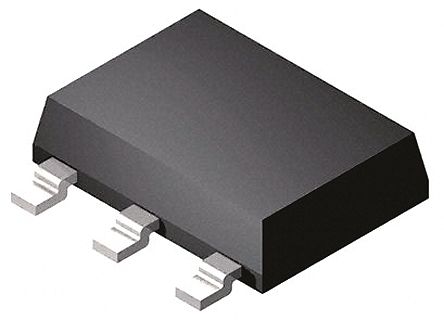

Low dropout voltage regulators in SOT-223 package for stable power supply

系列图片（5 张）

文档与媒体

IFX25001_DS_101.pdf?folderId=db3a30431ff988150120802bce1d257a&fileId=db3a304320d39d590120f620f1e269da

IFX25001_DS_102.pdf?folderId=db3a30431ff988150120802bce1d257a&fileId=db3a304320d39d590120f620f1e269da

IFX25001_DS_10.pdf?folderId=db3a30431ff988150120802bce1d257a&fileId=db3a304320d39d590120f620f1e269da

1651334.pdf

常见问答

内容由 AI 生成，仅供参考

加载中...

03

IFX25001ME - 型号列表

共 8 个型号

制造商零件编号	库存	价格	产品类别	额定电压	负载调整率	输出电流	供电电压	输出数量	工作温度	输出类型	静态电流（最大）	包装方式	安装类型	封装形式	标准包装数量	最小输入电压	电源调整率	零件号别名	工厂包装数量	RoHS	安装样式	系列	精度	静态电流 (Iq)	类型	极性	其他名称	稳压器拓扑	稳压器数量	供应商器件封装	制造商全称	最小起订量	单位包装	汽车级	无铅定义	容差	过载保护	短路电流额定值（SCCR）	工作模式	匹配码	标准交期	结工作温度	海关税号	最大持续工作电压（MCOV）	重量	引脚数	材料表面处理	标准封装名称	欧盟RoHS	宽度	插片宽度	引脚样式	总长度	包装数量	位数	外壳尺寸-插件	产品特性	印刷电路板数量	电源抑制比
2 IFX25001ME V25 LDO Voltage Regulators Low Dropout Voltage Regulator IC REG LDO 2.5V 0.4A SOT223-4 Infineon Technologies	943	¥2.07	-	2.5 V	70 mV	400mA	1V @ 300mA	1	-40°C ~ 125°C	Fixed	400mA	Tape & Reel (TR)	Surface Mount	TO-261-4, TO-261AA	1,000	2.5V	-	IFX25001MEV25HTSA1 SP000623288	1000	Lead free / RoHS Compliant	SMD/SMT	IFX25001	-	-	-	-	IFX25001ME V25INCT	Positive Fixed	1	PG-SOT223-4	Infineon Technologies	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 IFX25001ME V33 LDO Voltage Regulators Low Dropout Voltage Regulator IC REG LDO 3.3V 0.4A SOT223-4 IC, LDO REG, 3.3V, 400MA, SOT223-4 Infineon Technologies	4362	¥2.00	-	3.3 V	70 mV	400mA	0.7V @ 300mA	1 Output	-40°C ~ 125°C	-	400mA	Tape & Reel (TR)	Surface Mount	TO-261-4, TO-261AA	1,000	3.3V	-	IFX25001MEV33HTSA1 SP000623166	1000	Lead free / RoHS Compliant	SMD/SMT	IFX25001	-	-	-	-	IFX25001ME V33INCT	Positive Fixed	1	PG-SOT223-4	-	-	-	-	-	-	-	-	-	-	-	-	85423190	:40V	0.000006	:3	:MSL 1 - Unlimited	-	-	-	-	-	-	-	-	-	-	-	-
IFX25001MEV33 LDO Regulator Pos 3.3V 0.4A 4-Pin(3+Tab) SOT-223 LDO.VREG 3,3V 0,4A SOT223-4 Infineon LDO 稳压器, 400mA, 3.3 V输出 4%, 4.7 → 45 V输入, 3针 SOT-223封装 infineon technologies	100	¥2.88	-	4.7 V	70 mV	0.4 A	0.7@300mA V	1	-40 to 125 °C	Fixed	0.22 mA	REEL	Surface Mount	4SOT-223	Tape & Reel	-	25 mV	-	-	-	-	-	±4 %	0.1mA	Linear	Positive	-	-	-	-	-	1000	1000	NO	RoHS-conform	4%	YES	YES	POS	IFX25001MEV33	10 weeks	-40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IFX25001MEV25 LDO Regulator Pos 2.5V 0.4A 4-Pin(3+Tab) SOT-223 LDO.VREG 2,5V 0,4A SOT223-4 infineon technologies	14150	¥2.88	-	4.7 V	70 mV	0.4 A	1@300mA V	1	-40 to 125 °C	Fixed	0.22 mA	REEL	Surface Mount	4SOT-223	Tape & Reel	-	25 mV	-	-	-	-	-	±4 %	0.1mA	Linear	Positive	-	-	-	-	-	1000	1000	NO	RoHS-conform	4%	YES	YES	POS	IFX25001MEV25	10 weeks	-40°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IFX25001MEV25HTSA1 LDO Regulator Pos 2.5V 0.4A 4-Pin(3+Tab) SOT-223 Infineon Technologies AG	10	¥2.92	-	2.5	70mV	0.4	1@300mA	1	125	Fixed	0.22	-	Surface Mount	-	-	2@300mA	25mV	-	-	-	-	-	±4	-	LDO	Positive	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	SOT-223	Compliant	3.5	Tab	Gull-wing	6.5	SOT-223	4	1.6	Current Limit\|Reverse Polarity Pr...	3	-
IFX25001MEV25XT LINEAR VOLTAGE REGULATOR Infineon Technologies	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IFX25001MEV33XT LINEAR VOLTAGE REGULATOR Infineon Technologies	0		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
IFX25001MEV33HTSA1 INDUSTRIAL STANDARD PROD LDO Voltage Regulators Low Dropout Voltage Regulator INFINEON	830	¥2.00	-	2.5 V, 3.3 V, 5 V, 8.5 V, 10 V	40 mV	400 mA	250 mV	1 Output	- 40 C	Fixed	-	Reel	-	SOT-223-4	-	45 V	10 mV	IFX25001ME IFX25001MEV33XT SP000623166 V33	1000	RoHS Compliant	SMD/SMT	IFX25001	-	100 uA	-	-	-	-	-	-	Infineon Technologies	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	60 dB

第 1 / 1 页

1
