GW6DGD leds - high brightness, power module 系列
Sharp CorporationHigh-power white LEDs in various color temperatures and high CRI
系列图片（1 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
GW6DGD leds - high brightness, power module - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 电压 | 波长 | 光通量 | 输出电流 | 驱动电路 | 供电电压 | LED正向电流 | LED正向电压 | 最大额定电流 | 颜色 | 宽度 | 高度 | 长度 | 包装方式 | 灯颜色 | 安装样式 | 连接器用途 | 尺寸/外形 | 照明颜色 | 显色指数（CRI） | 类型 | 色温 (K) | 配置 | 光通量 @ 电流/温度 | 最小起订量 | 单位包装 | 其他名称 | 汽车级 | 抗辐射加固 | 无铅定义 | 灯输出 | 额定功率 | 感应角度 | 偏置电流 | 峰值波长 | 元件数量 | 跳闸电流 | 触点电压（最大） | 主波长 | 栅极触发电压 Vgt (最大) | 深度 | 形状 | 发光颜色 | 安装类型 | 封装形式 | 磁芯材质 | 总长度 | 位数 | 匹配码 | 标准交期 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

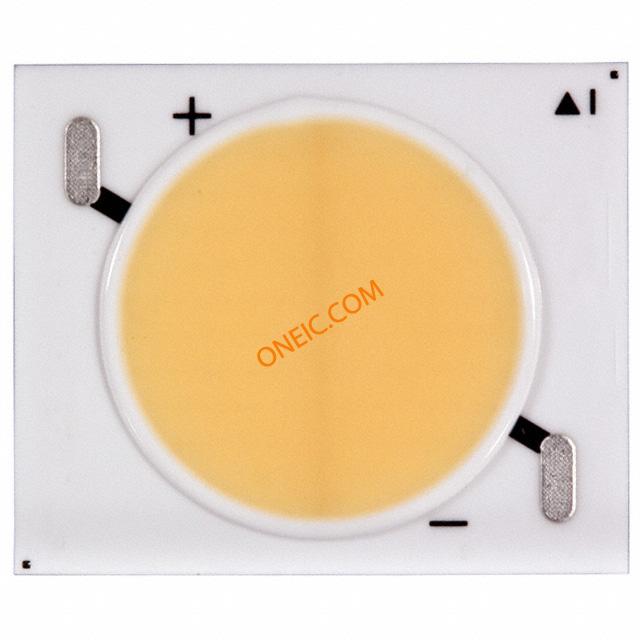

 GW6DGD30NFC MEGA ZENIGATA 35W 3000K CRI>90 LED MEGA ZENIGATA High Power LEDs - White 35W Meg Zenigata 3000K 2720LM 93CRI LED Uni-Color White 2-Pin SMD Tray SHARP | 10 | ¥115.42 | - | 40 | Lead free / RoHS Compliant | 37V | 3000K | 2720 lm | 950mA | No | 34V | 950 mA | 37 V | 1.3A | White, Warm | 20 mm | 1.8 mm | 24 mm | REEL | 3000 K | SMD/SMT | No | 20.00mm L x 24.00mm W | WHITE | 93 | LED | 3000K | Square | 2720 lm | 1 | 200 | 425-2831 | NO | No | RoHS-conform | Yes | 52000 W | 120° | 950mA | Not Required nm | 120 | 950 mA | 15V | Not Required nm | -15 V | 20 mm | Circular | White | Surface Mount | 35 WATT | InGaN | 24 mm | 2 | GW6DGD30NFC | 14 weeks |
GW6DGD40NFC MEGA ZENIGATA 35W 4000K CRI>90 LED MEGA ZENIGATA High Power LEDs - White 35W Meg Zenigata 4000K 2840LM 92CRI LED Uni-Color White 2-Pin SMD Tray SHARP | 111 | ¥122.69 | - | 40 | Lead free / RoHS Compliant | 37V | 4000K | 2840 lm | 950mA | No | 34V | 950 mA | 37 V | 1.3A | White, Neutral | 20 mm | 1.8 mm | 24 mm | REEL | 4000 K | SMD/SMT | No | 20.00mm L x 24.00mm W | WHITE | 92 | LED | 4000K | Square | 2840 lm | 1 | 200 | 425-2832 | NO | No | RoHS-conform | Yes | 52000 W | 120° | 950mA | Not Required nm | 120 | 950 mA | 15V | Not Required nm | -15 V | 20 mm | Circular | White | Surface Mount | 35 WATT | InGaN | 24 mm | 2 | GW6DGD40NFC | 14 weeks |
GW6DGD50NFC LED ZENIGATA High Power LEDs - White 35W Meg Zenigata 5000K 2880LM 90CRI Sharp Microelectronics | 10 | ¥115.42 | - | 400 | RoHS Compliant | 37V | 4900K | 2880 lm | 950mA | No | 37V | 950 mA | 37 V | 1.3A | White, Neutral | 20 mm | 1.8 mm | 24 mm | Tray | 5000 K | SMD/SMT | No | 20.00mm L x 24.00mm W | Cool White | 90 | Chip On Board (COB) | 5000K | Square | 2880 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
GW6DGD27NFC LED ZENIGATA High Power LEDs - White 35W Meg Zenigata 2700K 2580LM 93CRI Sharp Microelectronics | 10 | ¥115.42 | - | 400 | RoHS Compliant | 37V | 2700K | 2580 lm | 950mA | No | 37V | 950 mA | 37 V | 1.3A | White, Warm | 20 mm | 1.8 mm | 24 mm | Tray | 2700 K | SMD/SMT | No | 20.00mm L x 24.00mm W | Warm White | 93 | Chip On Board (COB) | 2700K | Square | 2650 lm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 GW6DGD27XFC SHARP | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
GW6DGD30BF6 SHARP | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
GW6DGD40BFC SHARP | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
GW6DGD50XFC SHARP | 0 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
