GW5SGD leds - high brightness, power module 系列
Sharp CorporationHigh-power white LEDs with various color temperatures and high CRI
系列图片（1 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
GW5SGD leds - high brightness, power module - 型号列表
共 5 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 电压 | 波长 | 输出电流 | 驱动电路 | 供电电压 | 最大额定电流 | 光效 @ 测试电流 | 25°C时测试电流下的光通量 | 颜色 | 高度 | 包装方式 | 连接器用途 | 尺寸/外形 | 显色指数（CRI） | 类型 | 色温 (K) | 配置 | 光通量 @ 电流/温度 | 其他名称 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

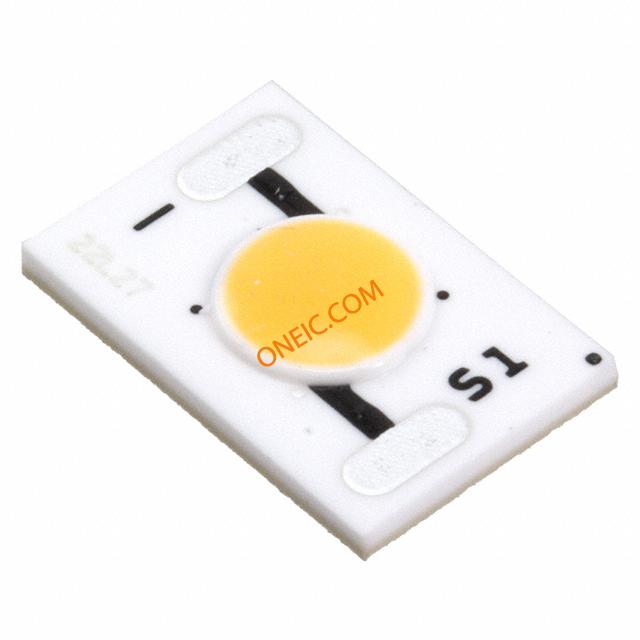

 GW5SGD30P05 LED PETITE ZENIGATA High Power LEDs - White 4.8W Petit Zenigata 3000K, 330LM, 92CRI Sharp Microelectronics | 293 | ¥19.68 | High Power LEDs - White | 120 | RoHS Compliant | 9.6V | 3000K | 500mA | Yes | 9.6V | 560mA | 69 lm/W | 330 lm | White, Warm | 1.80mm | Tray | No | 8.00mm L x 12.00mm W | 90 | Chip On Board (COB) | 3000K | Rectangle | 330 lm | 425-2849 |
 GW5SGD50P05 LED ZENIGATA High Power LEDs - White 4.8W Petit Zenigata 4850K, 360LM, 92CRI Sharp Microelectronics | 10 | ¥23.33 | High Power LEDs - White | 800 | RoHS Compliant | 9.6V | 4850K | 500mA | Yes | 9.6V | 560mA | 75 lm/W | 360 lm | White, Neutral | 1.80mm | Tray | No | 8.00mm L x 12.00mm W | 90 | Chip On Board (COB) | 5000K | Rectangle | 360 lm | - |
GW5SGD40P05 LED ZENIGATA High Power LEDs - White 4.8W Petit Zenigata 3950K, 360LM, 92CRI Sharp Microelectronics | 10 | ¥23.33 | High Power LEDs - White | 800 | RoHS Compliant | 9.6V | 3950K | 500mA | Yes | 9.6V | 560mA | 75 lm/W | 360 lm | White, Neutral | 1.80mm | Tray | No | 8.00mm L x 12.00mm W | 90 | Chip On Board (COB) | 4000K | Rectangle | 360 lm | - |
GW5SGD35P05 LED ZENIGATA High Power LEDs - White 4.8W Petit Zenigata 3400K, 330LM, 92CRI Sharp Microelectronics | 10 | ¥23.33 | High Power LEDs - White | 800 | RoHS Compliant | 9.6V | 3400K | 500mA | Yes | 9.6V | 560mA | 69 lm/W | 330 lm | White, Warm | 1.80mm | Tray | No | 8.00mm L x 12.00mm W | 90 | Chip On Board (COB) | 3500K | Rectangle | 330 lm | - |
GW5SGD27P05 LED ZENIGATA High Power LEDs - White 4.8W Petit Zenigata 2730K, 300LM, 92CRI Sharp Microelectronics | 10 | ¥23.33 | High Power LEDs - White | 800 | RoHS Compliant | 9.6V | 2730K | 500mA | Yes | 9.6V | 560mA | 63 lm/W | 300 lm | White, Warm | 1.80mm | Tray | No | 8.00mm L x 12.00mm W | 90 | Chip On Board (COB) | 2700K | Rectangle | 300 lm | - |
第 1 / 1 页
1
