GP2Y0A reflective optical sensor 系列
Sharp CorporationAnalog distance sensors for proximity and range measurement applications
系列图片（26 张）
文档与媒体
常见问答
GP2Y0A reflective optical sensor - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 供电电压 | 标准包装数量 | 输出类型 | 输出电流 | 感应距离 | 典型输出电压（随距离变化） | 电压输出差（典型值）@ 距离 | RoHS | 其他名称 | 工作温度 | 重量 | 工厂包装数量 | 海关税号 | 机械寿命 | 深度 | 宽度 | 长度 | 感应方式 | 距离 | 传感器类型 | 包装方式 | 额定电压 | 通态电流（It (RMS)）（最大） | 单元数量 | 响应时间 | 最大额定电流 | LED触发电流（最大） | 高度 | 安装类型 | 引脚数 | 包装数量 | 尺寸/外形 | SPG | 测量范围 | 抗辐射加固 | 最小供电电压 | 位数 | 类型 | 通信接口 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GP2Y0AH01K0F Proximity Sensors Distnc Measurng Snsr Paper thickness SENSOR, DISTANCE Sharp Microelectronics | 10 | ¥33.32 | Proximity Sensors | :5.5V | - | - | - | - | - | - | RoHS Compliant | - | + 60 C | 0.003 | 200 | 85414090 | Obsolete | - | - | - | - | - | - | Tray | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 GP2Y0A21YK0F Proximity Sensors Distnc Measurng Snsr Wde Beam 10-80cm SENSOR DIST MEASUR 80CM ANLG Distance Sensor 10-80cm,GP2Y0A21YK0F SENSOR, DISTANCE, ANALOGUE DIST.SENSOR,GP2Y0A21YK0F Sharp 反射式传感器 Sharp Microelectronics | 818 | ¥45.39 | Proximity Sensors | 4.5 V ~ 5.5 V | 500 | Analog | 30mA | 80 cm | 400mV @ 80cm | 1.9V @ 10 ~ 80cm | RoHS Compliant | 425-2063 | + 60 C | 0.0036 | 500 | 85414090 | Obsolete | :13.5mm | :44.75mm | :13mm | Optical | :80 cm | - | - | :7V | - | - | :39ms | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 GP2Y0A700K0F Proximity Sensors DISTANCE MEASURING SENSOR DIST MEAS 100-500CM ANLG Sharp Microelectronics | 0 | Proximity Sensors | 4.5 V ~ 5.5 V | 50 | Analog | 30mA | 100 ~ 550cm | 400mV @ 80cm | 1.5V @ 100 ~ 200cm | RoHS Compliant | 425-2506 | + 60 C | - | 50 | - | Obsolete | - | - | - | Optical | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
GP2Y0A02YK0F Proximity Sensors Distance Measuring Sensor 20-150cm SENSOR DIST MEASUR 150CM ANLG Distance sensor,20-150cm,GP2Y0A02YK Sensor DIST. Measure Analog 150cm 3-Pin SENSOR, DISTANCE, ANALOGUE O/P Sensor: photoelectric; Range:0.2÷1.5m; Usup: -0.3÷7VDC; 50mA Distance sensor, GP2Y0A02YK0F, Sharp Sharp 螺丝安装 反射式传感器 Sharp Microelectronics | 1084 | ¥62.58 | Proximity Sensors | 4.5 V ~ 5.5 V | 50 | Analog | 33mA | 150 cm | 400mV @ 150cm | 2.05V @ 20 ~ 150cm | RoHS Compliant | 425-2062 | + 60 C | 0.006 | 500 | 85414090 | NRND: Not recommended for new designs. | :18.9mm | 18.9mm | 44.5mm | Optical | :20cm to 150cm | photoelectric | - | :7V | :50mA | 1 | - | 50mA | :50mA | 21.6mm | Screw Mount | 3 | 150 | 44.5 x 18.9 x 21.6mm | 150 | 0.2...1.5m | - | - | - | - | - |
 | 10 | ¥121.22 | - | 4.5 V ~ 5.5 V | 25 | Analog | 33mA | 20 ~ 150cm | 400mV @ 150cm | 2.05V @ 20 ~ 150cm | - | 425-1165 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | 4.5 V ~ 5.5 V | 50 | Analog | 30mA | 10 ~ 80cm | 400mV @ 80cm | 1.9V @ 10 ~ 80cm | - | 425-1166 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 4.5 V ~ 5.5 V | 100 | Analog | 20mA | 4.5 ~ 6mm | 500mV @ 6mm | 1.73V @ 4.5 ~ 6mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 | 10 | ¥30.11 | - | 4.5 V ~ 5.5 V | 20 | Analog | 33mA | 10 ~ 150cm | 350mV @ 150cm | 1.6 V @ 10 ~ 150cm | - | 425-2818 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

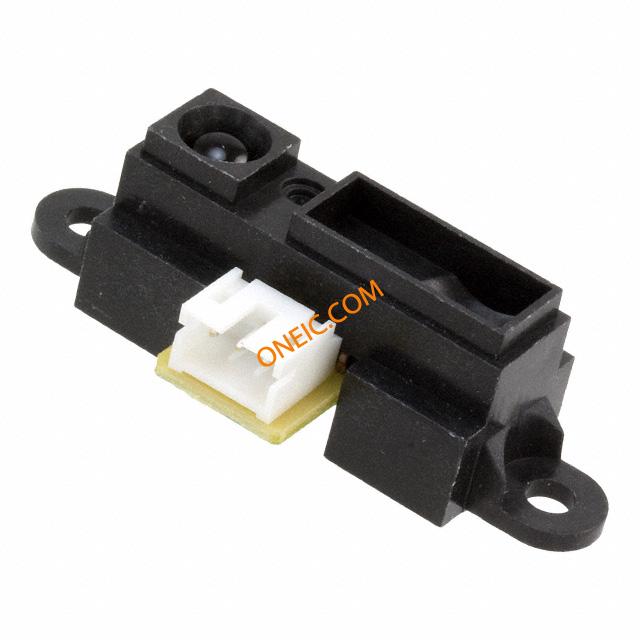

 GP2Y0A41SK0F SENSOR DIST MEAS 4-30CM ANLG Distance Sensor 4-30cm,GP2Y0A41SK0F Sensor: photoelectric Sharp 反射式传感器 Sharp Microelectronics | 2208 | ¥30.19 | - | 4.5 V ~ 5.5 V | 50 | Analog | 12mA | 4 ~ 30cm | 400mV @ 30cm | 2.25V @ 4 ~ 30cm | Compliant | 425-2819 | +60°C | 6.96 g | - | - | - | - | - | - | - | - | photoelectric | - | - | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 2760 | ¥30.52 | - | 4.5 V ~ 5.5 V | 100 | Analog | 12mA | 2 ~ 15cm | 400mV @ 15cm | 1.65V @ 2 ~ 15cm | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 136 | ¥30.11 | - | 4.5 V ~ 5.5 V | 400 | Analog | 33mA | 10 ~ 150cm | 350mV @ 150cm | 1.6 V @ 10 ~ 150cm | Lead free / RoHS Compliant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 GP2Y0A710K0F Distance Sensor 100-550cm,GP2Y0A710K0F IRDA TX/RX 5V 5-Pin Tray DISTANCE MEASURING SENSOR DistanceSensor100-550cm,GP2Y0A710K0F Sharp 反射式传感器 Sharp | 30 | ¥91.829 | - | 5 V | - | - | - | - | - | - | RoHS Compliant Part | - | +60°C | 0.009 | - | 85414090 | - | :22.5mm | :58mm | :17.6mm | - | :100cm to 550cm | :Analogue | Tray | - | :50mA | - | - | - | - | - | - | - | - | - | - | - | No | 4.5 V | 5 | TX/RX | 550 |
