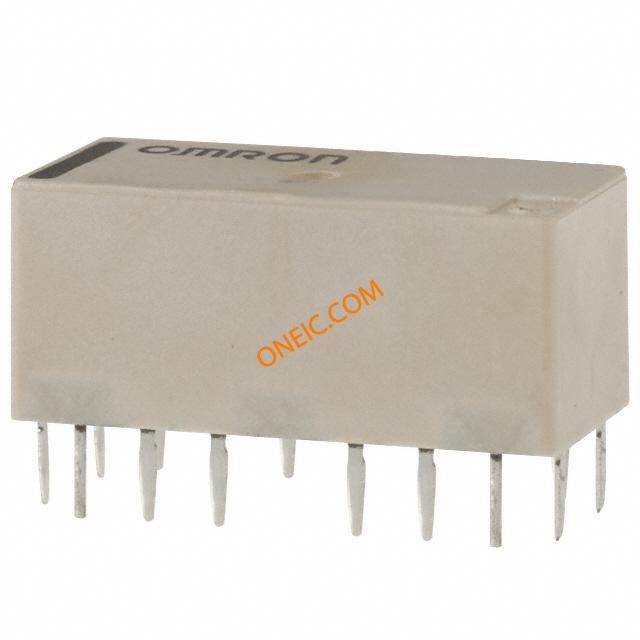

G6W-1P signal relays, up to 2 amp 系列
Omron Corporation各种电压应用的高频RF继电器
Omron公司的G6W-1P系列是一种高频RF继电器，设计用于处理高达2安培的电流。这些继电器广泛应用于需要精确控制RF信号的应用中，例如无线通信系统、雷达技术和测试设备。如果您正在从事涉及在高可靠性环境中切换RF信号的任何项目，那么这些继电器是一个可靠的选择。
值得注意的是，它们具有坚固的设计，能够在多种电压范围内有效工作。当工程师需要一种可靠的方式来切换RF信号而不引入不必要的噪声或干扰时，往往会选择这种继电器。另一个实用的好处是其紧凑的尺寸，使其非常适合空间受限的应用，其中尺寸是一个关键因素。能够处理高达2安培的电流也意味着它们可以管理一些功率水平，因此既适用于低功率RF系统，也适用于中等功率RF系统。总体而言，如果您的项目涉及RF信号切换并且需要可靠性和性能，那么G6W-1P系列绝对值得考虑。
系列图片（6 张）
文档与媒体
常见问答
G6W-1P signal relays, up to 2 amp - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | 线圈类型 | 线圈功率 | 线圈电流 | 释放时间 | 线圈电阻 | 供电电压 | 开关电压 | Vgs(th)（最大）@ Id | 集电极-发射极饱和电压（最大）@ Vge, Ic | 触点额定电流 | 包装方式 | 触点形式 | 安装类型 | 触头材料 | 端接样式 | 类型 | 产品特性 | 继电器类型 | 卡标准 | 动作时间 | 工作温度 | 零件号别名 | 工厂包装数量 | RoHS | VSWR | 频率 | 隔离 | 插入损耗 | 平均正向功率 | 触点额定值 @ 电压 | 系列 | 机械寿命 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 High Frequency / RF Relays 5.0 GHz SPDT 24VDC RELAY RF SPDT 10MA 24V Electromechanical Relay SPDT 0.5A 24VDC 2.88KOhm Through Hole HF TH Relay Omron Electronics | 16 | 1: ¥790.296 | High Frequency / RF Relays | 50 | Non-Latching | 200 mW | 8.3 mA | 10ms | 2880 Ohms | 24 VDC | 30VAC, 30VDC - Max | 2.4 VDC | 19.2 VDC | 10mA | Bulk | 1 Form C (SPDT-BM) | Through Hole | Copper (Cu), Gold (Au) | Solder Pin | Relays | Sealed - Fully | RF | High Frequency Relays | 10ms | -40°C ~ 70°C | G6W-1005R G6W1005R G6W1P24DC | 50 | RoHS Compliant | 1.2 at 2 GHz / 1.2 at 2.5 GHz / 1.5 at 5 GHz | 5 GHz | 65 dB at 2 GHz / 60 dB at 2.5 GHz / 40 dB at 5 GHz | 0.2 dB at 2 GHz / 0.2 dB at 2.5 GHz / 0.4 dB at 5 GHz | 200 mW | 10 mA at 30 VAC | G6W | Obsolete |
 | 0 | - | 50 | Non Latching | 200 mW | 33.3mA | 10ms | 180 Ohms | 6VDC | 30VAC, 30VDC - Max | 0.6 VDC | 4.8 VDC | 10mA | Bulk | SPDT (1 Form C) | Through Hole | Copper (Cu), Gold (Au) | PC Pin | Relays | Sealed - Fully | RF | High Frequency Relays | 10ms | -40°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - | |
| 0 | - | 50 | Non Latching | 200 mW | 22.2mA | 10ms | 405 Ohms | 9VDC | 30VAC, 30VDC - Max | 0.9 VDC | 7.2 VDC | 10mA | Bulk | SPDT (1 Form C) | Through Hole | Copper (Cu), Gold (Au) | PC Pin | Relays | Sealed - Fully | RF | High Frequency Relays | 10ms | -40°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - | |
High Frequency / RF Relays 5.0 GHz SPDT 12VDC RELAY RF SPDT 10MA 12V HF TH Relay Omron Electronics | 56 | 1: ¥821.916 | - | 50 | Non Latching | 200 mW | 16.7mA | 10ms | 720 Ohms | 12VDC | 30VAC, 30VDC - Max | 1.2 VDC | 9.6 VDC | 10mA | Bulk | SPDT (1 Form C) | Through Hole | Copper (Cu), Gold (Au) | PC Pin | Relays | Sealed - Fully | RF | High Frequency Relays | 10ms | -40°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - |
High Frequency / RF Relays 5.0 GHz SPDT 4.5VDC RELAY RF SPDT 10MA 4.5V Electromechanical Relay SPDT 0.5A 4.5VDC 101Ohm Through Hole HF TH Relay Omron Electronics | 25 | 1: ¥790.296 | - | 50 | Non Latching | 200 mW | 44.4mA | 10ms | 101 Ohms | 4.5VDC | 30VAC, 30VDC - Max | 0.45 VDC | 3.6 VDC | 10mA | Bulk | SPDT (1 Form C) | Through Hole | Copper (Cu), Gold (Au) | PC Pin | Relays | Sealed - Fully | RF | High Frequency Relays | 10ms | -40°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - |
| 0 | - | 50 | Non Latching | 200 mW | 66.7mA | 10ms | 45 Ohms | 3VDC | 30VAC, 30VDC - Max | 0.3 VDC | 2.4 VDC | 10mA | Bulk | SPDT (1 Form C) | Through Hole | Copper (Cu), Gold (Au) | PC Pin | Relays | Sealed - Fully | RF | High Frequency Relays | 10ms | -40°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - | |
