G4OAC input/outputdevice 系列
Opto 22Versatile AC output I/O modules for PLC systems with various voltage options
系列图片（28 张）
文档与媒体
常见问答
G4OAC input/outputdevice - 型号列表
共 12 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 输出端 | 输出范围 | 供电电压 | 通道数量 | 隔离电压 | 输入偏置电流 | 主要材料 | 尺寸/外形 | 类型 | 产品特性 | 制造商全称 | 标准 | 绝缘电阻 | 最大持续工作电压（MCOV） | 连接类型 | 模块/板类型 | 输入类型 | 输出数量 | 海关税号 | 额定电压 | 最大额定电流 | 深度 | 宽度 | 长度 | 重量 | 频率 | 模拟输入/输出 | 有铅工艺兼容 | 测试温度 | 输出类型 | 输入数量 | 输入偏置电流（最大） | 安装类型 | 系列 | 应用 | 工作温度 | SVHC | 附件类型 | 适用产品/相关产品 | 输出电流 | 典型触点布局 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 G4OAC15A I/O Module; AC Output; 24-280VAC; 15VDC; Logic I/OModule,ACOutput,24-280VAC,15VDC,Logic Opto 22 | 30 | ¥91.30 | - | 12to280VAC | 12to280VAC | 15VDC | 1 | 4000VAC | 15mA | DataAcquisition | 48.8mmL×12.2mmW×41.1mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 24to280VAC | Backplane | Digital | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 G4OAC5MA I/O Module; AC Output; 12-140 VAC; 5 VDC input; w/ Manual/Auto Switch I/OModule;ACOutput;12-140VAC;5VDCinput;w/Manual/AutoSwitch Opto 22 | 17 | ¥159.19 | - | 12to140VAC | 12to140VAC | 5VDC | 1 | 4000VAC | 12mA | DataAcquisition | 48.8mmL×12.2mmW×47.5mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 12to140VAC | Backplane | Digital | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 G4OAC24 I/O Module; AC Output; 12-140VAC; 24VDC; Logic I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In I/OModule,ACOutput,12-140VAC,24VDC,Logic Opto 22 | 20 | ¥83.09 | - | 12to140VAC | 12to140VAC | 24VDC | 1 | 4000VAC | 18mA | DataAcquisition | 48.8mmL×12.2mmW×41.1mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 12to140VAC | Backplane | Digital | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

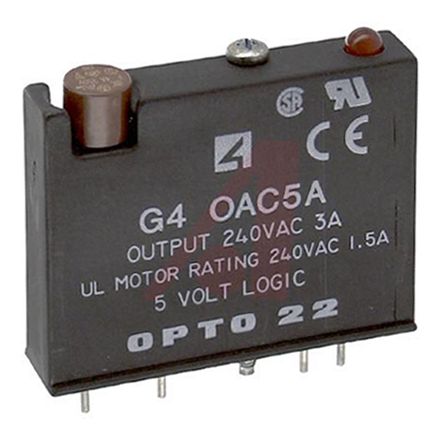

 G4OAC5A I/O Module; AC Output; 24-280VAC; 5VDC; Logic I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In MODULES, OUTPUT, AC, DIGITAL I/OModule,ACOutput,24-280VAC,5VDC,Logic Opto 22 G4系列 PLC 输入/输出模块, 3 A, 24 → 280 V 交流, 48.8 x 12.2 x 41.1 mm Opto 22 | 132 | ¥90.00 | - | 12to280VAC | 12to280VAC | 5VDC | 1 | 4000VAC | 12mA | DataAcquisition | 48.8mmL×12.2mmW×41.1mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 24to280VAC | Backplane | Digital | - | - | 85364110 | :240VAC | :3A | :41.1mm | :12.2mm | :48.8mm | 0.023 | - | - | - | - | - | - | - | - | - | - | - | :No SVHC (20-Jun-2013) | :G4 Digital AC Output Module | :OptoEMU Energy Management Systems | - | - |
 G4OAC15 I/O Module; AC Output; 12-140VAC; 15VDC; Logic I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In I/O MODULE I/OModule,ACOutput,12-140VAC,15VDC,Logic Opto 22 | 20 | ¥83.09 | - | 12to140VAC | 12to140VAC | 15VDC | 1 | 4000VAC | 15mA | DataAcquisition | 48.8mmL×12.2mmW×41.1mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 12to140VAC | Backplane | Digital | :10.5 to 16VDC | :1 | 85043180 | - | - | - | - | - | 0.023 | :65Hz | :1 | :No | :No | - | - | - | - | - | - | - | - | - | - | - | - |

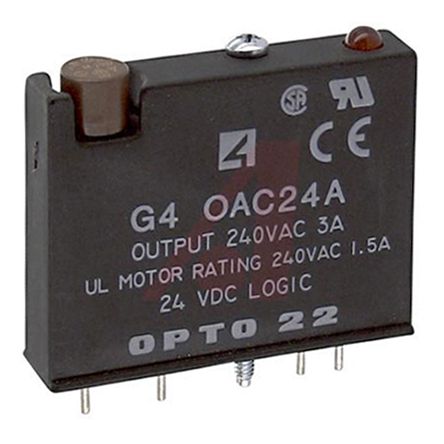

 G4OAC24A I/O Module; AC Output; 24-280VAC; 24VDC; Logic I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In I/OModule,ACOutput,24-280VAC,24VDC,Logic Opto 22 G4系列 PLC 输入/输出模块, 3 A, 24 → 280 V 交流, 48.8 x 12.2 x 41.1 mm Opto 22 | 129 | ¥90.00 | - | 12to280VAC | 12to280VAC | 24VDC | 1 | 4000VAC | 18mA | DataAcquisition | 48.8mmL×12.2mmW×41.1mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 24to280VAC | Backplane | Digital | 数字 | 1 | - | 24 → 280 V 交流 | 3 A | 41.1mm | 12.2mm | 48.8mm | - | - | - | - | - | 数字交流电压 | 1 | 18mA | PCB（印刷电路板）安装 | G4 | 交流继电器、加热器、指示器、灯、电动机启动器和螺线管 | 70°C | - | - | - | - | - |
 G4OAC5 I/O Module; AC Output; 12-140VAC; 5VDC; Logic I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In I/OModule,ACOutput,12-140VAC,5VDC,Logic Opto 22 G4系列 PLC 输入/输出模块, 3 A, 12 → 140 V 交流, 48.8 x 12.2 x 41.1 mm Opto 22 | 78 | ¥83.09 | - | 12to140VAC | 12to140VAC | 5VDC | 1 | 4000VAC | 12mA | DataAcquisition | 48.8mmL×12.2mmW×41.1mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 12to140VAC | Backplane | Digital | 数字 | 1 | - | 12 → 140 V 交流 | 3 A | 41.1mm | 12.2mm | 48.8mm | - | - | - | - | - | 数字交流电压 | 1 | 12mA | PCB（印刷电路板）安装 | G4 | 交流继电器、加热器、指示器、灯、电动机启动器和螺线管 | 70°C | - | - | - | - | - |
 G4OAC5A5 I/O Module; AC Output; 24-280VAC; 5VDC; Logic; NC I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In I/O MODULE I/OModule,ACOutput,24-280VAC,5VDC,Logic,NC Opto 22 | 42 | ¥117.78 | - | 12to280VAC | 12to280VAC | 5VDC | 1 | 4000VAC | 12mA | DataAcquisition | 48.8mmL×12.2mmW×41.1mmH | Output | OpticalIsolation | G4Series | ULListed | 100Megohms(Min.)@500VDC | 24to280VAC | Backplane | Digital | :4 to 8VDC | :1 | 85364110 | - | - | - | - | - | 0.027 | :65Hz | :1 | :No | :No | - | - | - | - | - | - | - | - | - | - | :3A | :SPST-NC |
 G4OAC5AMA I/O Module; AC Output; 24-280VAC; 5VDC; Logic With Manual/Auto Switch I/OModule,ACOutput,24-280VAC,5VDC,LogicWithManual/AutoSwitch Opto 22 | 17 | ¥159.19 | - | 12to280VAC | 12to280VAC | 5VDC | 1 | 4000VAC | 12mA | Control | 48.8mmL×12.2mmW×47.5mmH | Output | OpticalIsolation | G4Series | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 30 | ¥91.30 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 17 | ¥159.19 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 25 | ¥112.32 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
