G4IDC input/outputdevice 系列
Opto 22Compact digital DC input modules for PLC systems
系列图片（26 张）
常见问答
G4IDC input/outputdevice - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 输入端 | 输入类型 | 输入范围 | 供电电压 | 通道数量 | 隔离电压 | 输入偏置电流 | 安装样式 | 主要材料 | 类型 | 产品特性 | 制造商全称 | 连接类型 | 开启时间 | 关断延迟时间 | 逻辑电压 - VIL, VIH | 尺寸/外形 | 标准 | 额定电压 | 结工作温度 | 最大额定电流 | 最小输入电压 | 工作温度 | 海关税号 | 深度 | 宽度 | 长度 | 重量 | 关态电流（最大） | 输出电流 | SVHC | 附件类型 | 适用产品/相关产品 | 漏电流 | 输出数量 | 模拟输入/输出 | 输入失调电压（最大） | 有铅工艺兼容 | 测试温度 | 输入电阻 | 输出类型 | 输入偏置电流（最大） | 安装类型 | 系列 | 应用 | 频率 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 G4IDC5B Module; DC Input; 4 to 16 VDC; 45 mA (Max.); 0.05 ms; 0.1 ms; 5 VDC; 0 degC I/O MODULE G4 DIGITAL DC INPUT Module,DCInput;4to16VDC;45mA(Max.);0.05ms;0.1ms;5VDC;0degC Opto 22 | 20 | ¥90.00 | - | 4to16VDC | Digital | 4to16VDC | 5VDC | 1 | 4000V | 12mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 0.05ms | 0.1ms | 5VDC | 48.8mmL×12.2mmW×41.1mmH | ULRecognized,CSACertified,CEApproved | 4to16VDC | 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 G4IDC24 Module; DC Input; 10 to 32 VDC; 25 mA (Max.); 5 ms; 5 ms; 24 VDC; 0 degC; 70 d I/O MODULE G4 DIGITAL DC INPUT Module,DCInput;10to32VDC;25mA(Max.);5ms;5ms;24VDC;0degC;70d Opto 22 | 33 | ¥84.31 | - | 10to32VDC | Digital | 10to32VDC | 24VDC | 1 | 4000V | 18mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 5ms | 5ms | 5VDC | 48.8mmL×12.2mmW×41.1mmH | ULRecognized,CSACertified,CEApproved | 10to32VDC | 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

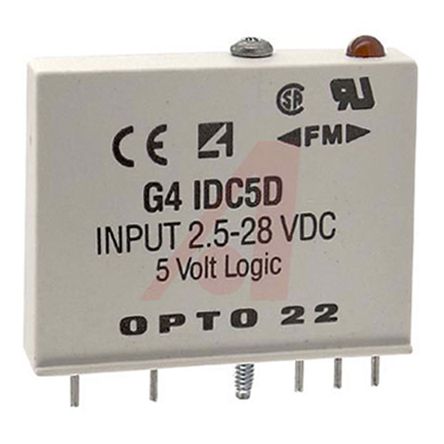

 G4IDC5D Module; DC Input; 2.5 to 28 VDC; 30 mA (Max.); 1 ms; 1.5 ms; 5 VDC; 0 degC; 70 I/O MODULE G4 DIGITAL DC INPUT MODULES, INPUT, DC, DIGITAL Module,DCInput;2.5to28VDC;30mA(Max.);1ms;1.5ms;5VDC;0degC;70 Opto 22 G4系列 PLC 输入/输出模块, 50（电流阱）mA, 2.5 → 28 V 直流, 48.8 x 12.2 x 41.1 mm Opto 22 | 32 | ¥83.09 | - | 2.5to28VDC | Digital | 2.5to28VDC | 5VDC | 1 | 4000V | 12mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 1ms | 1.5ms | 5VDC | 48.8mmL×12.2mmW×41.1mmH | ULRecognized,CSACertified,CEApproved | :28VDC | 70°C | :30mA | - | - | 85364110 | :41.1mm | :12.2mm | :48.8mm | 0.023 | - | - | :No SVHC (20-Jun-2013) | :G4 Digital DC Input Module | :OptoEMU Energy Management Systems | - | - | - | - | - | - | - | - | - | - | - | - | - |
 G4IDC15 Module; 50 mA; 15 VDC; 12 to 32 V; 25 mA; 5 ms; 5 ms; 15 VDC; 1 mA; 3 V; 100 muA I/O MODULE G4 DIGITAL DC INPUT I/O MODULE Module;50mA;15VDC;12to32V;25mA;5ms;5ms;15VDC;1mA;3V;100muA Opto 22 | 33 | ¥84.31 | - | 10to32VDC | :10 to 32VDC | 10to32VDC | :32VDC | 1 | 4000V | 15mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 5ms | 5ms | 15VDC | 48.8mmL×12.2mmW×41.1mmH | ULRecognized,CSACertified,CEMarked,NEMAApproved | 15VDC | +70°C | 50mA | 12to32V | - | 85364110 | - | - | - | 0.023 | 1mA | - | - | - | - | 100μA | :1 | :1 | 3V | :No | :No | - | - | - | - | - | - | - |
 G4IDC5G Module; DC Input; 35-60 VDC; 6Ma Max; 10 ms turn-on/off; 5VDC Module;DCInput;35-60VDC;6MaMax;10msturn-on/off;5VDC Opto 22 | 38 | ¥84.31 | - | 35to60VDC | Digital | 35to60VDC | 5VDC | 1 | 4000V | 12mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 10ms | 10ms | - | 48.8mmL×12.2mmW×41.1mmH | - | - | - | - | 35-60VDC35-60VAC | –30tp+70°C | - | - | - | - | - | μA | 12mA | - | - | - | - | - | - | - | - | - | 10kΩ | - | - | - | - | - | - |

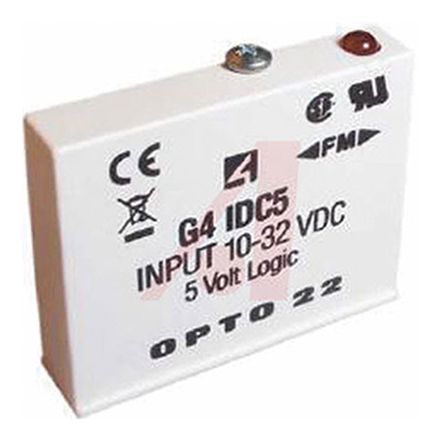

 G4IDC5 Module; DC Input; 10 to 32 VDC; 25 mA (Max.); 5 ms; 5 ms; 5 VDC; 0 degC; 70 de I/O MODULE G4 DIGITAL DC INPUT Module,DCInput;10to32VDC;25mA(Max.);5ms;5ms;5VDC;0degC;70de Opto 22 G4系列 PLC 输入/输出模块, 50（电流阱）mA, 10 → 32 V 直流，12 → 32 V 交流, 48.8 x 12.2 x 41.1 mm Opto 22 | 195 | ¥83.09 | - | 10to32VDC | Digital | 10to32VDC | 5VDC | 1 | 4000V | 12mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 5ms | 5ms | 5VDC | 48.8 x 12.2 x 41.1 mm | ULRecognized,CSACertified,CEApproved | 10to32VDC | 70°C | 50（电流阱）mA | - | 70°C | - | 41.1mm | 12.2mm | 48.8mm | - | - | - | - | - | - | - | - | - | - | - | - | - | 数字 | 25mA | PCB（印刷电路板）安装 | G4 | 限位开关，光电开关，接近开关，按钮，选择器开关，TTL 兼容设备 | - |
 G4IDC5MA Module; DC Input; 10 to 32 VDC; 25 mA (Max.); 5 ms; 5 ms; 5 VDC; 0 degC; 70 de Module,DCInput;10to32VDC;25mA(Max.);5ms;5ms;5VDC;0degC;70de Opto 22 | 17 | ¥159.19 | - | 10to32VDC | Digital | 10to32VDC | 5VDC | 1 | 4000V | 12mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 5ms | 5ms | 5VDC | 48.8mmL×12.2mmW×50.8mmH | ULRecognized,CSACertified,CEApproved | 10to32VDC | 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 G4IDC5K Module; DC Input; 2.5 to 16 VDC; 30 mA (Max.); 0.025 ms; 0.025 ms; 5 VDC; 0 deg I/O MODULE G4 DIGITAL DC INPUT Module,DCInput;2.5to16VDC;30mA(Max.);0.025ms;0.025ms;5VDC;0deg Opto 22 | 13 | ¥110.74 | - | 2.5to16VDC | Digital | 2.5to16VDC | 5VDC | 1 | 4000V | 12mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | 0.025ms | 0.025ms | 5VDC | 48.8mmL×12.2mmW×41.1mmH | ULRecognized,CSACertified,CEApproved | 2.5to16VDC | 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | ¥1,245.38 | - | 4to16VDC | Digital | 4to16VDC | 5VDC | 2 | 4000VAC | 60mA | PCB | DataAcquisition | Input | OpticalIsolation | G4Series | Backplane | - | - | 5VDC | - | - | - | - | - | 4-16VDC | –30to+70°C | - | - | - | - | - | - | 60mA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 12.5kHz |
