FB10S ffc / fpc 系列
Japan Aviation Electronics Industry, Ltd.表面安装式ffc/fpc连接器，间距为0.3mm，用于柔性电路连接
JAE公司的FB10S系列是一种表面贴装柔性扁平电缆（FFC）和柔性印刷电路（FPC）连接器系列，专为高密度、灵活电路连接设计。这些连接器特别适用于空间有限且灵活性至关重要的应用场合，例如便携式电子产品、可穿戴设备和医疗设备。如果您正在开发需要紧凑设计的项目，并要求使用细间距连接器，那么FB10S系列是一个不错的选择。0.3mm的间距允许密集布线，使其非常适合多层PCB组装，在这种情况下空间非常宝贵。值得一提的是，其坚固的设计确保即使在中等机械应力环境下也能可靠运行。当工程师们需要电缆到板连接中的灵活性、密度和可靠性相结合时，往往会选用这种连接器。由于其精准性和耐用性，这些连接器在对可靠性和寿命有严格要求的汽车应用中也非常受欢迎。

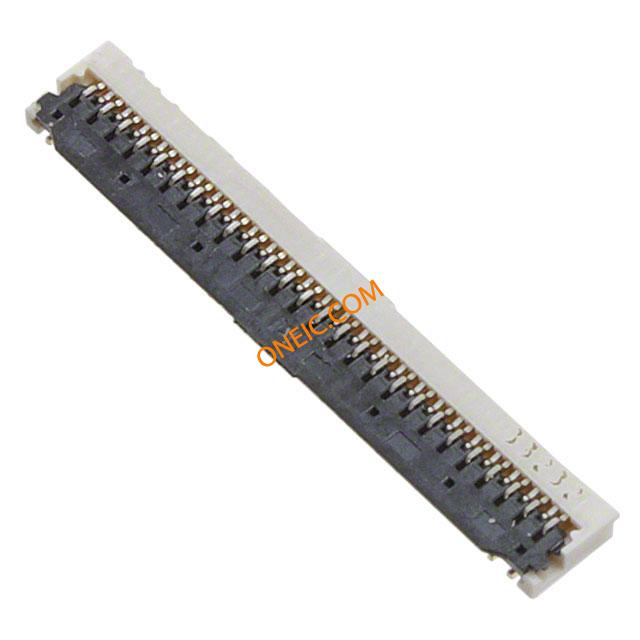

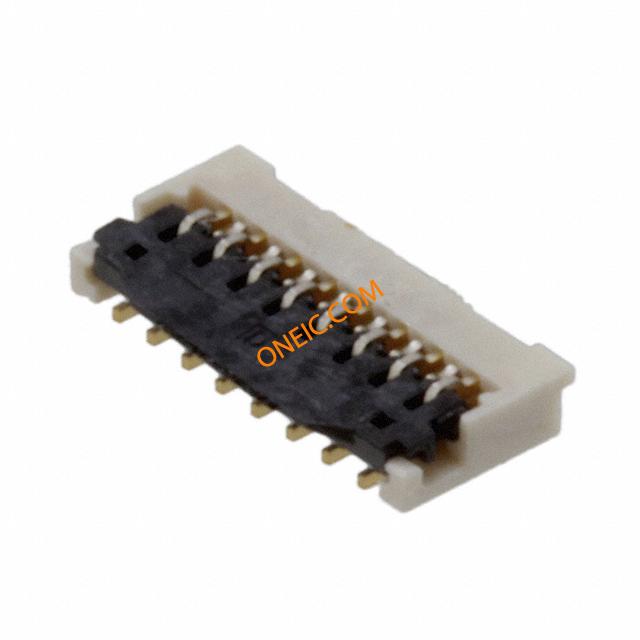

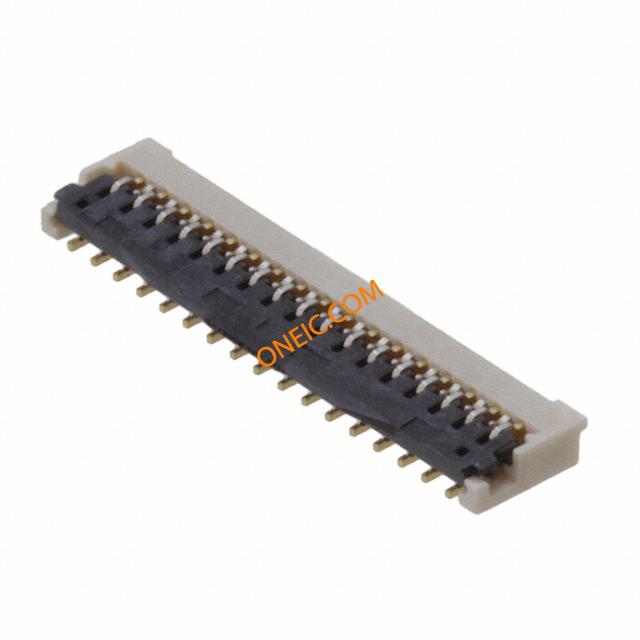

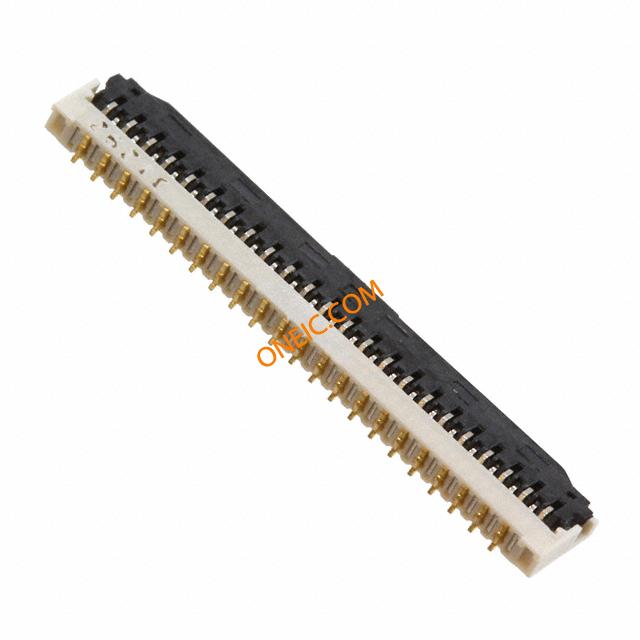

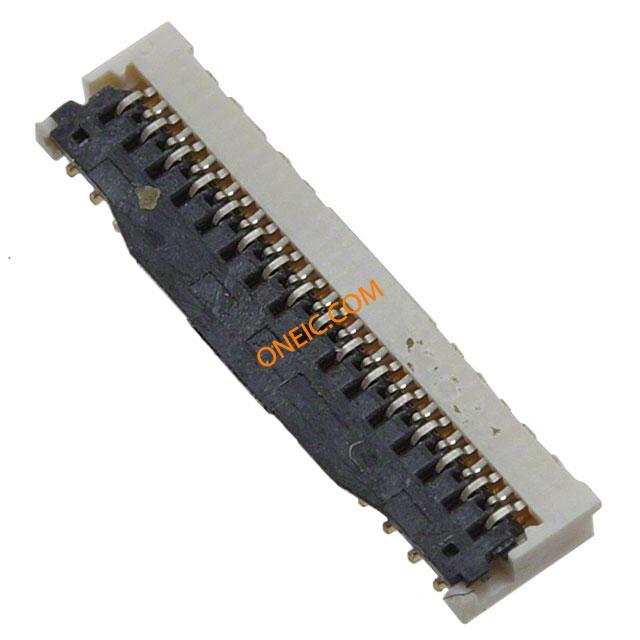

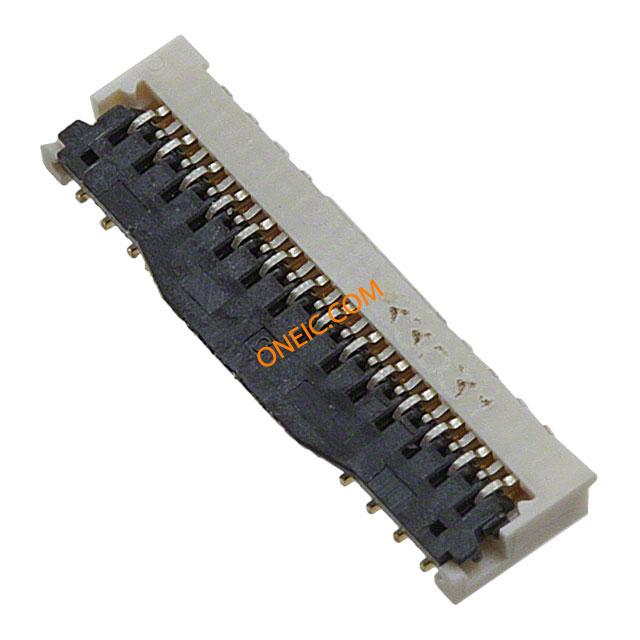

系列图片（7 张）
文档与媒体
常见问答
FB10S ffc / fpc - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 其他名称 | 标准包装数量 | RoHS | 额定电压 | 最大额定电流 | 间距 | 包装方式 | 端接方式 | 安装类型 | 电缆端类型 | 连接器类型 | 接触镀层 | 锁定特性 | 壳体材料 | FFC/FCB厚度 | 板面高度 | 位数 | 接触镀层厚度 | 产品特性 | 工作温度 | 触头材料 | 端接样式 | 触点数 | 开关驱动电平 | 典型触点布局 | 系列 | 产品子类型 | 温度范围 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FFC & FPC Connectors 15 POS FPC 0.3MM CONN FFC/FPC 0.3MM 15POS R/A SMD FPC0.3MM15POS JAE Electronics | 4529 | 1: ¥7.684 | - | 670-2661-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 15 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | - | - | - | - | - | - | - | - |
 FFC & FPC Connectors 41 POS FPC 0.3MM CONN FFC/FPC 0.3MM 41POS R/A SMD FPC0.3MM41POS JAE Electronics | 10 | 3760: ¥4.8756 | - | 670-2665-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 41 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | - | - | - | - | - | - | - | - |
 FFC & FPC Connectors 51 POS FPC 0.3MM CONN FFC/FPC 0.3MM 51POS R/A SMD FPC0.3MM51POS JAE Electronics | 208 | 1: ¥9.86 | - | 670-2667-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 51 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | - | - | - | - | - | - | - | - |
 CONN FFC/FPC 0.3MM 27POS R/A SMD FFC & FPC Connectors 27 POS FPC 0.3MM FPC0.3MM27POS JAE Electronics | 250 | 1: ¥7.208 | - | 670-2662-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 27 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | Copper Alloy | SMD | 27 | ZIF | Bottom Contact | FB10 | Board Mount | - 40 C to + 85 C |
 CONN FFC/FPC 0.3MM 33POS R/A SMD FFC & FPC Connectors 33 POS FPC 0.3MM FPC0.3MM33POS JAE Electronics | 10 | 3760: ¥4.2296 | - | 670-2664-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 33 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | - | - | - | - | - | - | - | - |
 CONN FFC/FPC 0.3MM 45POS R/A SMD FFC & FPC Connectors 45 POS FPC 0.3MM FPC0.3MM45POS JAE Electronics | 40 | 1: ¥9.316 | - | 670-2666-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 45 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | - | - | - | - | - | - | - | - |
 CONN FFC/FPC 0.3MM 61POS R/A SMD FFC & FPC Connectors 61 POS FPC 0.3MM FPC0.3MM61POS JAE Electronics | 6000 | 6000: ¥5.8568 | - | 670-2668-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 61 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | Copper Alloy | SMD | 61 | ZIF | Bottom Contact | FB10 | Board Mount | - 40 C to + 85 C |
 CONN FFC/FPC 0.3MM 31POS R/A SMD FFC & FPC Connectors 31 POS FPC 0.3MM FPC0.3MM31POS JAE Electronics | 10 | 3760: ¥4.1276 | - | 670-2663-2 | 6,000 | Lead free / RoHS Compliant | 50V | 0.350A | 0.012" (0.30mm) | Tape & Reel (TR) | Solder | Surface Mount, Right Angle | Tabbed | Bottom Contacts | Gold | Flip Lock | Plastic | 0.20mm | 0.036" (0.90mm) | 31 | 3.9µin (0.10µm) | Zero Insertion Force (ZIF) | -40°C ~ 85°C | Copper Alloy | SMD | 31 | ZIF | Bottom Contact | FB10 | Board Mount | - 40 C to + 85 C |
