cigen-DTC023

DTC023 transistor 系列

ROHM Co., Ltd.

NPN pre-biased digital transistors with built-in resistors, 50V

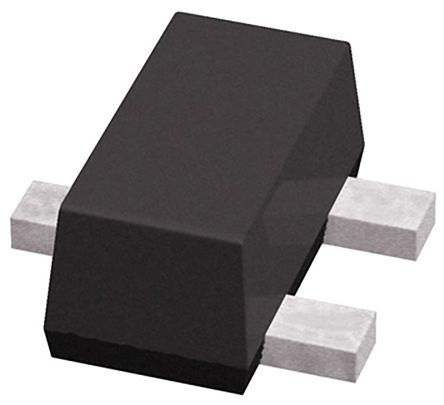

系列图片（4 张）

常见问答

内容由 AI 生成，仅供参考

加载中...

03

DTC023 transistor - 型号列表

共 9 个型号

制造商零件编号	库存	价格	产品类别	RoHS	额定电压	最大频率	晶体管类型	供电电压	基极电阻（R1）	平均正向功率	电阻匹配比	集电极截止电流（最大）	集电极脉冲电流 (Icm)	直流电流增益 hFE (最小) @ Ic, Vce	包装方式	安装样式	封装形式	系列	通道类型	制造商全称	配置	工作温度	最小起订量	单位包装	安装类型	最小输入电压	类型	元件数量	输入电阻	最大功耗	发射极-基极电阻（R2）	初始电阻（最小）	宽度	高度	长度	引脚数	包装数量	尺寸/外形	功能	每IC通道数
DTC023JEBTL Trans Digital BJT NPN 50V 100mA 3-Pin EMT3F T/R Transistor Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors rohm semiconductor	1575	¥0.11	-	RoHS Compliant	70 mV	250 MHz	NPN	50 V	2.2 kOhms	150 mW	21	100 mA	100 mA	80@5mA@10V	Reel	SMD/SMT	3EMT3F	DTC023JEB	Enhancement	ROHM Semiconductor	Single	-55 to 150 °C	9000	3000	Surface Mount	50 V	NPN	-	-	-	-	-	-	-	-	-	-	-	-	-
2 DTC023YUBTL Transistor ROHM NPN 数字晶体管, 0.1 A, Vce=50 V, 2.2 kΩ, 电阻比:4.5, 3针 SOT-323F封装 Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors ROHM	2860	¥0.18	-	RoHS Compliant	70 mV	250 MHz	NPN	50 V	2.2 kOhms	200 mW	4.5	0.1 A	100 mA	35	Reel	SMD/SMT	UMT-3	DTC023YUB	Enhancement	ROHM Semiconductor	Single	+150 °C	9000	3000	表面贴装	-	-	1	2.2 kΩ	200 mW	10kΩ	4.5	1.35mm	1mm	2.1mm	3	SOT-323F	2.1 x 1.35 x 1mm	Y	单
DTC023YMT2L TRANS PREBIAS NPN 50V VMT3 Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors Rohm Semiconductor	7300	¥0.14	-	RoHS Compliant	70 mV	250 MHz	NPN	50 V	2.2 kOhms	150 mW	4.5	100 mA	100 mA	35 at 5 mA at 10 V	Reel	SMD/SMT	VMT-3	DTC023YM	Enhancement	ROHM Semiconductor	Single	+ 150 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DTC023YEBTL TRANS PREBIAS NPN 50V EMT3F Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors Rohm Semiconductor	6000	¥0.11	-	RoHS Compliant	70 mV	250 MHz	NPN	50 V	2.2 kOhms	150 mW	4.5	100 mA	100 mA	35 at 5 mA at 10 V	Reel	SMD/SMT	EMT-3	DTC023YEB	Enhancement	ROHM Semiconductor	Single	+ 150 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DTC023EMT2L TRANS PREBIAS NPN 50V VMT3 Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors Rohm Semiconductor	8000	¥0.14	-	RoHS Compliant	80 mV	250 MHz	NPN	50 V	2.2 kOhms	150 mW	1	100 mA	100 mA	20 at 20 mA at 10 V	Reel	SMD/SMT	VMT-3	DTC023EM	Enhancement	ROHM Semiconductor	Single	+ 150 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DTC023EEBTL TRANS PREBIAS NPN 50V EMT3F Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors Rohm Semiconductor	1579	¥0.24	-	RoHS Compliant	80 mV	250 MHz	NPN	50 V	2.2 kOhms	150 mW	1	100 mA	100 mA	20 at 20 mA at 10 V	Reel	SMD/SMT	EMT-3	DTC023EEB	Enhancement	ROHM Semiconductor	Single	+ 150 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DTC023JMT2L TRANS PREBIAS NPN 50V VMT3 Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors Rohm Semiconductor	7900	¥0.14	-	RoHS Compliant	70 mV	250 MHz	NPN	50 V	2.2 kOhms	150 mW	21	100 mA	100 mA	80 at 5 mA at 10 V	Reel	SMD/SMT	VMT-3	DTC023JM	Enhancement	ROHM Semiconductor	Single	+ 150 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DTC023JUBTL TRANS PREBIAS NPN 50V UMT3F Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors Rohm Semiconductor	3000	¥0.18	-	RoHS Compliant	70 mV	250 MHz	NPN	50 V	2.2 kOhms	200 mW	21	100 mA	100 mA	80 at 5 mA at 10 V	Reel	SMD/SMT	UMT-3	DTC023JUB	Enhancement	ROHM Semiconductor	Single	+ 150 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
DTC023EUBTL TRANS PREBIAS NPN 50V UMT3F Bipolar Transistors - Pre-Biased NPN Digital Transtr w/built in resistors Rohm Semiconductor	2487	¥0.36	-	RoHS Compliant	80 mV	250 MHz	NPN	50 V	2.2 kOhms	200 mW	1	100 mA	100 mA	20 at 20 mA at 10 V	Reel	SMD/SMT	UMT-3	DTC023EUB	Enhancement	ROHM Semiconductor	Single	+ 150 C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
