DT100PW power misc 系列
TDK-Lambda Corporation各种电压输出的100W AC-DC电源适配器
TDK-Lambda Corporation 的 DT100PW 系列是一款提供 100W 交流转直流电源适配器的产品线，旨在为各种应用提供灵活的电源解决方案。这些适配器适用于需要稳定且受控直流电但不需要大量瓦数的应用项目。如果您正在从事小型电子项目、物联网设备或空间受限的应用，由于其紧凑的尺寸和多样的输出选项，这些适配器非常适合。
值得注意的是，输出电压具有很强的适应性。虽然具体范围未明确指出，但工程师通常会选择这一系列，以便在不需要时快速切换不同的电压要求，而无需储备多种电源供应。这种灵活性使它们非常适合原型制作或设计变更频繁的小批量生产。
另一个实用的应用场景是在教育环境或爱好者项目中。DT100PW 系列允许学生和爱好者测试电路和组件，而无需使用复杂的大型电源供应。它们还适用于需要高效性和紧凑性的小型传感器网络或嵌入式系统。系列产品的一致性能确保您的项目即使在不同负载条件下也能保持稳定和可预测。

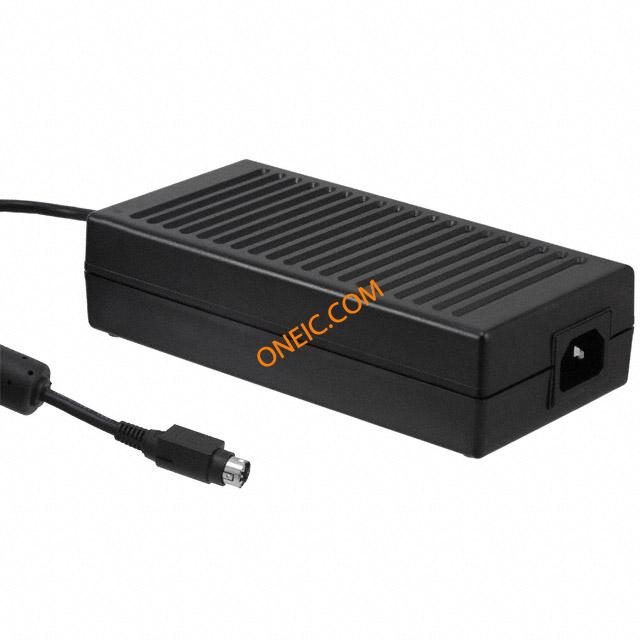

系列图片（8 张）
文档与媒体
常见问答
DT100PW power misc - 型号列表
共 8 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 标准包装数量 | RoHS | 效率 | 输出电流 | 输出数量 | 重量 | 安装样式 | 类型 | 工作温度 | 输出端 | 操作方式 | 输出功率 | 功率（瓦） | 额定输出功率 | 供电类型 | 最小输入电压 | 输出电流/通道 | 线缆长度 | 输出连接器 | 主要材料 | 连接器 - AC输入 | 外形 | 系列 | 产品特性 | 应用 | 制造商全称 | 配置 | 适用地区 | 应用领域 | 输出类型 | 额定电压 | 欧盟RoHS | 防护类型 | 认证机构标志 | 噪声 | 频率 | 最大功率 | 输入功率 | 电源调整率 | 负载调整率 | 上升/下降时间（典型） | 电流 - 非重复浪涌50/60Hz（Itsm） | 宽度 | 第一连接器 | 安装类型 | 总长度 | 连接器颜色 | 外壳尺寸-插件 | 样式 | 海关税号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 AC/DC Power Supply Single-OUT 24V 4.2A 100W Plug-In Adapter Single-OUT 24V 4.2A 100W Plug-In AC Adapters 100W 24V 4.2A TDK-Lambda Corporation | 0 | - | Bulk | RoHS Compliant | 75(Typ) % | 4.2 A | 1 | 2.094 lbs | Desktop | AC-DC Regulated | 0 to 40 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Fixed | 90 to 264 V | Compliant | Over Current|Over Voltage|Short C... | CSA/EN/UL | 1% | 47 to 63 Hz | 100 W | No | 1%(Typ) | 5%(Typ) | 10@115VAC | 50@115VAC | 105 | IEC Male | Desktop | 185 | Black | 60 | Desktop Adapter | - | |
AC/DC Power Supply Single-OUT 48V 2.1A 100W Plug-In Adapter Single-OUT 48V 2.1A 100W Plug-In AC Adapters 100W 48V 2.1A TDK-Lambda Corporation | 0 | - | Bulk | RoHS Compliant | 75(Typ) % | 2.1 A | 1 | 2.094 lbs | Desktop | AC-DC Regulated | 0 to 40 °C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Fixed | 90 to 264 V | Compliant | Over Current|Over Voltage|Short C... | CSA/EN/UL | 1% | 47 to 63 Hz | 100 W | No | 1%(Typ) | 5%(Typ) | 10@115VAC | 50@115VAC | 105 | IEC Male | Desktop | 185 | Black | 60 | Desktop Adapter | - | |
 AC-DC,ADAPTER,INPUT 115-230VAC,OUTPUT 12V 8.34A,100W PWR SUPPLY EXT 12V 8.34A 100W Plug-In AC Adapters 100W 12V 8.34A PowerSupply;AC-DC;12V@8.34A;90-264VIn;Enclosed;Desktop;PFC;DT-CSeries TDK-Lambda Corporation | 0 | - | 1 | RoHS Compliant | Level V | 8.34A | 1 | 1.6 lbs (725.7g) | Desktop | Commercial | 0°C ~ 40°C | 12VDC@8.34A | PFC | 100 W | 100.08W | 100W | Switching | 12V | 8.34 A | 41.34" (1.05m) | 4 Pin DIN | AC-DC | IEC 320-C14 | Desktop (3 Prong without Cord) | DT-C | OVP, SCP | Commercial | DT-CSeries | Enclosed | International | Commercial | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
AC-DC,ADAPTER,INPUT 115-230VAC,OUTPUT 24V 4.17A,100W PWR SUPPLY EXT 24V 4.17A 100W Plug-In AC Adapters 100W 24V 4.17A PowerSupply;AC-DC;24V@4.17A;90-264VIn;Enclosed;Desktop;PFC;DT-CSeries TDK-Lambda Corporation | 0 | - | 1 | RoHS Compliant | Level V | 4.17A | 1 | 1.6 lbs (725.7g) | Desktop | Commercial | 0°C ~ 40°C | 24VDC@4.17A | PFC | 100 W | 100.08W | 100W | Switching | 24V | 4.17 A | 41.34" (1.05m) | 4 Pin DIN | AC-DC | IEC 320-C14 | Desktop (3 Prong without Cord) | DT-C | OVP, SCP | Commercial | DT-CSeries | Enclosed | International | Commercial | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
AC-DC,ADAPTER,INPUT 115-230VAC,OUTPUT 16V 6.25A,100W PWR SUPPLY EXT 16V 6.25A 100W Desktop AC Adapters 100W 16V 6.25A PowerSupply;AC-DC;16V@6.25A;90-264VIn;Enclosed;Desktop;PFC;DT-CSeries TDK-Lambda Corporation | 0 | - | 1 | RoHS Compliant | Level V | 6.25A | 1 | 1.6 lbs (725.7g) | Desktop | Commercial | 0°C ~ 40°C | 16VDC@6.25A | PFC | 100 W | 100W | 100W | Switching | 16V | 6.25 A | 41.34" (1.05m) | 4 Pin DIN | AC-DC | IEC 320-C14 | Desktop (3 Prong without Cord) | DT | OVP, SCP | Commercial | DT-CSeries | Enclosed | International | Commercial | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
AC-DC,ADAPTER,INPUT 115-230VAC,OUTPUT 19V 5.27A,100W PWR SUPPLY EXT 19V 5.27A 100W Desktop AC Adapters 100W 19V 5.27A PowerSupply;AC-DC;19V@5.27A;90-264VIn;Enclosed;Desktop;PFC;DT-CSeries TDK-Lambda Corporation | 0 | - | 1 | RoHS Compliant | Level V | 5.27A | 1 | 1.6 lbs (725.7g) | Desktop | Commercial | 0°C ~ 40°C | 19VDC@5.27A | PFC | 100 W | 100.13W | 100W | Switching | 19V | 5.27 A | 41.34" (1.05m) | 4 Pin DIN | AC-DC | IEC 320-C14 | Desktop (3 Prong without Cord) | DT-C | OVP, SCP | Commercial | DT-CSeries | Enclosed | International | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
AC-DC,ADAPTER,INPUT 115-230VAC,OUTPUT 36V 2.78A,100W PWR SUPPLY EXT 36V 2.78A 100W Plug-In AC Adapters 100W 36V 2.78A PSU, EXT, PLUG-IN, 36V, 100W PowerSupply;AC-DC;36V@2.78A;90-264VIn;Enclosed;Desktop;PFC;DT-CSeries TDK-Lambda Corporation | 0 | - | 1 | RoHS Compliant | Level V | 2.78A | 1 | 1.6 lbs (725.7g) | Desktop | Commercial | 0°C ~ 40°C | 36VDC@2.78A | PFC | 100 W | 100.08W | 100W | Switching | 36V | 2.78 A | 41.34" (1.05m) | 4 Pin DIN | AC-DC | IEC 320-C14 | Desktop (3 Prong without Cord) | DT-C | OVP, SCP | Commercial | DT-CSeries | Enclosed | International | Commercial | :Fixed | :90VAC to 264VAC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 85044090 | |
AC-DC,ADAPTER,INPUT 115-230VAC,OUTPUT 48V 2.09A,100W PWR SUPPLY EXT 48V 2.09A 100W Plug-In AC Adapters 100W 48V 2.09A PowerSupply;AC-DC;48V@2.09A;90-264VIn;Enclosed;Desktop;PFC;DT-CSeries TDK-Lambda Corporation | 0 | - | 1 | RoHS Compliant | Level V | 2.09A | 1 | 1.6 lbs (725.7g) | Desktop | Commercial | 0°C ~ 40°C | 48VDC@2.09A | PFC | 100 W | 100.32W | 100W | Switching | 48V | 2.09 A | 41.34" (1.05m) | 4 Pin DIN | AC-DC | IEC 320-C14 | Desktop (3 Prong without Cord) | DT-C | OVP, SCP | Commercial | DT-CSeries | Enclosed | International | Commercial | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
