DSD-40BCD test & measurement 系列

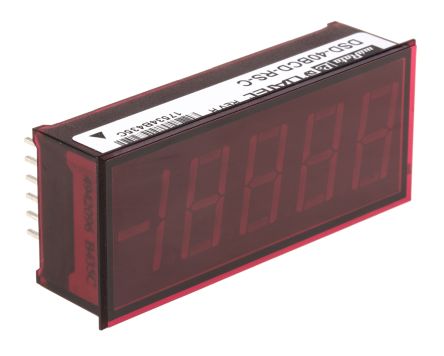

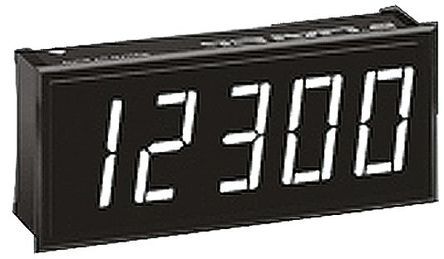

Murata Manufacturing Co., Ltd.4.5-digit LED panel meters for current and voltage measurement
系列图片（4 张）
常见问答
内容由 AI 生成，仅供参考
加载中...
03
DSD-40BCD test & measurement - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 交货时间 | 子类别 | 适用产品/相关产品 | 最小起订量 | 单位包装 | RoHS | 显示类型 | 供电电流 | 供电电压 | 宽度 | 包装方式 | 安装样式 | 封装形式 | 尺寸/外形 | 端接样式 | 系列 | 功能 | 设备类型 | 工作温度 | 标准包装数量 | 输出电流 | 峰值波长 | 最大功耗 | 颜色 | 深度 | 间距 | 横截面形状 | 数字/字母尺寸 | 测量制式 | 字符数 | 最高温度限值 | LED | 尺寸 | 外壳颜色 | 安装类型 | 总深度 | 位数 | 外缘宽度 | 安装高度（最大） | 色环数 | 段数 | 其他规格 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DSD-40BCD-RL-C SLAVE DISPLAY 4.5 DIG RED LED Digital Panel Meters 24pin Low-Power Red Mini 4 1/2 Digit LED murata power solutions | 67 | ¥160.92 | Digital Panel Meters | 84 Days | Misc Products | DSD-40BCD-RL | 12 | 12 | RoHS Compliant By Exemption | LED, 4.5 Digit, Red | 35 mA | 4.75 V to 5.25 V | 55 mm | Case | Panel, Board | 14 mm | 14 mm L x 55 mm W x 23 mm H | 24 Pin | DSD-40BCD | BCD Input | Display Readouts | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
DSD-40BCD-RS-C SLAVE DISPLAY 4.5 DIG RED LED 4.5 DIGIT, BCD DISPLAY RED Digital Panel Meters 24-pin Standard Red Mini 4 1/2 Digit LED Murata LED 数字面板式多功能表 DSD-40BCD-GS-C, 测量电流、电压 murata power solutions | 66 | ¥152.83 | Digital Panel Meters | 38 Days | Misc Products | DSD-40BCD-RS | 12 | 12 | Lead free / RoHS Compliant | 7-Segment | 85 mA | 5V | 55 mm | Case | Panel, Board | 24-DIP | 0.920" H x 2.170" W x 0.560" D (23.37mm x 55.12mm x 14.22mm) | 24 Pin | DSD-40BCD | BCD Input | Display Readouts | 0°C | 12 | 85mA | 635nm | 175mW | Red | 20.57mm | 53.8mm | 22.3mm | 0.52" (13.20mm) | 电流，电压 | 4.5 | +70°C | - | - | - | - | - | - | - | - | - | - | - |
DSD-40BCD-GS-C SLAVE DISPLAY 4.5 DIG GRN LED Digital Panel Meters 24pin Standard Green Mini 4 1/2 Digit LED Murata Power Solutions 4.5位 7段 绿色 LED 数码管, 右侧小数点 murata power solutions | 10 | ¥169.6 | Digital Panel Meters | 84 Days | Misc Products | DSD-40BCD-GS | 12 | 12 | RoHS Compliant | LED, 4.5 Digit, Green | 100 mA | 4.75 V to 5.25 V | 55 mm | Case | Panel, Board | 14 mm | 14 mm L x 55 mm W x 23 mm H | 24 Pin | DSD-40BCD | BCD input | Display Readouts | +70°C | - | - | - | - | - | - | - | - | - | - | - | - | 绿色 | 55.12 x 23.37 x 14.22mm | 黑色 | 面板安装 | 23.37mm | 4.5 | 55.12mm | 14.22mm | 右侧 | 7 | 是 |
| 0 | - | 112 Days | Misc Products | DSD-40BCD-RL-C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
DSD-40BCD-GS Murata Power Solutions Inc. | 0 | - | 112 Days | Misc Products | DSD-40BCD-GS-C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
DSD-40BCD-RS Murata Power Solutions Inc. | 0 | - | 112 Days | Misc Products | DSD-40BCD-RS-C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
