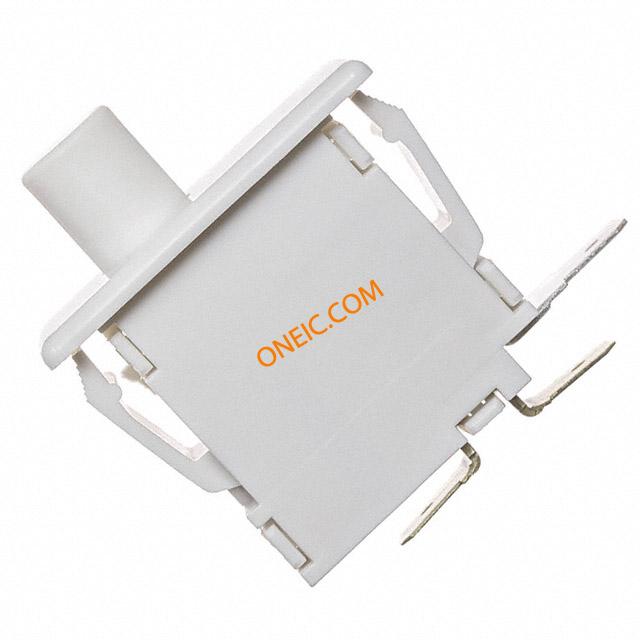

DS1F5 switche 系列
C&K Components, Inc.SPDT pushbutton switches for low-current applications, various actuator styles
系列图片（7 张）
常见问答
DS1F5 switche - 型号列表
共 9 个型号| 制造商零件编号 | 库存 | 价格 | 产品类别 | 最小起订量 | 单位包装 | 标准包装数量 | RoHS | 电路 | 额定电压 | 开关功能 | 最大额定电流 | 电容比测试条件 | 颜色 | 形状 | 宽度 | 高度 | 长度 | 包装方式 | 超行程 | 触点形式 | 致动器类型 | 安装类型 | 接触镀层 | 安装样式 | 操作力 | 壳体材料 | 端接样式 | 系列 | 产品特性 | 电气寿命 | 工作高度 | 工作温度 | 标准 | 操作方式 | 端接方式 | 位数 | 类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DS1F5AQ1 SWITCH DOOR SPDT 0.1A MOM SHORT Pushbutton SW DOOR SPDT 0.1A MOM SHORT 125V Pushbutton Switches SPDT 0.1A 125/250Vac Short Button Q.C. Switch,pushbtn;Interlock;SPDT,Mom;0.1A125VAC;Shortact;Snap-inmnt;0.18in.QC C&K Components | 25 | ¥37.97 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.125" (3.2mm) | SPDT | Round (Pin Plunger) | Panel Mount, Snap-In | Gold over Silver | Panel | 425gf | Polyamide (PA) | Quick Connect - 0.187" (4.7mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.350" (8.9mm) | -40°C ~ 85°C | ULCSA | Momentary | QCTabs | 2 | Interlock |
DS1F5AQ2 SWITCH DOOR SPDT 0.1A MOM SHORT Pushbutton SW DOOR SPDT 0.1A MOM SHORT 125V Pushbutton Switches SPDT 0.1A 125/250Vac Short Button Q.C. C&K Components | 250 | ¥18.36 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.125" (3.2mm) | SPDT | Round (Pin Plunger) | Panel Mount, Snap-In | Gold over Silver | Panel | 425gf | Polyamide (PA) | Quick Connect - 0.187" (4.7mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.350" (8.9mm) | -40°C ~ 85°C | - | - | - | - | - |
DS1F5AQ3 SWITCH DOOR SPDT 0.1A MOM SHORT Pushbutton SW DOOR SPDT 0.1A MOM SHORT 125V Pushbutton Switches SPDT 0.1A 125/250Vac Short Button Q.C. Switch,pushbtn;Interlock;SPDT,Mom;0.1A125VAC;Shortact;Snap-inmnt;0.25in.QC C&K Components | 140 | ¥18.36 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.125" (3.2mm) | SPDT | Round (Pin Plunger) | Panel Mount, Snap-In | Gold over Silver | Panel | 425gf | Polyamide (PA) | Quick Connect - 0.250" (6.3mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.350" (8.9mm) | -40°C ~ 85°C | ULCSA | Momentary | QCTabs | 2 | Interlock |
 DS1F5BQ1 SWITCH DOOR SPDT 0.1 A MOM LONG Pushbutton SW DOOR SPDT 0.1 A MOM LONG 125V Pushbutton Switches SPDT 0.1A 125/250Vac Long Button Q.C. C&K Components | 45 | ¥18.79 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.398" (10.1mm) | SPDT | Round (Pin Plunger) | Panel Mount, Snap-In | Gold over Silver | Panel | 425gf | Polyamide (PA) | Quick Connect - 0.187" (4.7mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.770" (19.5mm) | -40°C ~ 85°C | - | - | - | - | - |
DS1F5BQ2 SWITCH DOOR SPDT 0.1 A MOM LONG Pushbutton SW DOOR SPDT 0.1 A MOM LONG 125V Pushbutton Switches SPDT 0.1A 125/250Vac Long Button Q.C. C&K Components | 191 | ¥18.07 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.398" (10.1mm) | SPDT | Round (Pin Plunger) | Panel Mount, Snap-In | Gold over Silver | Panel | 425gf | Polyamide (PA) | Quick Connect - 0.187" (4.7mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.770" (19.5mm) | -40°C ~ 85°C | - | - | - | - | - |
DS1F5BQ3 SWITCH DOOR SPDT 0.1 A MOM LONG Pushbutton SW DOOR SPDT 0.1 A MOM LONG 125V Pushbutton Switches SPDT 0.1A 125/250Vac Long Button Q.C. C&K Components | 100 | ¥28.73 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.398" (10.1mm) | SPDT | Round (Pin Plunger) | Panel Mount, Snap-In | Gold over Silver | Panel | 425gf | Polyamide (PA) | Quick Connect - 0.250" (6.3mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.770" (19.5mm) | -40°C ~ 85°C | - | - | - | - | - |
 DS1F5CQ1 SWITCH DR SPDT 0.1A MOM/PULLOUT Pushbutton SW DR SPDT 0.1A MOM/PULLOUT 125V Pushbutton Switches SPDT 0.1A 125/250Vac PullOut Button Q.C. Switch,pushbtn;SPDT,Push(Mom)Pull;0.1A125VAC;Shortact;Snap-inmnt;0.18in.QC C&K Components | 135 | ¥19.73 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.520" (13.2mm) | SPDT | Push-Pull Plunger | Panel Mount, Snap-In | Gold over Silver | Panel | 385gf | Polyamide (PA) | Quick Connect - 0.187" (4.7mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.660" (16.76mm) | -40°C ~ 85°C | ULCSA | Momentary/Pull | QCTabs | 3 | Interlock |
DS1F5CQ2 SWITCH DR SPDT 0.1A MOM/PULLOUT Pushbutton SW DR SPDT 0.1A MOM/PULLOUT 125V Pushbutton Switches SPDT 0.1A 125/250Vac PullOut Button Q.C. C&K Components | 194 | ¥19.73 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.520" (13.2mm) | SPDT | Push-Pull Plunger | Panel Mount, Snap-In | Gold over Silver | Panel | 385gf | Polyamide (PA) | Quick Connect - 0.187" (4.7mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.660" (16.76mm) | -40°C ~ 85°C | - | - | - | - | - |
DS1F5CQ3 SWITCH DR SPDT 0.1A MOM/PULLOUT Pushbutton SW DR SPDT 0.1A MOM/PULLOUT 125V Pushbutton Switches SPDT 0.1A 125/250Vac PullOut Button Q.C. Switch,pushbtn;SPDT,Push(Mom)Pull;0.1A125VAC;Shortact;Snap-inmnt;0.25in.QC C&K Components | 635 | ¥18.94 | - | 100 | 1 | 1 | Lead free / RoHS Compliant | SPDT | 125V | On-On-Mom | 100mA (AC) | White | White | Rectangular | 17.3 mm | 26.6 mm | 31.75 mm | Bulk | 0.520" (13.2mm) | SPDT | Push-Pull Plunger | Panel Mount, Snap-In | Gold over Silver | Panel | 385gf | Polyamide (PA) | Quick Connect - 0.250" (6.3mm) | DS | Reliable snap action mechanism | 50,000 Cycles | 0.660" (16.76mm) | -40°C ~ 85°C | ULCSA | Momentary/Pull | QCTabs | 3 | Interlock |
